Technology Cold Pressing Sintered 5" 125mm Diamond Circular Segmented Disc for Dry/Wet

Technology Cold Pressing Sintered 5" 125mm Diamond Circular Segmented Disc for Dry/Wet
Technology Cold Pressing Sintered 5" 125mm Diamond Circular Segmented Disc for Dry/Wet Technology Cold Pressing Sintered 5" 125mm Diamond Circular Segmented Disc for Dry/Wet Technology Cold Pressing Sintered 5" 125mm Diamond Circular Segmented Disc for Dry/Wet Technology Cold Pressing Sintered 5" 125mm Diamond Circular Segmented Disc for Dry/Wet Technology Cold Pressing Sintered 5" 125mm Diamond Circular Segmented Disc for Dry/Wet Technology Cold Pressing Sintered 5" 125mm Diamond Circular Segmented Disc for Dry/Wet

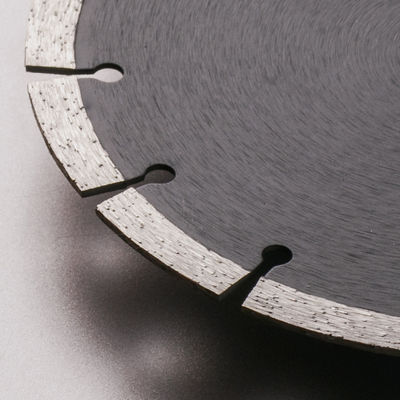

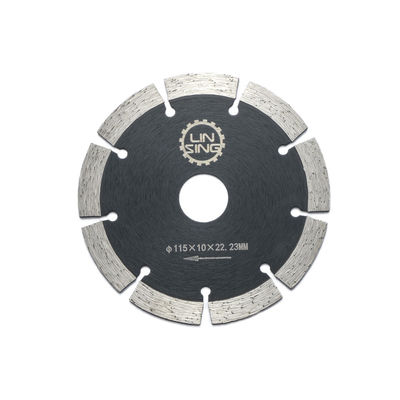

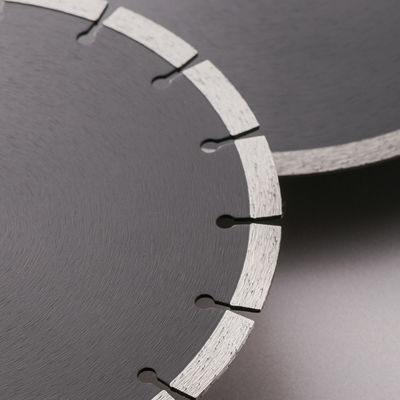

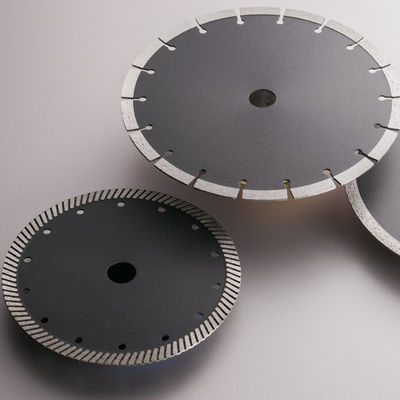

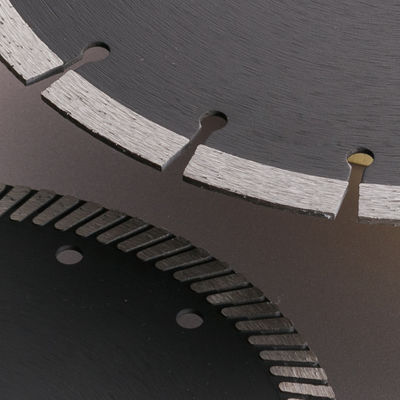

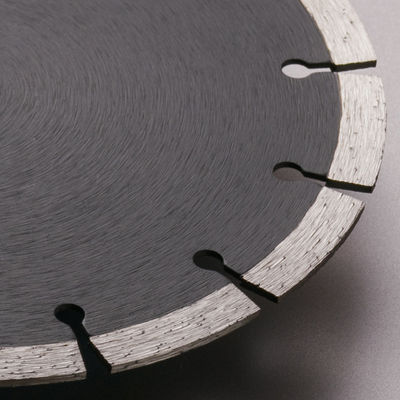

Large Image :  Technology Cold Pressing Sintered 5" 125mm Diamond Circular Segmented Disc for Dry/Wet

Product Details:
Place of Origin: Jiangxi, China
Brand Name: Linsing
Model Number: Segmented cutting disc
Payment & Shipping Terms:
Minimum Order Quantity: 10 pieces
Price: $8.68/pieces 10-99 pieces
Packaging Details: The inner packaging is plastic film and the outer packaging is carton. If the customer orders a large quantity, it will be packed in wooden cases and wooden frames.
Supply Ability: 10000 Piece/Pieces per Day Dia.105-230 diamond circular saw blade
Contact Now

Technology Cold Pressing Sintered 5" 125mm Diamond Circular Segmented Disc for Dry/Wet

Description
Warranty: None Blade Thickness: 0.014in, 0.02in, 0.018in, 0.025in, 0.008-0.012in
Blade Width: 3/4IN, 1/2in, 5/8in, 3/8in, 1/8IN, 1/4in, 3/16in, Other Arbor Size: 7/8IN, 10mm, 5/8in, Other
Teeth Per Inch: 10, 24, Other Teeths: Other
Blade Length: 6in, 6 1/2in, 10in Blade Diameter: 4-9in
Edge Height: 0.315in(8mm), 0.472in(12mm) Process Type: HOT PRESS, Cold PRESS
Customized Support: OEM, ODM, OBM Finishing: CrN
Size: 105-230mm Grade: Industrial
Product Name: Dry Cutting Disc Application: Brick, Masonry, Concrete, Wall Etc.
Usage: Cutting Tile Advantage: High Efficiency
Material: Diamond Powder+Alloy Steel Machine: Manual Handling Cutting Machine
Color: Customized Color Type: Mini Saw Blade
Technology: Cold Pressing Sintered Teeth Type: Segmented
Port: Shanghai, Shenzhen, Ningbo, Xiamen, Etc

Segmented Cutting Disc For Dry Cut

Segmented saw blade (dry use) is a very common diamond tool, which is mainly used to cut hard materials on the construction site, and is mainly used to cut stone, ceramic tile, ceramic, asphalt, reinforced concrete, brick and other materials The product has the characteristics of strong portability and cost-effective.

Product feature:
1. Fast cutting speed and small cutting gap to reduce stone waste.
2. Long lifespan, no chipping and stable cutting performance.
3. Dry and wet cutting are available.
4. High quality control for safety.
Product specification:

Diameter
(inch/mm)

Steel Core Thickness
(mm)

Born(mm)

Segment No(pcs)

Φ4”/105

20×1.8×10

20/22.23/25.4

8

Φ4.5/”115

20×1.8×10

20/22.23/25.4

9

Φ5”/125

20×2.0×10

20/22.23/25.4

10

Φ6”/150

20×2.0×10

20/22.23/25.4

10

Φ7”/180

20×2.2×10

20/22.23/25.4

14

Φ8”/200

20×2.2×10

20/22.23/25.4

14

Φ9”/230

20×2.4×10

20/22.23/25.4

16

Other specifications are available upon request.
