Small Cutting Slot Diamond Wire Saw for Marble Mining Quarrying A-Grade Performance

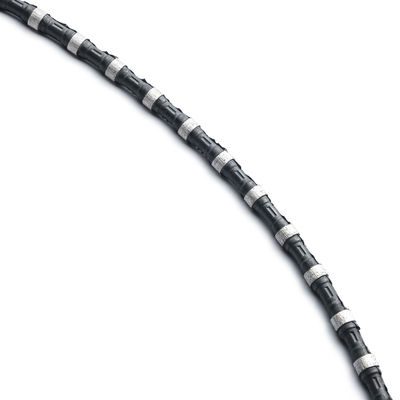

Large Image : Small Cutting Slot Diamond Wire Saw for Marble Mining Quarrying A-Grade Performance

Product Details:

Place of Origin:	Jiangxi, China
Brand Name:	LINSING
Certification:	TUV
Model Number:	D11.5mm

Payment & Shipping Terms:

Minimum Order Quantity:	50 meters
Price:	$30.00/meters 50-199 meters
Packaging Details:	The inner packaging is plastic film and the outer packaging is carton. If the customer orders a large quantity, it will be packed in wooden cases and wooden frames.
Supply Ability:	50000 Piece/Pieces per Day Dia.250-450 diamond circular saw blade

Contact Now

Small Cutting Slot Diamond Wire Saw for Marble Mining Quarrying A-Grade Performance

Description

Warranty:	None	Customized Support:	OEM, ODM, OBM
Assembing Method:	Rubber+Spring+Diamond	Beads No:	37/40 Pcs/m
Feature:	High Cutting Efficiency	Quality:	Small Cutting Slot
Advantage:	Strong Flexibility	Application:	For Marble Cutting
Grade:	A-Grade	Machine:	Diamond Wire Saw Machine, Multi Wire Saw Machine
Cutting Type:	With Water Wet Vertical Cutting	Port:	Shanghai, Shenzhen, Ningbo, Xiamen, Etc

Diamond Wire Saw For Block Squaring

The smaller bead size of the trimming wire saw reduces stone waste Squaring wire saws are mostly injection-molded wire saws with a smooth surface, which can make the surface of the block after trimming smoother.

Product feature:
1. Good sharpness and long life, low noise and eco-friendly.
2. Stable quality control for excellent cutting performance, high cost-effective.
3. Suitable for cutting all kind stone.
Product specification for granite:

Diameter (mm)	Bead No. (pcs/m)	Reinforcement	Usage
D11.0	40/37	Plastic/Plastic+Spring	Granite/Quartz Squaring

Cutting Material	Line speed (m/s)	Efficiency (m²/h)	Life (m²/m)
Class1-2	28-30	1.6-2.2	12-22
Class3-4	28-30	1.0-1.5	10-18
Class5	26-28	0.5-1.0	6-12

Product specification for marble/limestone:

Diameter (mm)	Bead No. (pcs/m)	Reinforcement	Usage
D11.0	40/37	Plastic/Plastic+Spring	Marble/Limestone Squaring

Cutting Material	Line speed (m/s)	Efficiency (m²/h)	Life (m²/m)
Class1-2	30-40	2.0-3.0	20-50
Class3-4	28-31	1.5-2.0	14-35
Class5	26-30	1.0-1.5	8-20

Other specifications are available upon request

Small Cutting Slot Diamond Wire Saw for Marble Mining Quarrying A-Grade Performance 0
