1200mm Single Blade Volcanic Stone Segment Diamond Disc Cutter Tool for Smooth Cutting

Large Image : 1200mm Single Blade Volcanic Stone Segment Diamond Disc Cutter Tool for Smooth Cutting

Product Details:

Place of Origin:	Jiangxi, China
Brand Name:	Linsing
Model Number:	G78592

Payment & Shipping Terms:

Minimum Order Quantity:	160 pieces
Price:	$1.05/pieces 160-4999 pieces
Packaging Details:	waterproof and damage-proof standard packaging<br>carton box with Linsing logo<br>as the customer's requirement

Contact Now

1200mm Single Blade Volcanic Stone Segment Diamond Disc Cutter Tool for Smooth Cutting

Description

Warranty:	None	Customized Support:	OEM, ODM
Application:	Volcanic Stone Cutting	Raw Material:	Metal Powder+Diamond
Quality:	Fast Cutting	Keywords:	Single Blade Volcanic Segment
Main Market:	South Asia.Indonesia; Mexico	Logo:	Linsing
Advantage:	Long Lifespan And Fast Cutting	Size:	247.6/8.415mm
Shape:	M Shape	Structure:	Layer

Product Description

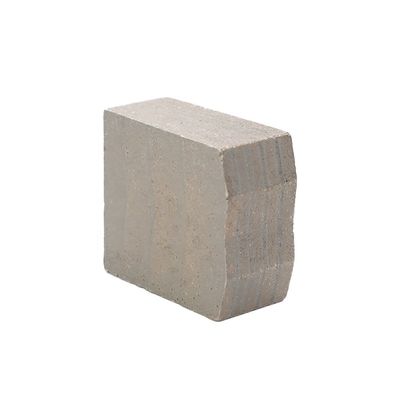

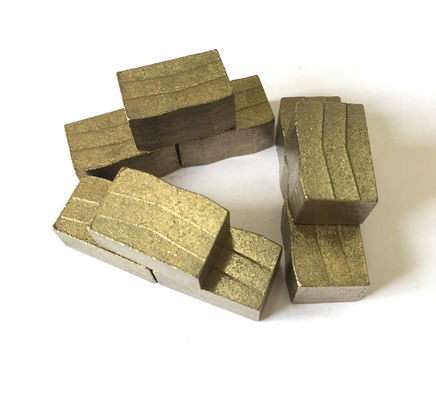

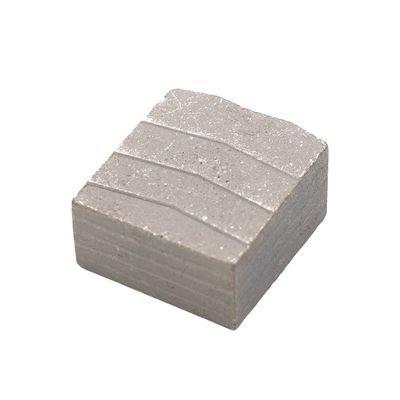

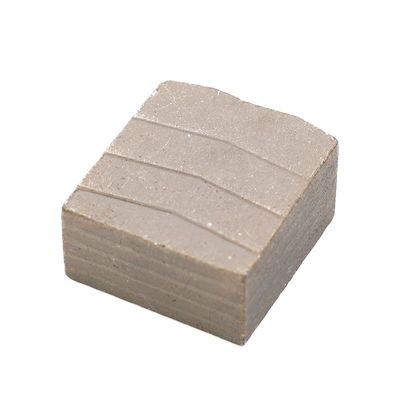

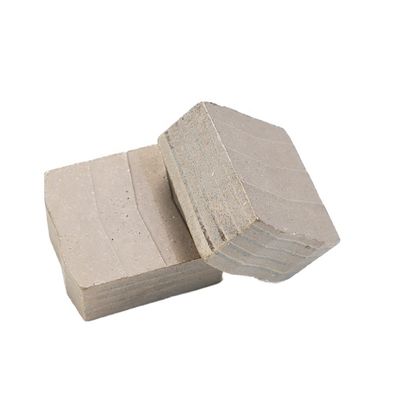

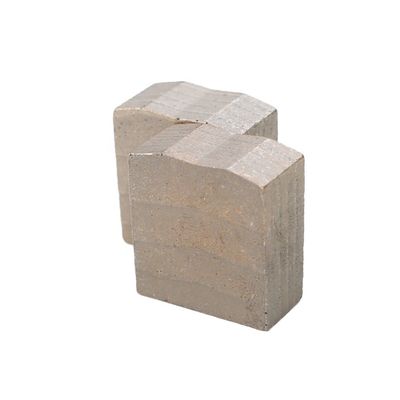

Lavastone Cutting Segment
Lavastone cutting segments can be produced for cutting lava stone, they are always manufactured in sandwich and layer design. No matter what the shape, the aim is to obtain a good cooling and easy flush away the chipping. Diamonds and bonds in the outer and inner layers are carefully designed to ensure cutting stability.

Product Features:
1. Good sharpness and high efficiency without chipping.
2. Strict QC for stable cutting perfor

Diameter (mm)	Steel Core (mm)	Segment Size	Segment Number
Φ300	2.2	40×3.2×10	22
Φ350	2.4	40×3.4×10	25
Φ400	2.6	40×3.6×10	29
Φ450	2.8/3.0	40×4.0×10	32
Φ500	3.0/3.2	40×4.2×10	36
Φ600	3.6/3.8	40×4.8×10	42
Φ700	4	40×5.2×10	42
Φ800	4.5	40×6.0×10	46/57
Φ900	5	24×7.5×8(10,12)	64
Φ1000	5	24×7.5×8(10,12)	70
Φ1200	5.5	24×8.5×8(10,12)	80
Φ1300	6	24×8.5×8(10,12)	88
Φ1400	6.5	24×9.0×8(10,12)	92
Φ1600	7.2	24×9.5×8(10,12)	108
Φ1800	7.5	24×10.0×8(10,12)	120
Φ2000	8	24×10.5×8(10,12)	128
Φ2200	9	24×11.0×8(10,12)	132
Φ2500	9	24×11.0×8(10,12)	140
Φ3000	9.5	24×12.0×8(10,12)	160

mance.
3. Long lifespan and stable performance.
4. Segment is easy to open.
5. Good balance assures excellent grinding effect.
