8.3mm Diamond Profiling Wire Rope for Squaring Cutting of Granite and Marble

Large Image : 8.3mm Diamond Profiling Wire Rope for Squaring Cutting of Granite and Marble

Product Details:

Place of Origin:	Jiangxi, China
Brand Name:	LINSING
Model Number:	Diamond profiling wire saw

Payment & Shipping Terms:

Minimum Order Quantity:	17 meters
Price:	$17.00/meters >=17 meters
Packaging Details:	The inner packaging is plastic film and the outer packaging is carton. If the customer orders a large quantity, it will be packed in wooden cases and wooden frames.
Supply Ability:	500 Meter/Meters per Day

Contact Now

8.3mm Diamond Profiling Wire Rope for Squaring Cutting of Granite and Marble

Description

Warranty:	None	Customized Support:	OEM, ODM, OBM
Product Name:	Diamond Profiling Wire Saw	Application:	Stone Cutting
MOQ:	17 Meters	Feature:	High Performance Cutting
Diameter:	8.3mm Bead With 33pcs Beads Per Meter	Packing:	Carton Packing
Quality:	High-quality	Service:	After-sales Service
Shipping:	FEDEX UPS EMS DHL TNT SEA	Payment:	TT; WESTERN UNION
Port:	Shanghai, Shenzhen, Ningbo, Xiamen, Etc

Diamond Wire Saw For Block Squaring
Plastic Injection diamond wire is now generally used in most granite processing units for block squaring purposes. The wire allows significantly greater sawing heights than large discs.

The smaller bead size of the trimming wire saw reduces stone waste Squaring wire saws are mostly injection-molded wire saws with a smooth surface, which can make the surface of the block after trimming smoother.

Product feature:
1. Good sharpness and long life, low noise, and eco-friendly.
2. Stable quality control for excellent cutting performance, high cost-effective.
3. Suitable for cutting all kind of stone.
Product specification for granite:

Diameter (mm)	Bead No. (pcs/m)	Reinforcement	Usage
D9.0	37	Plastic	Granite/ Quartz
D8.3	37	Plastic	Granite/ Quartz

Cutting Material	Line Speed(m/s)	Efficiency(m²/h)	Life(m²/m)
Class1-2	28-30	1.6-2.2	12-22
Class3-4	28-30	1.0-1.5	10-18
Class5	26-28	0.5-1.0	6-12

Product specification for marble/limestone:

Diameter (mm)	Bead No. (pcs/m)	Reinforcement	Usage
D9.0	37	Plastic	Marble/ Limestone

Cutting Material	Line Speed(m/s)	Efficiency(m²/h)	Life(m²/m)
Soft	30-40	2.0-3.0	20-50
Medium	28-31	1.5-2.0	14-35
Hard	26-30	1.0-1.5	8-20

Other specifications are available upon request.

Product Description

8.3mm Diamond Profiling Wire Rope for Squaring Cutting of Granite and Marble 0

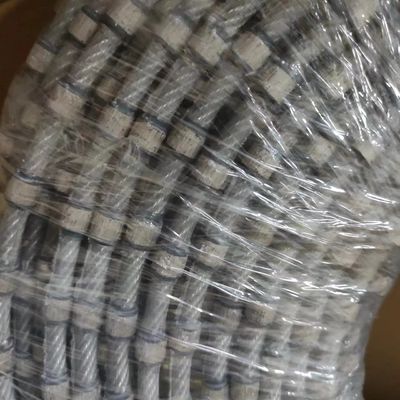

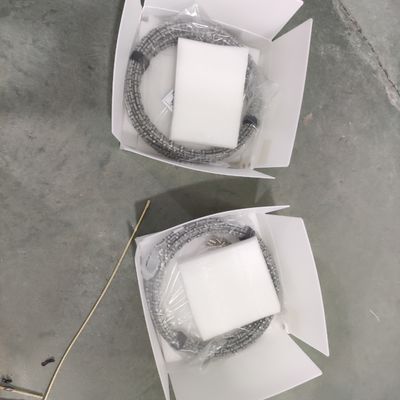

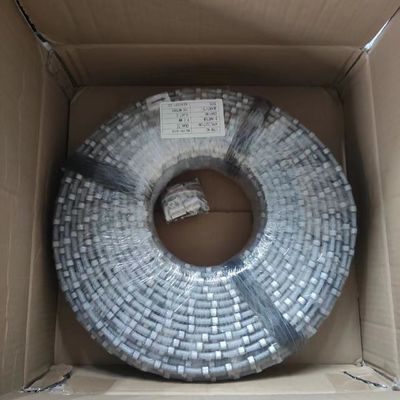

Packaging & Shipping

8.3mm Diamond Profiling Wire Rope for Squaring Cutting of Granite and Marble 11

Linxing products

8.3mm Diamond Profiling Wire Rope for Squaring Cutting of Granite and Marble 13
