Customized Diamond Segments for Marble Block Splitting Stone Cutting Segment Blades

Large Image : Customized Diamond Segments for Marble Block Splitting Stone Cutting Segment Blades

Product Details:

Place of Origin:	Jiangxi, China
Brand Name:	LINXING
Certification:	CE,ISO900

Payment & Shipping Terms:

Minimum Order Quantity:	150 pieces
Price:	$0.85/pieces >=150 pieces
Packaging Details:	Packing for diamond segment <br>carton box, sealing tape, wooden carton or as the customer's requirement
Supply Ability:	150000 Piece/Pieces per Week diamond segments

Contact Now

Customized Diamond Segments for Marble Block Splitting Stone Cutting Segment Blades

Description

Customized Support:	OEM, ODM, OBM	Product Name:	Diamond Segments
Material:	Diamond Powder	Machine:	Saw Blade Machine
Application:	Cutting Tool Parts For Marble	Feature:	Fast Cutting Speed
MOQ:	150pcs	Service:	Customized Service
Quality:	Good Cutting Quality	Size:	40810mm
Port:	Shenzhen, Guangzhou, Shanghai, Xiamen, Etc.

Product Description

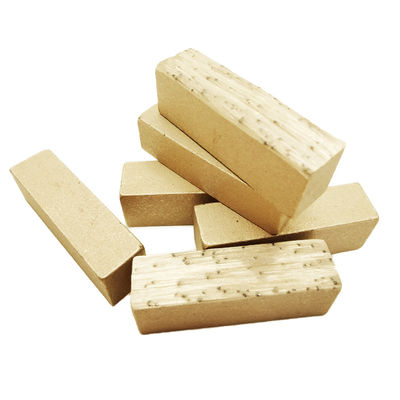

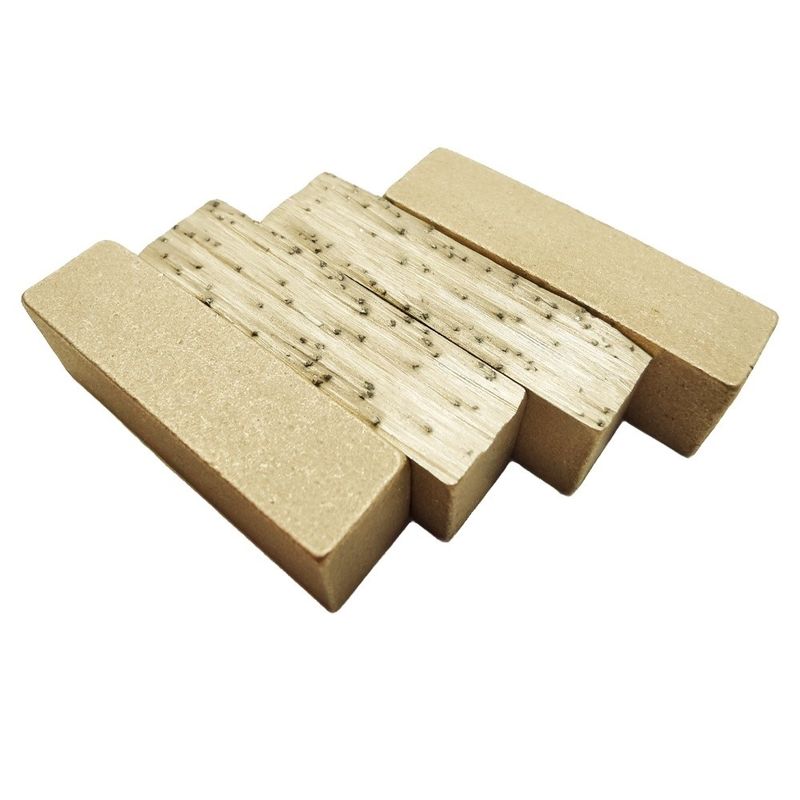

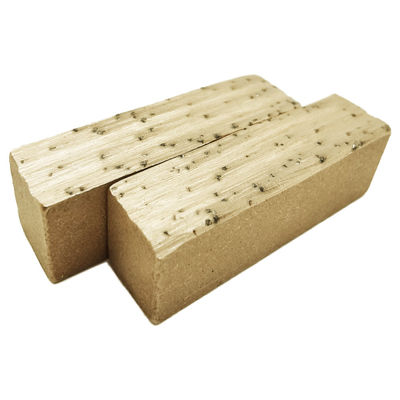

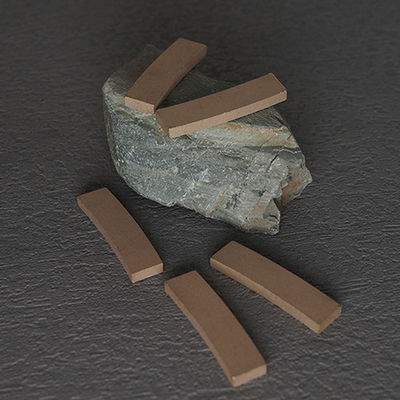

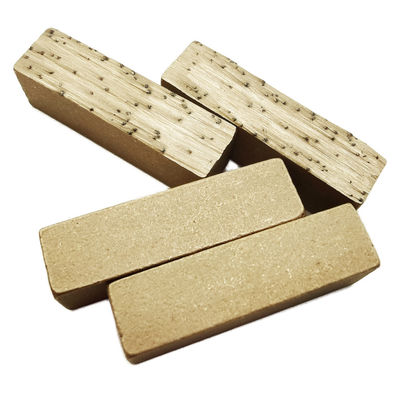

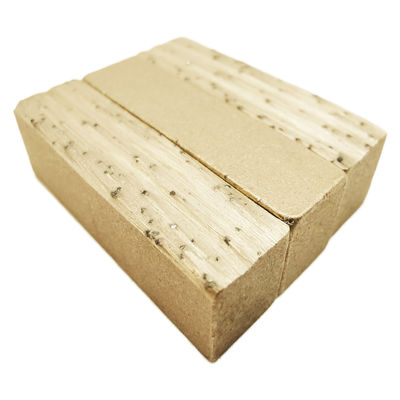

Marble segment is a diamond metal bond saw tips used on circular saw blade to cut marble. it is made of synthetic diamond plus different matrix or metal bonds in different ratio of metal powders. metal bond and diamond density will be somehow different as per different color and hardness of stone and stone cutting machine.

Cutting in high speed without chipping.
Long life span and stable cutting performance.
smooth cutting, flat surface and even size cutting result.
Good segment shape easy for diamond opening
Strict product quality inspection processes

High cost-effective

Blade Diameter(inch/mm)	Steel Core Thickness(mm)	Segment Specification(mm)	Segment No.(pcs)
Φ12”/300	2.2	42/40x3.2x8(10,12,15)	22
Φ14”/350	2.2/2.4	42/40x3.4x8(10,12,15)	25
Φ16”/400	2.6	42/40x3.6x8(10,12,15)	29
Φ18”/450	2.8/3.0	40x4x8(10,12,15)	32
Φ20”/500	3.0/3.2	40x4.2x8(10,12,15)	35
Φ24”/600	3.6/3.8	40x5x8(10,12,15)	42
Φ28”/700	4	40x5.2x8(10,12,15)	50
Φ32”/800	4.5	40x6x8(10,12,15)	57
Φ36”/900	5.0	24x7.5x8(10,12,13,15)	64
Φ40”/1000	5.0	24x7.5x8(10,12,13,15)	70
Φ48”/1200	5.5	24x8.0x8(10,12,13,15)	80
Φ52”/1300	6.0	24x8.5x8(10,12,13,15)	88
Φ56”/1400	6.5	24x9.0x8(10,12,13,15)	92
Φ64”/1600	7.2	24x9.2x8(10,12,13,15)	108
Φ72”/1800	7.5	24x10x8(10,12,13,15)	120
Φ80”/2000	8.0	24x10.5x8(10,12,13,15)	128
Φ88”/2200	8.0/9.0	24x11x8(10,12,13,15)	132
Φ100”/2500	9.0	24x11x8(10,12,13,15)	140
Φ120”/3000	9.5	24x12x8(10,12,13,15)	160
Φ140”/3500	9.5	24x12x8(10,12,13,15)	180

Saw blade segment for block cutting can be well used in both single saw blade and multi saw blade. Our technicians will help adjust the segments to the ideal status.

Customized Diamond Segments for Marble Block Splitting Stone Cutting Segment Blades 0

Something You Must Know

1. What is the diamond segment?

Diamond segments are the function parts of a metal-bonded diamond tool. The metal-bonded diamond tool can be a metal-bonded diamond blade, a diamond grinding cup wheel, a diamond core drill bit, a diamond gang saw blade, etc. The diamonds of a metal-bonded diamond tool are all in the tool's diamond segments to play their role of cutting or grinding.

2. How to Choose the diamond segment?

The features of the diamond segments on a diamond tool should match the nature of the material to be cut. If the material is hard, the bond of the diamond segments should be softer. Because diamonds are apt to become blunt when cutting hard material. The softer bond can be worn down with the blunt diamonds faster, and then make new diamonds beneath be more easily exposed to participate in cutting. If the material is relatively softer, the bond should be harder. For in this case diamonds can last longer. The harder bond wears slower, so that it can hold the diamonds also longer. This can make better use of the diamonds and prolong the diamond tool's service life.

We provide the profesional cutting solution according to the stones, the machines and your requirement. Please don't hesitate to contact us !
