14 Inch Diamond Cutting Blade For Glass V Groove Granite With Industrial Grade Teeths

14 Inch Diamond Cutting Blade For Glass V Groove Granite With Industrial Grade Teeths
14 Inch Diamond Cutting Blade For Glass V Groove Granite With Industrial Grade Teeths 14 Inch Diamond Cutting Blade For Glass V Groove Granite With Industrial Grade Teeths 14 Inch Diamond Cutting Blade For Glass V Groove Granite With Industrial Grade Teeths 14 Inch Diamond Cutting Blade For Glass V Groove Granite With Industrial Grade Teeths 14 Inch Diamond Cutting Blade For Glass V Groove Granite With Industrial Grade Teeths 14 Inch Diamond Cutting Blade For Glass V Groove Granite With Industrial Grade Teeths

Large Image :  14 Inch Diamond Cutting Blade For Glass V Groove Granite With Industrial Grade Teeths

Product Details:
Place of Origin: Fujian, China
Brand Name: Linsing
Certification: CE.ISO9001:2008, TUV
Model Number: Granite Cutting Saw Blades
Payment & Shipping Terms:
Minimum Order Quantity: 10 pieces
Price: $58.00/pieces 10-99 pieces
Packaging Details: The inner packaging is plastic film and the outer packaging is carton. If the customer orders a large quantity, it will be packed in wooden cases and wooden frames.
Supply Ability: 1000 Piece/Pieces per Day Dia.250-450 diamond circular saw blade
Contact Now

14 Inch Diamond Cutting Blade For Glass V Groove Granite With Industrial Grade Teeths

Description
Warranty: None Blade Thickness: 0.014in, 0.032in, 0.05in, 0.02in, 0.018in, 0.025in, 0.012in
Blade Width: 1 1/2IN, 5/8in, 3/8in, 1/8IN, 1/4in, 3/16in, Other Arbor Size: 7/8IN, 10mm, 5/8in, No
Teeth Per Inch: No Teeths: No
Blade Length: No Blade Diameter: 250-500mm
Edge Height: 0.315in(8mm) Process Type: HOT PRESS, High Frequency Welded, Laser Welded, Cold PRESS, Grind
Customized Support: OEM, ODM, OBM Finishing: Ti-coated
Size: Dia:250-3500mm Grade: Industrial
Product Name: Diamond Saw Cutting Blade Application: For Granite,Marble,Sandstone,Limestone Quarrying
Material: Diamond Powder+65Mn Steel Usage: Wet
Feature: High Speed.Straight Smooth Edge Quality: Top Quality
Machine: Bridge Cutting Machine Teeth Type: Short-T, R, M And Arc Shape
Arbor Hole Size: 16/22.23/25.4/50/100mm Port: Shanghai, Shenzhen, Ningbo, Xiamen, Etc

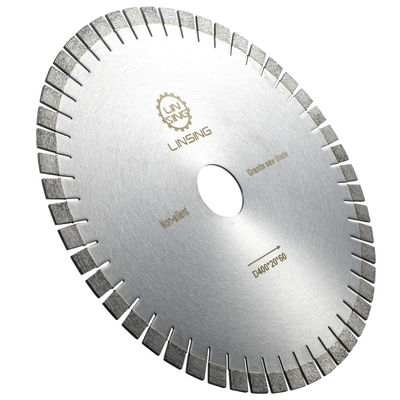

Diamond Saw Blade For Granite

Linsing granite cutting saw blade is a diamond tool for cutting granite, it has the characteristics of high sharpness, good wear resistance and long lifespan.

Products features:
1. Good sharpness, high efficiency and long lifespan.
2. Smooth cutting without chipping.
3. Stable cutting and high cost-effective.
4. Silent and non-silent blade are available.
Product specification:

Blade Diameter(inch/mm)

Steel Core Thickness(mm)

Segment Specification(mm)

Segment No.(pcs)

Φ12”/300

2.2

40x3.2x10(12,15,20)

21

Φ14”/350

2.2/2.4

40x3.2x10(12,15,20)

24

Φ16”/400

2.6

40x3.6x10(12,15,20)

28

Φ18”/450

2.8/3.0

40x4x10(12,15,20)

32

Φ20”/500

3.0/3.2

40x4x10(12,15,20)

36

Φ24”/600

3.6/3.8

40x5x10(12,15,20)

42

Φ28”/700

4

40x5.2x10(12,15,20)

50

Φ32”/800

4.5

40x6x10(12,15,20)

46

Φ36”/900

5.0

24x7.0/6.2x15(13,20)

64

Φ40”/1000

5.0

24x7.0/6.2x15(13,20)

70

Φ48”/1200

5.5

24x7.4/6.6x15(13,20)

80

Φ52”/1300

6.0

24x8.0/7.2x15(13,20)

88

Φ56”/1400

6.5

24x8.4/7.6x15(13,20)

92

Φ64”/1600

7.2

24x9.2/8.4x15(13,20)

108

Φ72”/1800

7.5

24x10.0/9.2x15(13,20)

120

Φ80”/2000

8.0

24x10.6/9.8x15(13,20)

128

Φ88”/2200

8.0/9.0

24x11.0/10.2x15(13,20)

132

Φ100”/2500

9.0

24x11.4/10.6x15(13,20)

140

Φ120”/3000

9.5

24x12.4/11.6x15(13,20)

160

Φ140”/3500

9.5

24x12.4/11.6x15(13,20)

180

Other specifications are available upon request.
