Blade Width 1/8IN Marble Stone Slab Cutting Circular Saw 6 1/2in for Masonry Cutting

Large Image : Blade Width 1/8IN Marble Stone Slab Cutting Circular Saw 6 1/2in for Masonry Cutting

Product Details:

Place of Origin:	Jiangxi, China
Brand Name:	Linsing
Certification:	ISO9001:2008
Model Number:	silent saw blade

Payment & Shipping Terms:

Minimum Order Quantity:	100 pieces
Price:	$32.50/pieces 100-999 pieces
Packaging Details:	as the customer's requirement
Supply Ability:	200000 Piece/Pieces per Month Marble cutting blade

Contact Now

Blade Width 1/8IN Marble Stone Slab Cutting Circular Saw 6 1/2in for Masonry Cutting

Description

Warranty:	None	Blade Thickness:	0.014in, 0.013in
Blade Width:	3/8in, 1/8IN, 1/4in, 3/16in	Arbor Size:	7/8IN, 10mm, 5/8in
Teeth Per Inch:	10, 24	Teeths:	140, 144, 25
Blade Length:	6in, 6 1/2in, 10in	Blade Diameter:	12in, 14in
Edge Height:	0.315in(8mm), 0.472in(12mm)	Process Type:	HOT PRESS, High Frequency Welded, Laser Welded, Cold PRESS
Customized Support:	OEM, ODM, OBM	Finishing:	Nitride
Size:	D350mm	Grade:	Industrial
Product Name:	Diamond Saw Cutting Blade	Application:	Marble
Usage:	Wet	Advantage:	High Efficiency
Material:	65Mn+Diamond	Feature:	Longer Service Life
Package:	Inner Box + Outer Carton	Color:	Sliver
Machine:	Bridge Machine	Port:	Xiamen/Shenzhen/Guangzhou/Shanghai/Ningbio

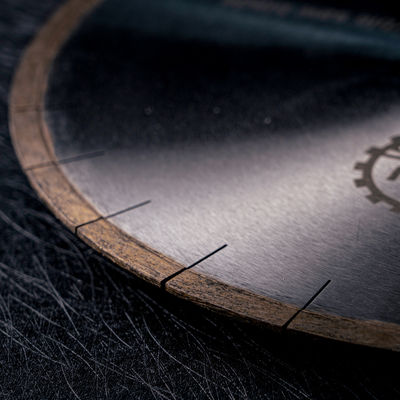

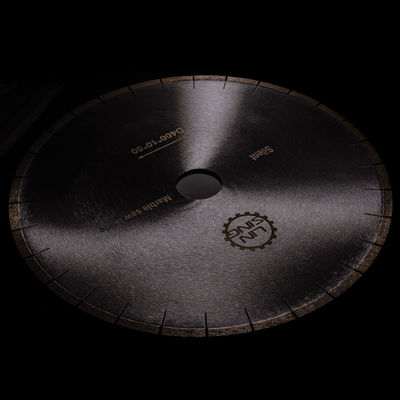

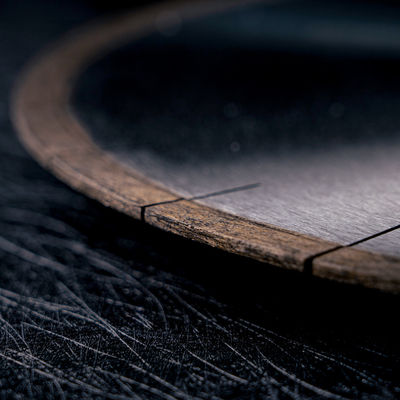

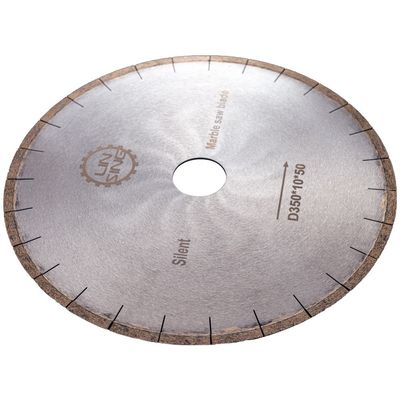

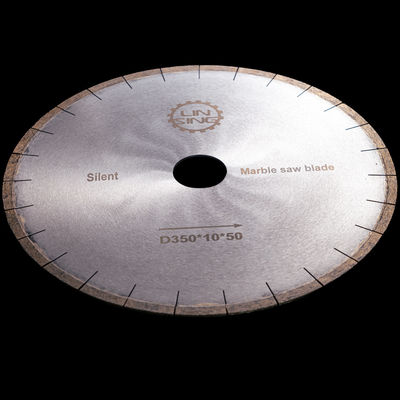

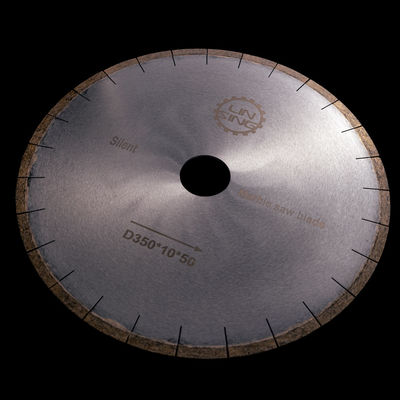

Diamond Saw Blade For Marble

Marble saw blade is a kind of diamond tool used for marble cutting It has the characteristics of long life and good continuity, used on saw blade for cutting block and slab.

Product features:
1. Cutting in high speed without chipping.
2. Strict quality inspection, long lifespan.
3. Stable cutting performance, high cost-effective.
4. Silent and non-silent blade are available.
Production specification:

Blade Diameter(inch/mm)	Steel Core Thickness(mm)	Segment Specification(mm)	Segment No.(pcs)
Φ12”/300	2.2	42/40x3.2x8(10)	22
Φ14”/350	2.2/2.4	42/40x3.4x8(10)	25
Φ16”/400	2.6	42/40x3.6x8(10)	29
Φ18”/450	2.8/3.0	40x4x8(10)	32
Φ20”/500	3.0/3.2	40x4.2x8(10)	36
Φ24”/600	3.6/3.8	40x5x8(10)	42
Φ28”/700	4	40x5.2x8(10)	50
Φ32”/800	4.5	40x6x8(10)	57
Φ36”/900	5.0	24x7.5x8(10,12,13,15)	64
Φ40”/1000	5.0	24x7.5x8(10,12,13,15)	70
Φ48”/1200	5.5	24x8.0x8(10,12,13,15)	80
Φ52”/1300	6.0	24x8.5x8(10,12,13,15)	88
Φ56”/1400	6.5	24x9.0x8(10,12,13,15)	92
Φ64”/1600	7.2	24x9.2x8(10,12,13,15)	108
Φ72”/1800	7.5	24x10x8(10,12,13,15)	120
Φ80”/2000	8.0	24x10.5x8(10,12,13,15)	128
Φ88”/2200	8.0/9.0	24x11x8(10,12,13,15)	132
Φ100”/2500	9.0	24x11x8(10,12,13,15)	140
Φ120”/3000	9.5	24x12x8(10,12,13,15)	160
Φ140”/3500	9.5	24x12x8(10,12,13,15)	180

Other specifications are available upon request.
