Blade Diameter 105-230mm Teeth Protection Diamond Cutting Discs for Industrial Grade

Large Image : Blade Diameter 105-230mm Teeth Protection Diamond Cutting Discs for Industrial Grade

Product Details:

Place of Origin:	Jiangxi, China
Brand Name:	LINSING
Model Number:	Turbo Type Protection Teeth Cutting Disc

Payment & Shipping Terms:

Minimum Order Quantity:	20 pieces
Price:	$5.41/pieces 20-99 pieces

Contact Now

Blade Diameter 105-230mm Teeth Protection Diamond Cutting Discs for Industrial Grade

Description

Blade Thickness:	0.014in	Blade Width:	5/8in
Arbor Size:	7/8IN, 5/8in	Teeth Per Inch:	1
Teeths:	10	Blade Length:	Other
Blade Diameter:	105-230mm	Edge Height:	0.315in(8mm), 0.472in(12mm)
Process Type:	HOT PRESS, High Frequency Welded	Customized Support:	OEM, ODM, OBM
Finishing:	Ti-coated	Size:	D125MM
Grade:	Industrial, A-Grade	Product Name:	Turbo Type Protection Teeth Cutting Disc
Material:	Diamond Powder+Alloy Steel	Application:	For Granite Cutting
Usage:	Dry Cutting	Feature:	High-efficiency Cutting
Keywords:	Stone Cutting Diamond Disc	Color:	Customized Color
Service:	ODM OEM Customized	Shape:	Circular Round Saw Blade

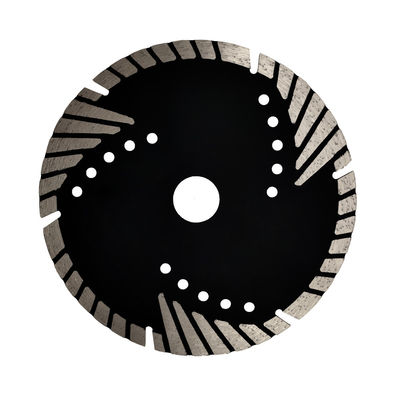

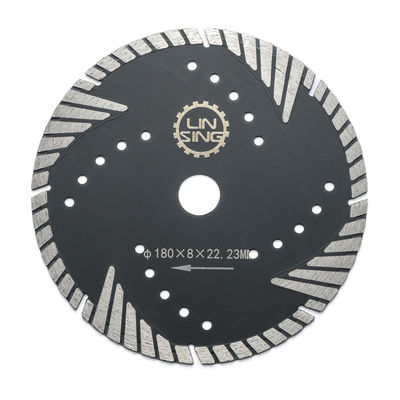

Turbo Type Protection Teeth Cutting Disc

Turbo type protection teeth cutting disc is a special kind of saw blade. Compared with the general turbo cutting disc, it has a more stable structure, and its cutting ability and stability have been greatly improved, and safer to use.

Product Feature:
1. Fast cutting speed with long lifespan;
2. Deep segments for under-cut protection for processing abrasive materials;
3. Special vented steel core to have better heat dissipation and remove slurry;
4. Strict quality control for stable performance.

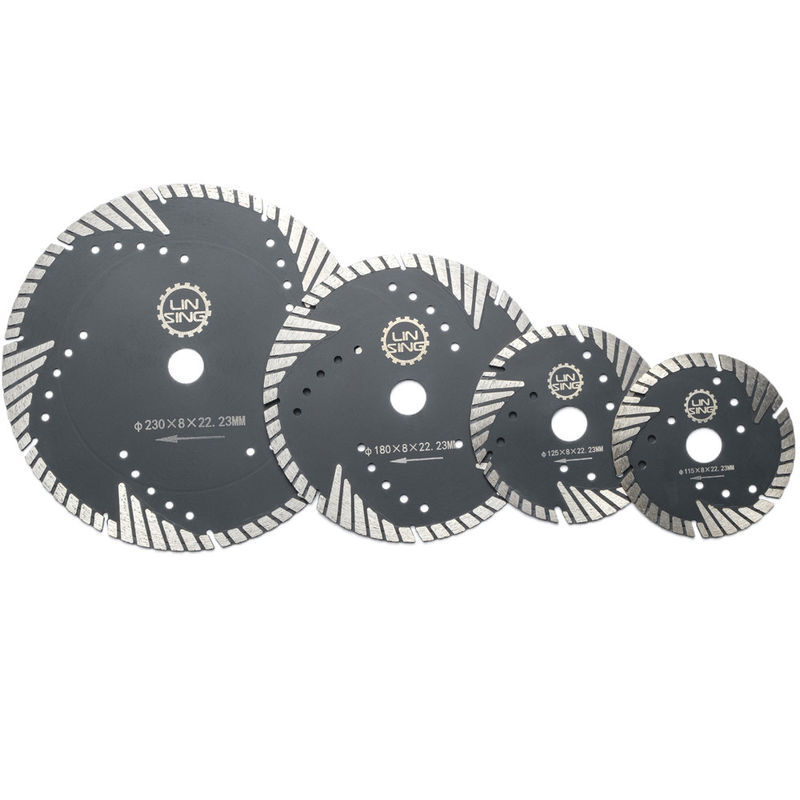

Product Specification:

Diameter(inch/mm)	Steel Core Thickness(mm)	Born(mm)
Φ4”/105	1.8×8.0	20/22.23/25.4
Φ4.25”/110	1.8×8.0	20/22.23/25.4
Φ4.5”/115	1.8×8.0	20/22.23/25.4
Φ5”/125	2.0×8.0	20/22.23/25.4
Φ6”/150	2.2×8.0	20/22.23/25.4
Φ7”/180	2.4×8.0	20/22.23/25.4
Φ8”/200	2.6×8.0	20/22.23/25.4
Φ9”/230	2.8×8.0	20/22.23/25.4

Other specifications are available upon request.
