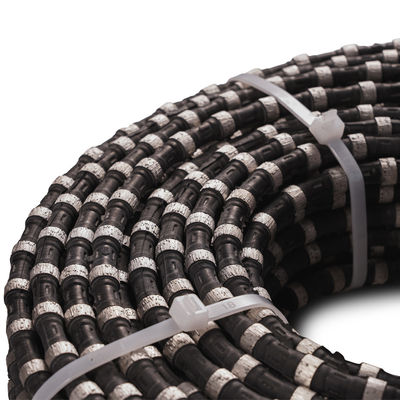

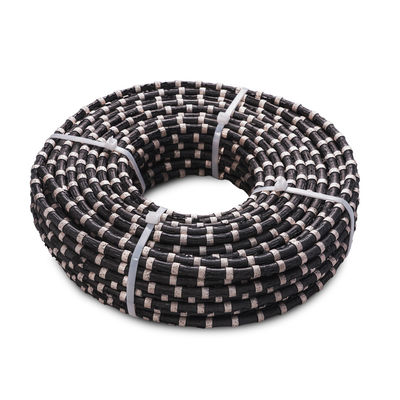

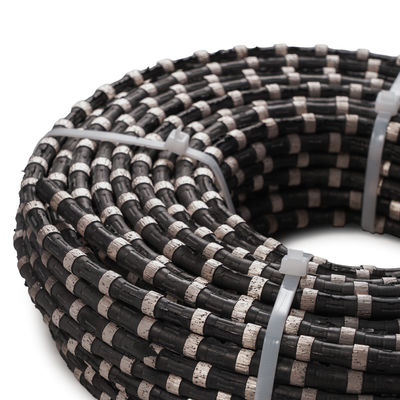

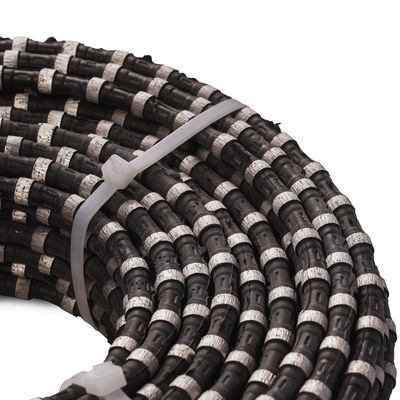

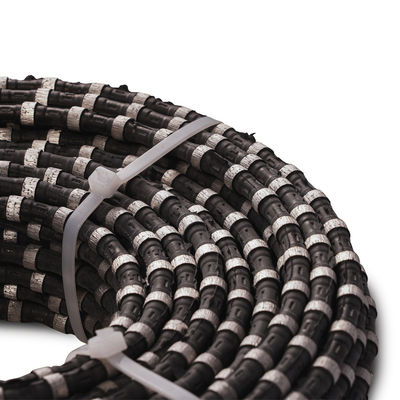

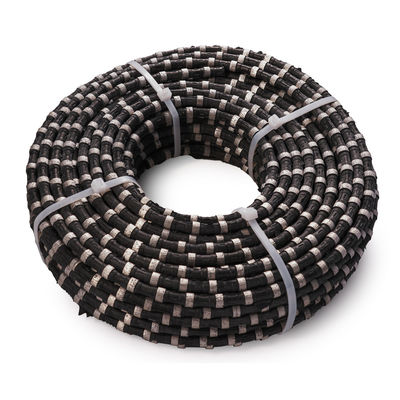

Steel Rubber Diamond Wire Saw for Cutting of Reinforced Concrete Granite Marble Stone

Steel Rubber Diamond Wire Saw for Cutting of Reinforced Concrete Granite Marble Stone
Steel Rubber Diamond Wire Saw for Cutting of Reinforced Concrete Granite Marble Stone Steel Rubber Diamond Wire Saw for Cutting of Reinforced Concrete Granite Marble Stone Steel Rubber Diamond Wire Saw for Cutting of Reinforced Concrete Granite Marble Stone Steel Rubber Diamond Wire Saw for Cutting of Reinforced Concrete Granite Marble Stone Steel Rubber Diamond Wire Saw for Cutting of Reinforced Concrete Granite Marble Stone Steel Rubber Diamond Wire Saw for Cutting of Reinforced Concrete Granite Marble Stone

Large Image :  Steel Rubber Diamond Wire Saw for Cutting of Reinforced Concrete Granite Marble Stone

Product Details:
Place of Origin: Jiangxi, China
Brand Name: Linsing
Model Number: diamond wire saw
Payment & Shipping Terms:
Minimum Order Quantity: 100 meters
Price: $28.00/meters 100-999 meters
Packaging Details: Carton
Supply Ability: 1000 Meter/Meters per Day Diamond wire saw for

Steel Rubber Diamond Wire Saw for Cutting of Reinforced Concrete Granite Marble Stone

Description
Warranty: None Customized Support: OEM, ODM, OBM
Product Name: Diamond Wire Saw Rope Application: Cutting Stone
Material: Diamond + Metal Powder Usage: Granite Marble Quartz, Concrete Etc.
Certificate: TUV Grade: A-Grade
Feature: High Performance Cutting Advantage: Wear ResistantSuperior
Hardness: Hard Machine: Wire Saw Machine For Quarrying
Port: Shanghai, Shenzhen, Ningbo, Xiamen, Etc

Diamond Wire Saw For Reinforced Concrete Cutting

Linsing provides Excellent premium quality Diamond Wire designed for delivering the highest concrete cutting and sawing performance at the lowest cost.

Product Features:
1. Customize different formula and guarantee performance cost according to the mixing percentage of hard, medium, soft( Determinants:content proportion of steel and concrete hardness ) all kinds reinforced concrete, in order to maximize the performance;
2. Fine selected diamond with great strength and toughness ensures the sharpening feature and lifetime of the diamond wire;
3. Sophisticated sintering technology with well controlled temperature and pressure guarantees the diamond beads with great anti-abrasiveness feature;
4. Mature injection technology and production technique makes sure the plastic enter into every gap of cable and holds the diamond beads with firmness;
5. Self-developed automatic production equipment and strict inline and final inspection controls the quality and stability.

Product Specification:



Diameter
(mm)

Bead No.
(pcs/m)

Reinforcement Usage
D10.5 40

Rubber/Rubber
+spring

Reinforce Concrete
D11.0 40

Rubber/Rubber
+spring

Reinforce Concrete
D11.5 40

Rubber/Rubber
+spring

Reinforce Concrete

Cutting material

Line speed
(m/s)

Efficiency(m²/s) Life(m²/m)
Class1-2 18-25 7-10 2.5-3.5
Class3-4 18-23 3-4 1.5-2.5
Class5 17-20 1-2.5 0.5-1.5

Other specifications are available upon request.
