Quick Cut 9.0MM Diamond Wire Saw for Granite Marble Block Profiling and Squaring

Large Image : Quick Cut 9.0MM Diamond Wire Saw for Granite Marble Block Profiling and Squaring

Product Details:

Place of Origin:	Jiangxi, China
Brand Name:	Linxing
Model Number:	LSS253

Payment & Shipping Terms:

Minimum Order Quantity:	10 pieces
Price:	$28.00/pieces 10-99 pieces
Packaging Details:	waterproof and damageproof standard packaging<br>carton box with logo<br>as the customer's requirement
Supply Ability:	1000 Meter/Meters per Day

Contact Now

Quick Cut 9.0MM Diamond Wire Saw for Granite Marble Block Profiling and Squaring

Description

Warranty:	Warranty Guarantee	Customized Support:	OEM, ODM, OBM
Application:	Granite Profiling Or Squarring	Usage:	Stationary Wire Saw Machine
Feature:	Quick Cut	Fixing Type:	Plastic+sintering Beads
Diameter:	8.8mm/8.3mm/9.0mm	Advantage:	High Working Efficiency,long Lifetime
Main Market:	European Countries And Brazil	Beads No.:	37pcs/33pcs
Cutting Way:	Wet Cutting	Bead Work Technical:	Sintering Process
Port:	Shenzhen

Product Description

Linxing diamond wire saw for profilling Linxing diamond wire saw for profiling, is used in the stone factory to process the big stone block into different shapes, such as granite marble profiling, Mid-rigidity granite marble profiling, and hard granite marble profiling.
Linxing diamond wire saws are widely used to process special shape granite marble surfaces and for multi-wire machines to cut marble slabs.
* Diameter of beads is from 7.3mm to 8.8mm, 37/33bead per meter.
* For soft granite, line speed is 28-30m/s, cutting speed is 10-20㎡/h, and wire life is 15-20㎡/m.
* For Mid hard granite, line speed is 28-30m/s, cutting speed is 8-15㎡/h, and wire life is 10-15㎡/m.
* For hard granite, line speed is 26-28m/s, cutting speed is 7-10㎡/h, and wire life is 7-10㎡/m.
* Sample can be sent within one week and bulk orders can be finished within15days.
* Better tell us the power of your wire-cutting motor and RPM request.
* Other specifications are available according to customer request.

Description	diamond wire saw for profilling
Bead size	8.8
Bead number	37/33
machine power	22KW
Cutting speed	0.5-2.2㎡ /h
cutting area	granite

Feature

* Low noise with no dust
* Assembled in outside
* Save much space
* High stone yield
* Less shipping costs

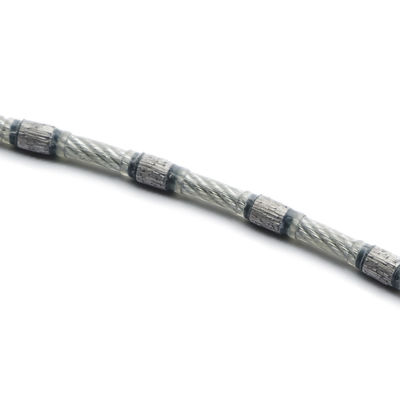

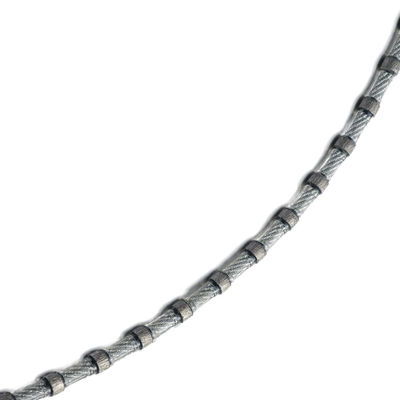

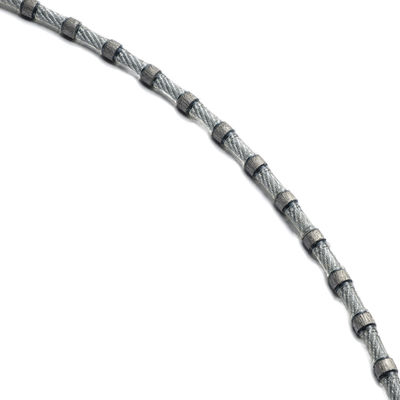

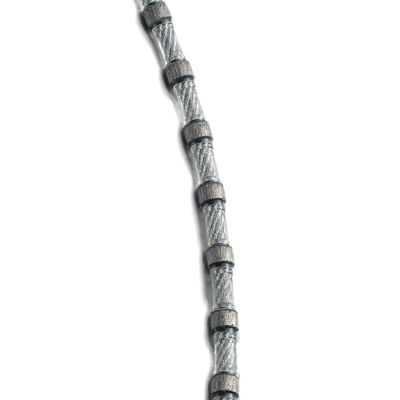

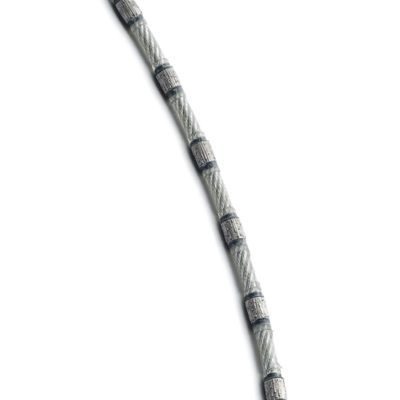

Detailed Images

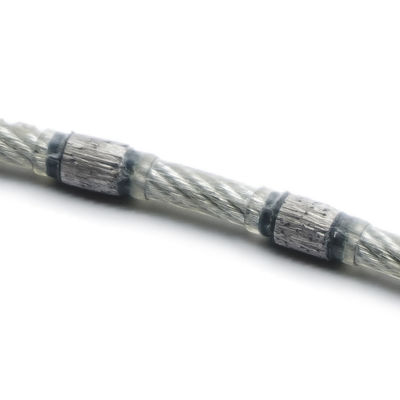

Diamond wire saw fix by spring, the spring has good flexibility and resistance temperature well, if water is not enough, it also can be worked well. Meanwhile, the spring can protect the wire saw rope very well and strengthen the wire’s life. wire itself has strong flexibility, can reduce the cut-in-one-side problem.

Size Information

Packing&Shipping

Company Introduction

LINXING factory is located in Tianfanjie which near Jingdezhen, Jiangxi which is well-known as Ceramic capital. The company covers an area of 20,000 sqm with more than 200 employees. The company has 10 technical engineers, with increasing funds of R&D,the experienced engineers have worked out unique formula for Granite and marble cutting conditions. We could provide with stable performance, competitive price and fast cutting quality, the company has earned very good reputations among customers at home and abroad, especially our diamond segments have been able to keep 40% market share in domestic market.
The company has a completely scientific quality management system, we look forward to your sincere cooperation.

Our Services

Quality makes achievements, service creats future!

Exhibition

FAQ

Q1:Are you a factory or trading company?

A:We are factory. Located at Tianfanjie industry, Poyang county, Jiangxi Province.

Q2:How is your product quality?
A. We have strict quality control system . We guarantee our products quality.

Q3:What you will provide to us when your products have warranty?
A:Please give us detailed report,which including warranty picture, and start to use time, how long, problem.
We will try to find a way to solve those problem.If it's our problem and there are no way to solve then we can make compensation..

Q4:Do you offer free sample?

Normally we do not offer free sample, but we guaranty our product's quality and try best to consider the suitability of application per market.
