Marble Stone Cutting Diamond Segments with Metal Powder and Fast Cutting Ability

Name: Marble Stone Cutting Diamond Segments with Metal Powder and Fast Cutting Ability
Brand: Linxing
SKU: S0100
Price: 0.75 USD
Availability: InStock
Rating: 4.5 (173 reviews)

All Products

Diamond Cutting Segment
(301)

Diamond Saw Blades
(281)

Diamond Wire Saw
(121)

Polishing Stone Abrasives
(345)

Diamond Drilling Tools
(47)

Diamond Cutting Discs
(101)

Floor Grinding Tools
(9)

Diamond Profiling Tools
(46)

Diamond Milling Tools
(35)

Stone Processing Equiments
(59)

PDC Cutter Tools
(2)

Ungrouped
(14)

Certification

I'm Online Chat Now

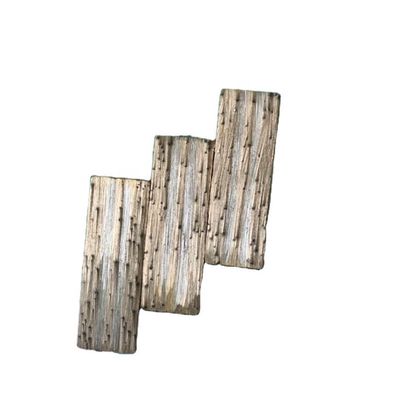

Marble Stone Cutting Diamond Segments with Metal Powder and Fast Cutting Ability

Large Image : Marble Stone Cutting Diamond Segments with Metal Powder and Fast Cutting Ability

Product Details:

Place of Origin:	China
Brand Name:	Linxing
Model Number:	S0100

Payment & Shipping Terms:

Minimum Order Quantity:	50 units
Price:	$0.75 - $0.90/units
Packaging Details:	Diamond Cutting Segment Packed by Plastic Box, LINXING LOGO Carton, etc.
Supply Ability:	10000 Set/Sets per Month Granite Working Tools Stone Cutting

Contact Now

Marble Stone Cutting Diamond Segments with Metal Powder and Fast Cutting Ability

Description

Application:	Marble Stone Cutting	Material:	Diamond + Metal Powder
Shape:	Various Shape	Keywords:	Diamond Segments
Size:	Customized Size	Usage:	Stone Edge Cutting Machine
Main Market:	Pakistan South Asia Vietnam India.ndonesiabrazil	Advantage:	Fast Cutting&long Lifespan
MOQ:	1set	Product Name:	Natural Stone Cutting Diamond Segments
Port:	Shanghai, Shenzhen, Ningbo, Xiamen, Etc

Jiangxi Linxing diamond tools co., ltd pays more attention on High quality material, advanced technology and equipment, Mainly material, the diamond quality had been got a great improvement , they can satisfy the needs of production of diamond tools . But we still continue to improves the ability of diamond tools adopt pre-alloyed powder, enhance the holding force of the matrix on the diamond, so that the diamond function is fully played.

Product name	marble segments with fast cutting and long lifespan
Size	24813 mm customized size
Brazing Method	High Frequency Welding
Application	Cutting natural stone
Feature	fast cutting &long lifespan
Supply ability	50,00 sets/month(We accept mixed order)

5 tips for you choosing a right marble segments.

1.Provide the information of the color, hardness and images of marble;

2.Provide the information of the RPM of cutting saw (or main motor power);

3.Provide the information of the cutting depth of each drop;

4.Provide the information of Multi-blades or single blades,

5. .Provide the information of the video of cutting method or cutting scene.

groove frame

groove type frame saw diamond segments is an ideal invention, it has working layer and non-working layer, the concentration of the diamond powder in the work layers is larger than that of the diamond powder in the non
working layers.the diamond segments with layers can be accurately controlled by the saw blade machine, which can keep good cutting performance all the time during the stone processing, at the same time, it can ensure the machining quality and the lifespan.

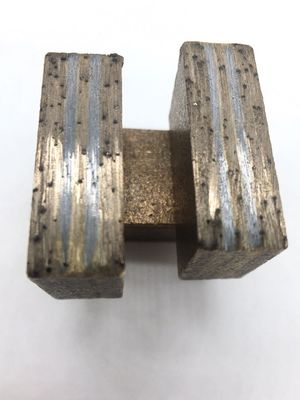

M type frame

M-shaped segment is cutting granite only? M-shaped head is rarely used to cut marble, but not impossible. In fact, The M-shaped segment can be use for cutting all kinds of stone. For marble cutting, M-shaped segment will easier opening diamond powder.

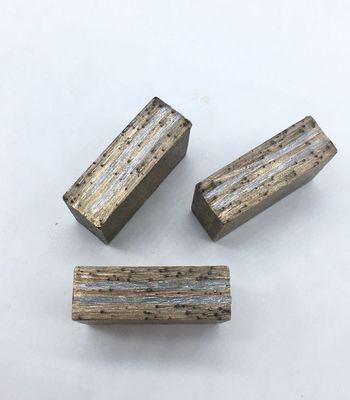

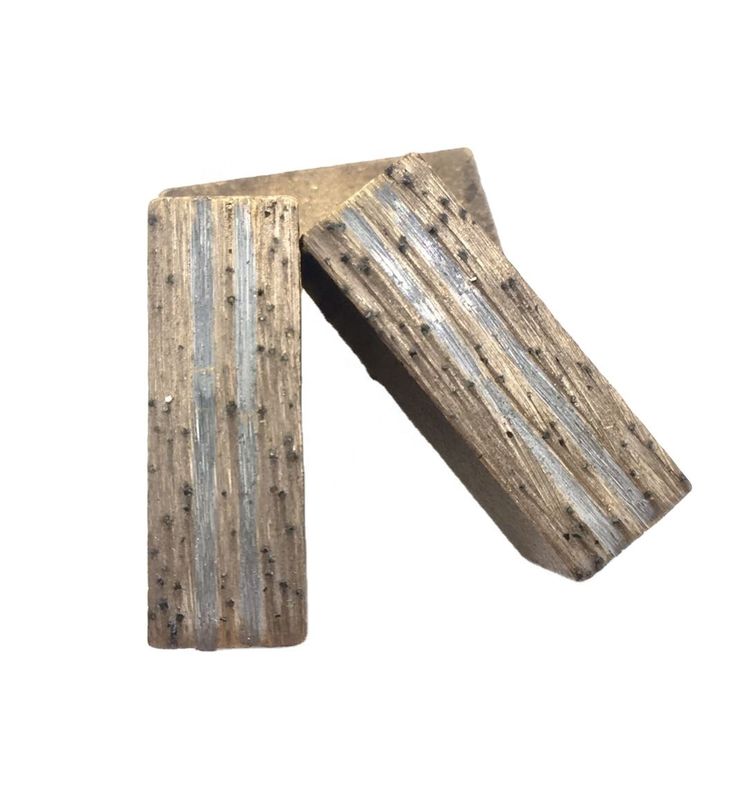

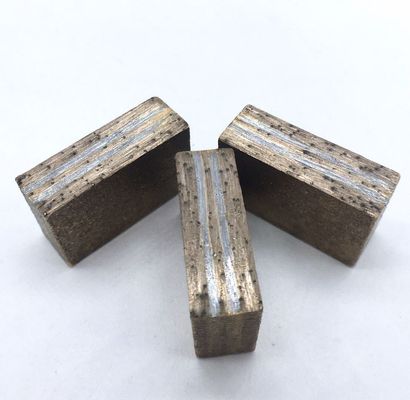

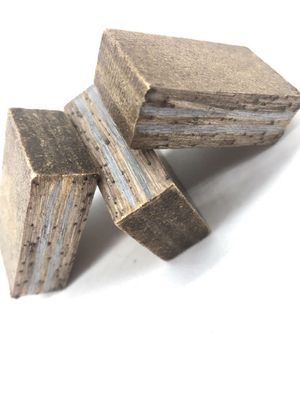

Sandwich type

The life of the segment is only related to the raw material? Actually, besides the raw material, the life of the segment has a lot to do with the shape and cutting object. In general, the life of sandwich segment is very good, while the groove segments life w
ill be relatively less, but the cutting speed of groove structure segment will be faster. In terms of cutting objects, the harder the stone cutting life is shorter

Size Information

Size Chart of diamond segments for cutting natural stone

Diameter(mm)	Blade core thickness(mm)	Segment Dimension(mm)	Segment No.	Application
250	2.2	403.210(15,20)	17	Granite,Marble,Basalt,Lava,Stone,Andesite,Travertine,limestone,Sandstone
300	2.2	403.210(15,20)	21
350	2.2/2.4	403.410(15,20)	24
400	2.6	403.610(15,20)	28
450	2.8/3.0	404.010(15,20)	32
500	3.0/3.2	404.210(15,20)	36
600	3.6/3.8	404.810(15,20)	36/42
700	4.0	405.210(15,20)	42
800	4.5	406.010(15,20)	46
900	5.0	247.0/6.415(20)	64
1000	5.0	247.0/6.415(20)	70
1200	5.5	248.0/7.415(20)	80
1300	6.0	248.4/7.815(20)	88
1400	6.5	248.4/7.815(20)	92
1600	7.2	249.2/8.415(20)	108
1800	7.5	2410.0/9.015(20)	120
2000	8.0	2410.5/9.515(20,25)	128
2200	9.0	2411.0/10.015(20,25)	132
2500	9.0	2411.5/10.515(20,25)	140
3000	9.5	2412.5/13.520(25,30)	160
3500	9.5	2413.5/14.520(25,30)	180

Application

Packing&Shipping

Packing Details : paper, carton box, plastic film, sealing tape, etc., or as your requirements
Delivery Details : normally within one week, according to the type and the quantity of diamond segments.

Company Introduction

LINXING Diamond tools factory is located in Tianfanjie which near Jingdezhen, Jiangxi which is well-known as Ceramic capital. The company covers an area of 20,000 sqm with more than 200 employees. The company has 10 technical engineers, with increasing funds of R&D, the experienced engineers have worked out unique formula for Granite and marble cutting conditions. We could provide with stable performance, competitive price and fast cutting quality, the company has earned very good reputations among customers at home and abroad, especially our diamond segments have been able to keep 40% market share in domestic market.
The company has a completely scientific quality management system, we look forward to your sincere cooperation.

The professional factory does the professional matter

Exhibition

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is within one week. or it takes more days for the new mould, and also according to the quantity.

Q: Do you provide samples ? is it free or extra ?

A: We can provide the sample but it is not free. Our diamond segment even the sample has its value and good performance. If you
are sincere to our cooperation, we can provide the preferential price for the sample.

Q: What is your terms of payment ?

A: Payment<=3000USD, 100% in advance. Payment>=3000USD, 30% T/T in advance ,balance before shippment.
