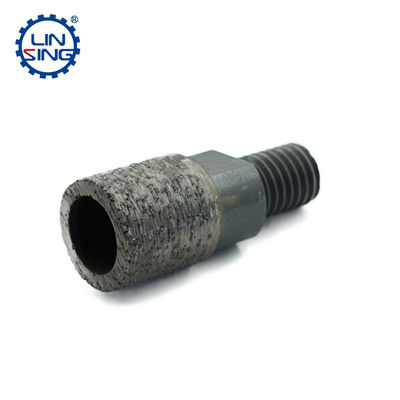

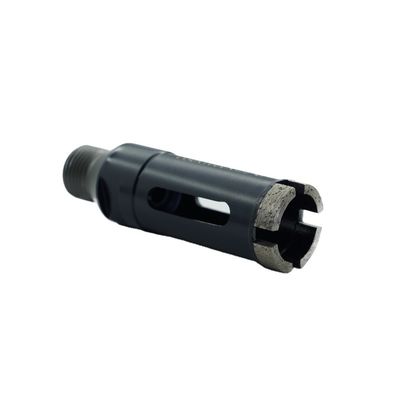

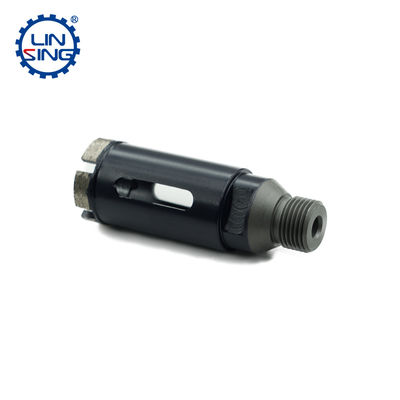

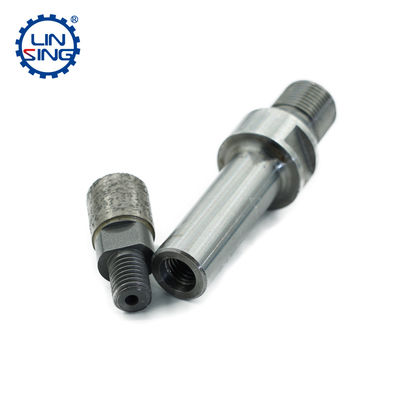

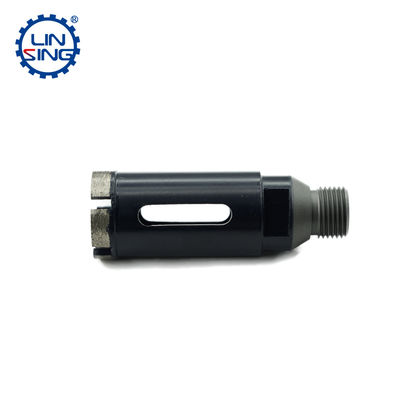

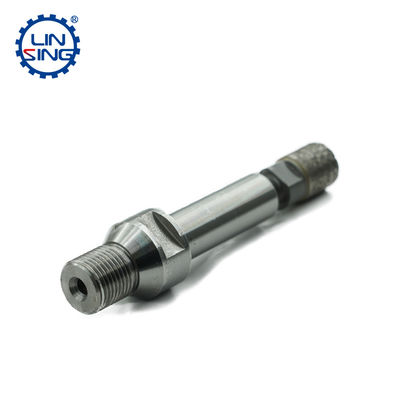

140mm Diamond Core Drill Bit for Water Well Drilling Impregnated Diamond Segment

140mm Diamond Core Drill Bit for Water Well Drilling Impregnated Diamond Segment
140mm Diamond Core Drill Bit for Water Well Drilling Impregnated Diamond Segment 140mm Diamond Core Drill Bit for Water Well Drilling Impregnated Diamond Segment 140mm Diamond Core Drill Bit for Water Well Drilling Impregnated Diamond Segment 140mm Diamond Core Drill Bit for Water Well Drilling Impregnated Diamond Segment 140mm Diamond Core Drill Bit for Water Well Drilling Impregnated Diamond Segment 140mm Diamond Core Drill Bit for Water Well Drilling Impregnated Diamond Segment

Large Image :  140mm Diamond Core Drill Bit for Water Well Drilling Impregnated Diamond Segment

Product Details:
Place of Origin: Jiangxi, China
Brand Name: LINSING
Model Number: Shank; M14; M16; G1/2"; 5/8"-11
Payment & Shipping Terms:
Minimum Order Quantity: 5 pieces
Price: $15.28/pieces 5-19 pieces
Packaging Details: Can be customized.
Supply Ability: 1000 Piece/Pieces per Day
Contact Now

140mm Diamond Core Drill Bit for Water Well Drilling Impregnated Diamond Segment

Description
Customized Support: OEM, ODM, OBM Type: Core Drill Bit, Core Drill
Use: Metal Drilling Working Length (mm): D60mm, D80mm
Finish: Other, Black Oxide, ZINC, Plain Model NO.: Diamond Segment
Cutting Type: Dry And Wet Size With Wax: 6-18mm Diameters
Specification: 6-102mm Transport Package: Paper Hanger, Box, Skin, Blister, Tube
Segment Working Part: Hot Pressed Sintered Diamond Rim Suitable For: OEM Or ODM
Usage: Masonry Drilling Technology: High Frequency Welded/Laser Welded
Port: Xiamen/Shenzhen/Guangzhou/Shanghai/Ningbio

Diamond Core Drill Bit

Diamond core drill bits use super grade diamond, with high drilling efficiency They are commonly used for drilling hard materials such as stone, ceramic tile, reinforced concrete and so on.



Product feature:
1. High efficiency, long life and no breaking of segments.
2. Sizes of adaptor: Dia.6, 8, 10mm shank, M14, M16, G1/2 ", 5/8 "-11.
3. Suitable for wet or dry use.


Product specification:

Diameter(mm)

Usable Length(mm)

Suggested R.P.M

Feed Speed(mm/min)

19-22

47

3000-3500

70-90

25

60

3000-3500

70-90

30-32

60

3000-3500

70-90

35-40

60

2000-2800

60-80

45-50

60

2000-2800

50-60

55

60

1500-2000

40-60

60

60

1500-2000

40-60

65

60

1500-2000

40-60

70

60

1500-2000

40-60

75-85

60

1500-2000

40-60

90

60

1500-2000

40-60

95-100

60

1000-1500

25-45

125

60

1000-1500

25-45

Other specifications are available upon request.
