Pottery and Porcelain Cutting Made Easy with Diamond Circular Continuous Rim Saw Blade

Pottery and Porcelain Cutting Made Easy with Diamond Circular Continuous Rim Saw Blade
Pottery and Porcelain Cutting Made Easy with Diamond Circular Continuous Rim Saw Blade Pottery and Porcelain Cutting Made Easy with Diamond Circular Continuous Rim Saw Blade Pottery and Porcelain Cutting Made Easy with Diamond Circular Continuous Rim Saw Blade Pottery and Porcelain Cutting Made Easy with Diamond Circular Continuous Rim Saw Blade Pottery and Porcelain Cutting Made Easy with Diamond Circular Continuous Rim Saw Blade Pottery and Porcelain Cutting Made Easy with Diamond Circular Continuous Rim Saw Blade

Large Image :  Pottery and Porcelain Cutting Made Easy with Diamond Circular Continuous Rim Saw Blade

Product Details:
Place of Origin: Jiangxi, China
Brand Name: Linsing
Model Number: Continuous rim saw blade
Payment & Shipping Terms:
Minimum Order Quantity: 100 pieces
Price: $5.30/pieces 100-999 pieces
Packaging Details: Plastic+Carton
Supply Ability: 2000 Piece/Pieces per Day 180mm continuous rim diamond saw blade
Contact Now

Pottery and Porcelain Cutting Made Easy with Diamond Circular Continuous Rim Saw Blade

Description
Warranty: None Blade Thickness: 0.014in, 0.032in, 0.02in, 0.018in, 0.025in
Blade Width: 1 1/4IN, 5/8in, 3/8in, 1/8IN, 1/4in, 3/16in, Other, 4-9inch Arbor Size: 7/8IN, 10mm, 5/8in
Teeth Per Inch: 10, 24, Other Teeths: Other
Blade Length: 6in, 6 1/2in, 10in, 4inch Blade Diameter: 18in, 12in, 4-9inch
Edge Height: 0.315in(8mm), 0.472in(12mm) Process Type: HOT PRESS, High Frequency Welded, Laser Welded, Cold PRESS
Customized Support: OEM, ODM, OBM Finishing: Nitride
Size: Dia.105-230mm Grade: Industrial, A-Grade
Product Name: Continuous Rim Diamond Blade Application: Porcelain, Marble, Ceramic Tile, Dekton Etc.
Material: Diamond Powder+Alloy Steel Usage: Wet Dry Cutting
Advantage: High Efficiency Feature: High Speed Straight Smooth Edge
Coating: CORONET-TiN Teeth Type: Continuous Rim
Process: Cold Hot Press Port: Xiamen Port

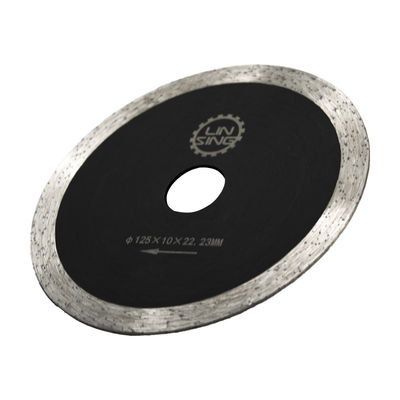

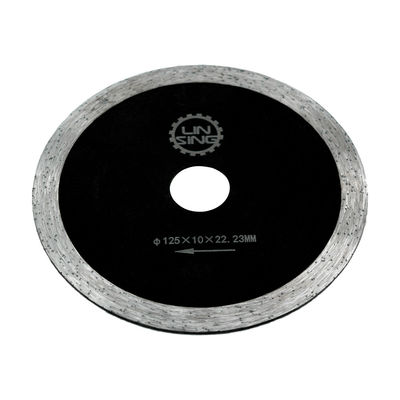

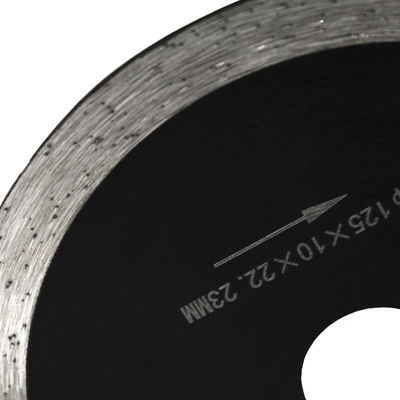

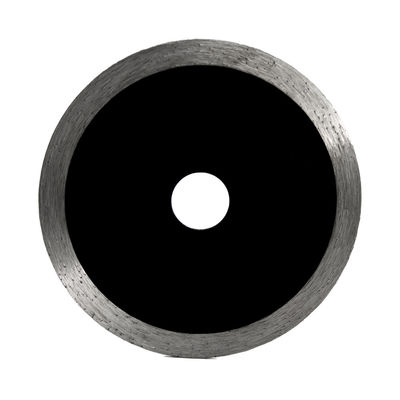

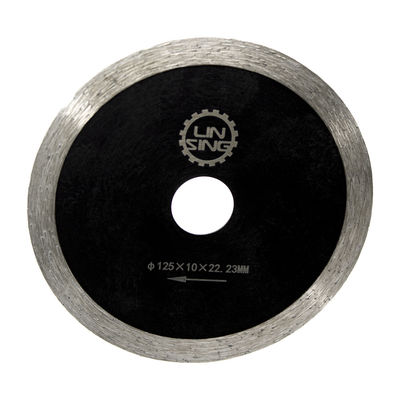

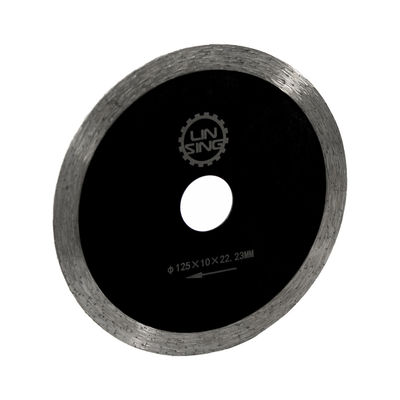

Continuous Rim Diamond Cutting Disc

Continuous rim diamond cutting disc is a kind of diamond tool. It is very effective for cutting brittle materials, widely used for cutting or slotting marble, granite, ceramic tile and decorative materials on handhold cutting machines.



Product Feature:
1. Fast cutting speed, long lifespan and stable performance;
2. Continuous Rim design for cutting edge does not collapse;
3. Suitable for wet cutting.

Product Specification:

Diameter(inch/mm)

Steel Core Thickness(mm)

Born(mm)

Φ4”/105

1.8×8.0

20/22.23/25.4

Φ4.25”/110

1.8×8.0

20/22.23/25.4

Φ4.5”/115

1.8×8.0

20/22.23/25.4

Φ5”/125

2.0×8.0

20/22.23/25.4

Φ6”/150

2.2×8.0

20/22.23/25.4

Φ7”/180

2.4×8.0

20/22.23/25.4

Φ8”/200

2.6×8.0

20/22.23/25.4

Φ9”/230

2.8×8.0

20/22.23/25.4

Other specifications are available upon request.
