Diamond Segments for Marble Basalt Limestone Granite Sandstone Cutting by LINSING

Diamond Segments for Marble Basalt Limestone Granite Sandstone Cutting by LINSING
Diamond Segments for Marble Basalt Limestone Granite Sandstone Cutting by LINSING Diamond Segments for Marble Basalt Limestone Granite Sandstone Cutting by LINSING Diamond Segments for Marble Basalt Limestone Granite Sandstone Cutting by LINSING Diamond Segments for Marble Basalt Limestone Granite Sandstone Cutting by LINSING Diamond Segments for Marble Basalt Limestone Granite Sandstone Cutting by LINSING Diamond Segments for Marble Basalt Limestone Granite Sandstone Cutting by LINSING

Large Image :  Diamond Segments for Marble Basalt Limestone Granite Sandstone Cutting by LINSING

Product Details:
Place of Origin: Jiangxi, China
Brand Name: LINSING
Model Number: 24*7.6/8.4*15MM
Payment & Shipping Terms:
Minimum Order Quantity: 200 pieces
Price: $0.69/pieces 200-499 pieces
Packaging Details: The inner packaging is plastic film and the outer packaging is carton. If the customer orders a large quantity, it will be packed in wooden cases and wooden frames.
Supply Ability: 100000 Piece/Pieces per Day Dia.350-3000 diamond circular saw blade
Contact Now

Diamond Segments for Marble Basalt Limestone Granite Sandstone Cutting by LINSING

Description
Warranty: 3 Years Customized Support: OEM, ODM, OBM
Material: Diamond Powder + Metal Powder Diamond Saw Blade: 300mm - 3500mm
Segment Type: Multi-layer Type Technology: Hot Press,cold Press
Segment Height: 13/15/20mm Advantage: High Performance
Certificate: ISO9001 Brand: Diamond Segment Manufacturer
Application: High Frequency Welding Product Name: Granite Cutting Tools
Port: Shanghai, Shenzhen, Ningbo, Xiamen, Etc

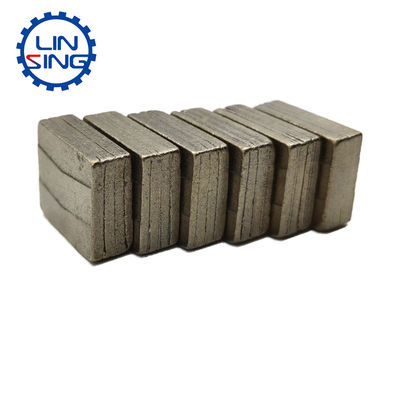

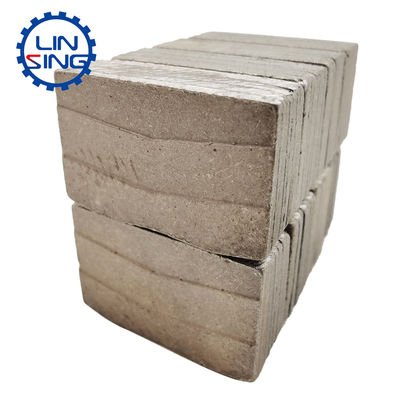

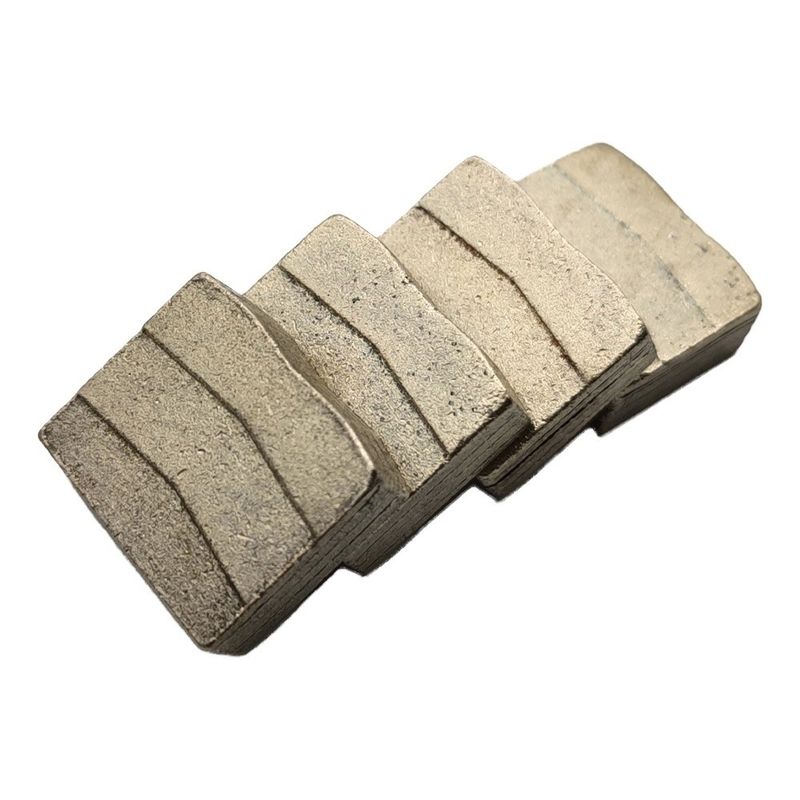

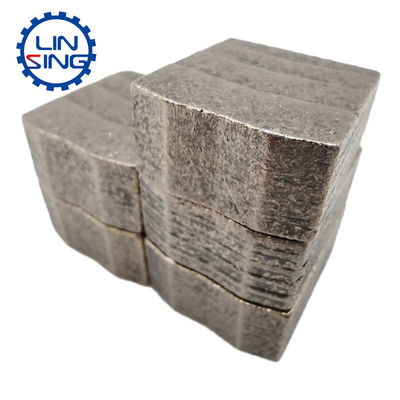

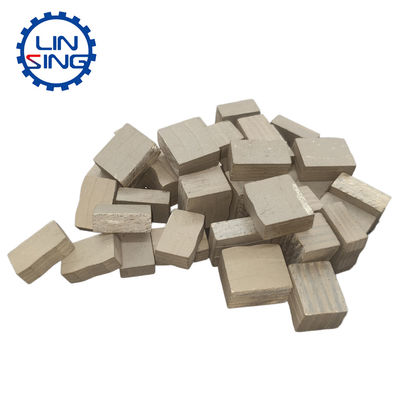

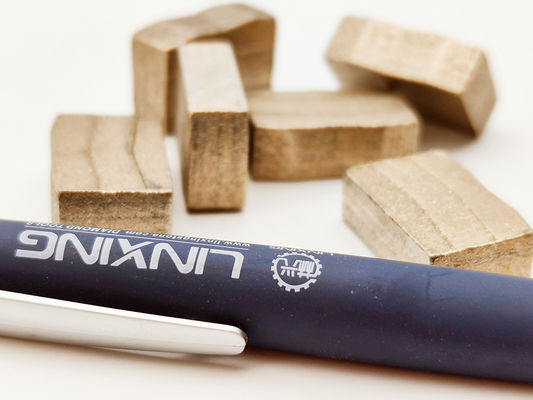

Diamond Segment For Granite Cutting

Granite cutting segment is a diamond tool for cutting granite Linxing s granite cutting segments has the characteristics of wide variety, strong pertinence, long life, high sharpness and high cost performance.
Diamond Segments for Marble Basalt Limestone Granite Sandstone Cutting by LINSING 0

Product Features:
1. Good sharpness and high efficiency without chipping.
2. Strict QC for stable cutting performance.
3. Long life span with high cost-effective.
4. Segment is easy for opening.

Product Specification:

Blade Diameter(inch/mm)

Steel Core Thickness(mm)

Segment Specification(mm)

Segment No.(pcs)

Φ12”/300

2.2

40x3.2x10(12,15, 20)

21

Φ14”/350

2.2/2.4

40x3.2x10(12,15, 20)

24

Φ16”/400

2.6

40x3.6x10(12,15, 20)

28

Φ18”/450

2.8/3.0

40x4x10(12,15, 20)

32

Φ20”/500

3.0/3.2

40x4.2x10(12,15, 20)

36

Φ24”/600

3.6/3.8

40x5x10(12,15, 20)

42

Φ28”/700

4

40x5.2x10(12,15, 20)

50

Φ32”/800

4.5

40x6x10(12,15, 20)

46

Φ36”/900

5.0

24x7.0/6.2x15(13,20)

64

Φ40”/1000

5.0

24x7.0/6.2x15(13,20)

70

Φ48”/1200

5.5

24x7.4/6.6x15(13,20)

80

Φ52”/1300

6.0

24x8.0/7.2x15(13,20)

88

Φ56”/1400

6.5

24x8.4/7.6x15(13,20)

92

Φ64”/1600

7.2

24x9.2/8.4x15(13,20)

108

Φ72”/1800

7.5

24x10.0/9.2x15(13,20)

120

Φ80”/2000

8.0

24x10.6/9.8x15(13,20)

128

Φ88”/2200

8.0/9.0

24x11.0/10.2x15(13,20)

132

Φ100”/2500

9.0

24x11.4/10.6x15(13,20)

140

Φ120”/3000

9.5

24x12.4/11.6x15(13,20)

160

Φ140”/3500

9.5

24x12.4/11.6x15(13,20)

180

Other specifications are available upon request.
