Customized Support ODM Diamond Profiling Wire Saw for D11.0*37 Or 40m Granite Cutting

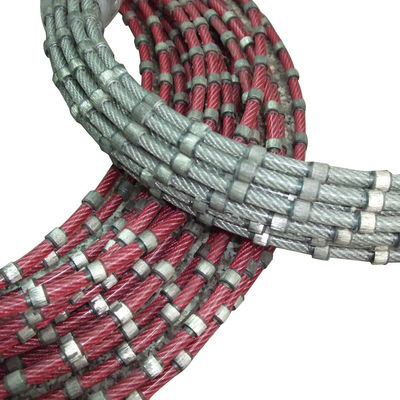

Large Image : Customized Support ODM Diamond Profiling Wire Saw for D11.0*37 Or 40m Granite Cutting

Product Details:

Place of Origin:	Jiangxi, China
Brand Name:	Linsing
Model Number:	Dimaond Wire saw

Payment & Shipping Terms:

Minimum Order Quantity:	10 pieces
Price:	$18.00 - $26.00/pieces
Packaging Details:	The inner packaging is plastic film and the outer packaging is carton. If the customer orders a large quantity, it will be packed in wooden cases and wooden frames.
Supply Ability:	10000 Meter/Meters per Day Diamond Wire Saw For Quarrying

Contact Now

Customized Support ODM Diamond Profiling Wire Saw for D11.0*37 Or 40m Granite Cutting

Description

Warranty:	None	Customized Support:	OEM, ODM, OBM
Product Name:	Diamond Wire Saw For Granite&Bassalt Mining	Application:	Squaring
Material:	Diamond + Metal Powder	Grade:	A+ Grade
Size:	D11.0*37 Or 40m	MOQ:	30 Meters
Diameter:	D11.0mm	Brand:	Linsing
Cutting Material:	Stone Squaring	Packing:	Carton Box And Wooden Frame
Port:	Shanghai, Shenzhen, Ningbo, Xiamen, Etc

Product feature:
1. Good sharpness and long life, low noise and eco-friendly.
2. Stable quality control for excellent cutting performance, high cost-effective.
3. Suitable for cutting all kind stone.
Product specification for granite:

Diameter (mm)	Bead No. (pcs/m)	Reinforcement	Usage
D11.0	40/37	Plastic/Plastic+Spring	Granite/Quartz Squaring

Cutting Material	Line speed (m/s)	Efficiency (m²/h)	Life (m²/m)
Class1-2	28-30	1.6-2.2	12-22
Class3-4	28-30	1.0-1.5	10-18
Class5	26-28	0.5-1.0	6-12

Product specification for marble/limestone:

Diameter (mm)	Bead No. (pcs/m)	Reinforcement	Usage
D11.0	40/37	Plastic/Plastic+Spring	Marble/Limestone Squaring

Cutting Material	Line speed (m/s)	Efficiency (m²/h)	Life (m²/m)
Class1-2	30-40	2.0-3.0	20-50
Class3-4	28-31	1.5-2.0	14-35
Class5	26-30	1.0-1.5	8-20

Other specifications are available upon request
