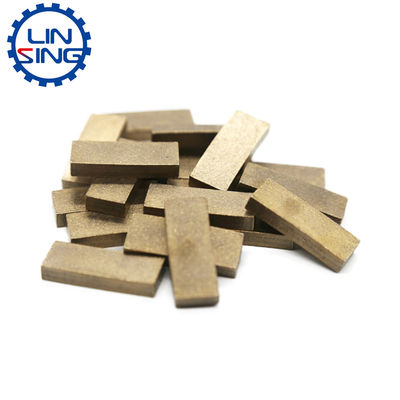

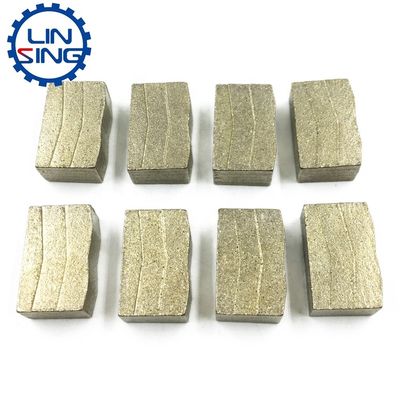

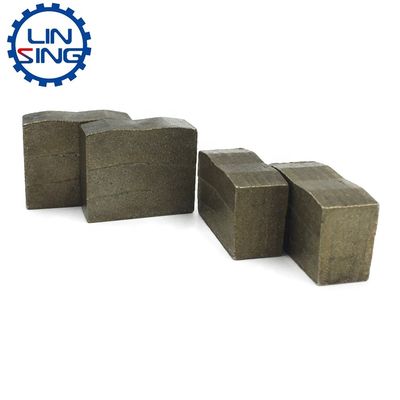

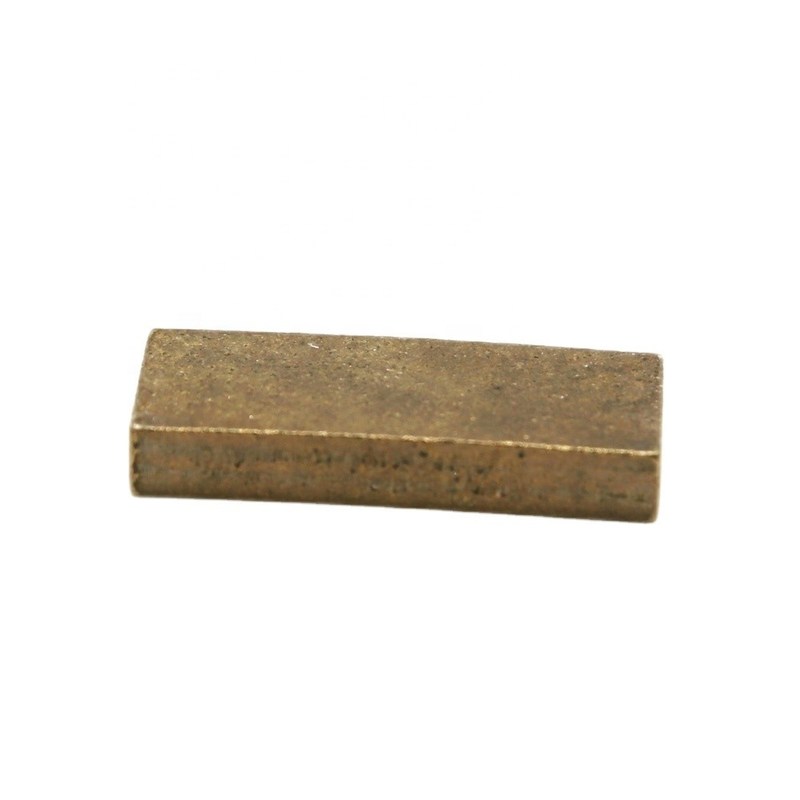

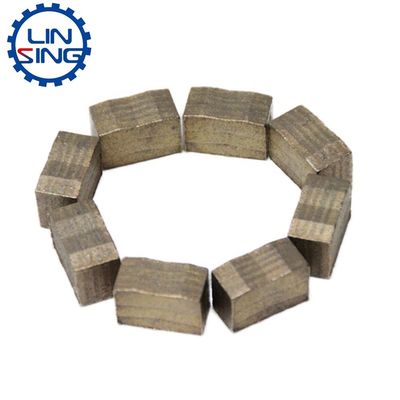

Diamond segments for granite block cutting:
Features:
It works in low noise, pollution and small cutting slot which ensures maximum use of stone and uniform thickness. Good cutting result. Fast cutting and long fife.
Diamond segments consist of small-size diamonds and metal bond materials, the metal bond materials may include the powders of Cu, Sn, Fe, Ag, Co, Ni, WC, Mo, etc.
Diamond segments (or tips) is made of diamond and metal bone sintered at high temperature. ,Hot press,cold press technology, silent core segment to prove high quality cutting result.
Our segments are much sharper than others, cutting speed is faster.
Great adaptability & No chipping.
Forms:
M shape, K shape, Taper shape, Flat shape, T shape, U shape, etc.
Our LINXING diamond segments' advantage:
1. High percent of bond materials.
2. High grade of diamonds.
3. Over 15 years experence with hundreds of formula against different stones.
4. Good sharpness, stable performance, long lifespan.
5. Strict quality control.
6. Keep 40-50 precent market share in China, Already acquired the customers' approval.
Applications:
Cutting Granite, Marble, Basalt, Volcanic, Lava Stone, Andesite, Travertine, Limestone, Sandstone, Quartz, Artificial Stone, Microcrystal Stone, Concrete, Ceramic Tile etc.
Specification:
Diamond segments for block cutting:
| Blade Diameter | Blade thickness | Segment Dimension | number |
| 900mm | 5.0/5.5 | 24 | 6.2/7.0 | 15/20/30 | 64 |
| 1000mm | 5.0/5.5 | 24 | 6.2/7.0 | 15/20/30 | 70 |
| 1200mm | 5.5/6.0 | 24 | 6.6/7.4 | 15/20/30 | 80 |
| 1350mm | 6.5 | 24 | 7.6/8.4 | 15/20/30 | 88 |
| 1600mm | 7 | 24 | 8.4/9.2 | 15/20/30 | 104/108 |
| 1800mm | 8 | 24 | 9.0/9.8 | 15/20/30 | 120 |
| 2000mm | 8.5 | 24 | 9.8/10.6 | 15/20/30 | 128 |
| 2200mm | 9 | 24 | 10.2/11 | 15/20/30 | 132 |
| 2500mm | 9 | 24 | 10.6/11.4 | 15/20/30 | 140 |
| 3000mm | 9.5 | 24 | 11.6/12.4 | 15/20/30 | 160 |
| 3500mm | 9.5 | 24 | 12.6/13.6 | 15/20/30 | 180 |
diamond segments for edge and small block cutting:
| Diamond segments for 300-800mm diamond saw blade |
| Diameter | Core Thickness (mm) | Segment Dimension (mm) | No. of Teeth |
| mm | inch | Length | Thickness | Height |
| 300 | 12" | 2.0/2.2 | 40 | 2.8/3.0 | 8/10/12/15 | 21 |
| 350 | 14" | 2.2/2.4 | 40 | 3.0/3.2 | 8/10/12/15 | 24 |
| 400 | 16" | 2.6/2.8 | 40 | 3.4/3.6 | 8/10/12/15 | 28 |
| 450 | 18" | 2.8/3.0 | 40 | 4.0/4.2 | 8/10/12/15 | 32 |
| 500 | 20" | 2.8/3.0 | 40 | 4.0/4.2 | 8/10/12/15 | 36 |
| 600 | 24" | 3.6 | 40 | 4.6 | 8/10/12 | 42 |
| 700 | 28" | 4 | 40 | 5.2 | 8/10/12 | 42 |
| 800 | 32" | 4.5 | 40 | 6.0 | 8/10/12 | 46/57 |
| Diamond segments for 900-3500mm single/multi blades |
| Diameter | Core Thickness (mm) | Segment Dimension (mm) | No. of Teeth |
| mm | inch | Length | Thickness | Height |
| 900 | 36" | 5 | 22/24 | 6.0/6.6 | 12/13/15 | 64 |
| 1000 | 40" | 5.5 | 22/24 | 6.4/7.0 | 12/13/15 | 70 |
| 1200 | 48" | 6 | 22/24 | 7.4/8.0 | 12/13/15 | 80 |
| 1400 | 55" | 6.5 | 22/24 | 7.8/8.4 | 12/13/15 | 92 |
| 1600 | 64" | 7.2 | 22/24 | 8.4/9.0 | 12/13/15 | 108 |
| 1800 | 72" | 8 | 22/24 | 9.2/9.8 | 12/13/15/20 | 120 |
| 2000 | 80" | 8 | 22/24 | 9.5/10.5 | 12/13/15/20 | 128 |
| 2200 | 88" | 9 | 22/24 | 10.5/11.5 | 12/13/15/20 | 132 |
| 2500 | 110" | 9 | 22/24 | 11.5/12.5 | 12/13/15/20 | 140 |
| 3000 | 120" | 10 | 22/24 | 12.5/13.5 | 12/13/15/20 | 160 |
| 3500 | 140" | 10 | 22/24 | 13.5/14.5 | 12/13/15/20 | 180 |
Diamond segments for gangsaw:
| Product name | Steel Blank Thickness(mm) | Head size(mm) | No. | Shape | application |
| Linxing Gang Saw Segment | 5.0 | 20×4.6/4.0×8(10) | 25-32 | Z1T | Marble Limestone And other Soft stone |
| 3.0 | 20×5.0/4.4×8(10) | 25-32 |
| 3.5 | 20×5.4/4.8×8(10) | 25-32 |
Diamond segments for quarrying
| Specification | Blade thickness | Segment Dimension | number |
| 2200mm | 9.5/10.0 | 22/24 | 13.1/13.9 | 15/20 | 132 |
| 2400mm | 9.5/10.0 | 22/24 | 13.1/13.9 | 15/20 | 136 |
| 3300mm | 9.5/10.0 | 22/24 | 11.6/12.4 | 15/20 | 170 |
| 360mm | 9.5/10.0 | 22/24 | 11.6/12.4 | 15/20 | 180 |
| Specification | Blade thickness | Segment Dimension | number |
| 2600mm | 12 | 24 | 15.6/16.4 | 15/20 | 154 |
| 3800mm | 12 | 24 | 14.6/15.4 | 15/20 | 190 |
| 4600mm | 12 | 24 | 13.6/14.4 | 15/20 | 230 |
Other specifications are available upon request.
