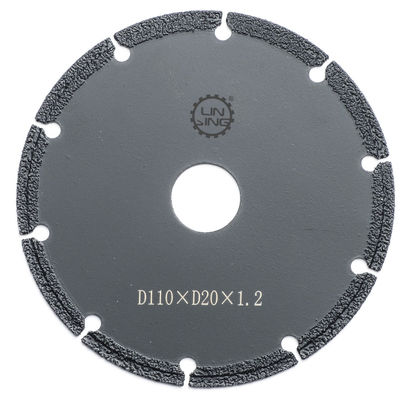

D110D201.2 Diamond Cutting Disc Vacuum Brazed for Precise Stone Concrete Cutting

Large Image : D110*D20*1.2 Diamond Cutting Disc Vacuum Brazed for Precise Stone Concrete Cutting

Product Details:

Place of Origin:	Jiangxi, China
Brand Name:	Linsing
Model Number:	Vacuum Brazed disc

Payment & Shipping Terms:

Minimum Order Quantity:	20 pieces
Price:	$10.00/pieces 20-99 pieces
Packaging Details:	Carton
Supply Ability:	1000 Piece/Pieces per Day

Contact Now

D110D201.2 Diamond Cutting Disc Vacuum Brazed for Precise Stone Concrete Cutting

Description

Warranty:	None	Blade Thickness:	1.2mm
Blade Width:	115mm	Arbor Size:	7/8IN, 5/8in, 50/60mm
Teeth Per Inch:	10	Blade Length:	115mm
Blade Diameter:	115mm	Edge Height:	0.315in(8mm), 0.472in(12mm)
Process Type:	Vacuum Brazed	Customized Support:	OEM, ODM, OBM
Finishing:	Ti-coated	Size:	115mm
Grade:	Industrial	Application:	Marble And Granite Cutting
Product Name:	Vacuum Brazed Saw Blade	Advantage:	Sharpess
Diameter:	115mm	MOQ:	20 Pcs
Color:	Customized	Type:	Cutting Tools
Cutting Material:	Natural Stone	Packing:	Carton
Service:	After-sale Service	Port:	Shanghai, Shenzhen, Ningbo, Xiamen, Etc

Vacuum Brazed Diamond Saw Blade

Vacuum brazed diamond saw blade is a new type of saw blade Through the chemical metallurgical action of the brazing material during brazing, the diamond, and the blank blade are bonded together so that they are melted into one without damaging the characteristics of the diamond and blank blade.

Product feature:
1. Fast cutting speed than the sintered blade and longer life than the electroplated blade.
2. It can be used for general-purpose cutting such as stone, brick, concrete, fiberglass, aluminum, PVC, wood, rebar, and other steel products.
3. Both dry and wet cutting are available.
Product specification:

Blade Diameter (inch/mm)	Steel Core Thickness (mm)	Grit(#)	Born(mm)
Φ4.5”/115	1.2	30-60#	20/22.23/25.4

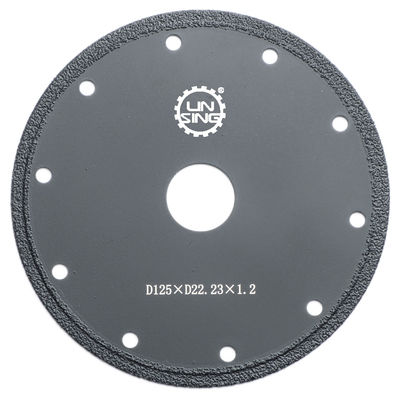

Φ5”/125	1.2	30-60#	20/22.23/25.4
Φ6”/150	1.4	30-60#	20/22.23/25.4
Φ7”/180	1.6	30-60#	20/22.23/25.4
Φ9”/230	1.8	30-60#	20/22.23/25.4

Other specifications are available upon request.
