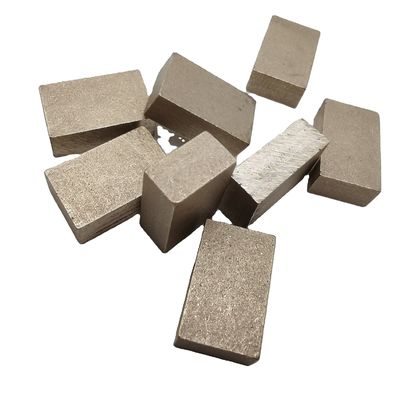

Marble Cutting Medium Hard Diamond Layer Segment Cutter 1200mm Single Disc 24813mm

Large Image : Marble Cutting Medium Hard Diamond Layer Segment Cutter 1200mm Single Disc 24*8*13mm

Product Details:

Place of Origin:	Jiangxi, China
Brand Name:	Linsing
Model Number:	Marble Cutting Segment

Payment & Shipping Terms:

Minimum Order Quantity:	160 pieces
Price:	$0.90/pieces 160-5999 pieces
Packaging Details:	Diamond Cutting Segment Packed by Plastic Box, LINXING LOGO Carton, etc.

Contact Now

Marble Cutting Medium Hard Diamond Layer Segment Cutter 1200mm Single Disc 24813mm

Description

Warranty:	None	Customized Support:	OEM, ODM, OBM
Product Name:	Diamond Segment For Marble	Keywords:	Diamond Tool
Application:	Marble Cutting&Grinding&Squaring	Usage:	Wet Cutting
Material:	Diamond + Cobalt Powder	Size:	24813mm
Shape:	Flat Shape	Advantage:	High Efficiency And Long Lifespan
OEM:	Accpetable	Website:	Https://www.linxingstone.com

Product Description

Features:

1: The choice of binder: the comprehensive performance of the diamond segments is not only dependent on the diamond, but also depends on the overall composite property of the proper coordination of the properties of the diamond and the bond. ,Diamond segments are parts of diamond tools.
2: These products are used for cutting granite, marble, asphalt, tile, concrete, fire-proof materials or for continuous polishing machine. Various specifications can be ordered by customers.,High grade of diamonds.
3: Linxing segments,diamond segments,granite segments, marble segments ,stone segment can be sued to cutting all kinds of stone.,Other size is avaliable for your reference:24*4*10mm, 24*5*12mm, 24*6*15mm , size up to your detail requirement.
4: Custom-design can be meet upon request, and small trial order available any time.

Forms:

M shape, K shape, Taper shape, Flat shape, T shape, U shape, etc.

Specification:

Blade Diameter(inch/mm)	Steel Core Thickness(mm)	Segment Specification(mm)	Segment No.(pcs)
Φ12”/300	2.2	42/40x3.2x8(10,12,15)	22
Φ14”/350	2.2/2.4	42/40x3.4x8(10,12,15)	25
Φ16”/400	2.6	42/40x3.6x8(10,12,15)	29
Φ18”/450	2.8/3.0	40x4x8(10,12,15)	32
Φ20”/500	3.0/3.2	40x4.2x8(10,12,15)	35
Φ24”/600	3.6/3.8	40x5x8(10,12,15)	42
Φ28”/700	4	40x5.2x8(10,12,15)	50
Φ32”/800	4.5	40x6x8(10,12,15)	57
Φ36”/900	5.0	24x7.5x8(10,12,13,15)	64
Φ40”/1000	5.0	24x7.5x8(10,12,13,15)	70
Φ48”/1200	5.5	24x8.0x8(10,12,13,15)	80
Φ52”/1300	6.0	24x8.5x8(10,12,13,15)	88
Φ56”/1400	6.5	24x9.0x8(10,12,13,15)	92
Φ64”/1600	7.2	24x9.2x8(10,12,13,15)	108
Φ72”/1800	7.5	24x10x8(10,12,13,15)	120
Φ80”/2000	8.0	24x10.5x8(10,12,13,15)	128
Φ88”/2200	8.0/9.0	24x11x8(10,12,13,15)	132
Φ100”/2500	9.0	24x11x8(10,12,13,15)	140
Φ120”/3000	9.5	24x12x8(10,12,13,15)	160
Φ140”/3500	9.5	24x12x8(10,12,13,15)	180

diamond segments for edge and small block cutting:

Diamond segments for 300-800mm diamond saw blade
Diameter		Core Thickness (mm)	Segment Dimension (mm)			No. of Teeth
mm	inch	Core Thickness (mm)	Length	Thickness	Height	No. of Teeth
300	12"	2.0/2.2	40	2.8/3.0	8/10/12/15	21
350	14"	2.2/2.4	40	3.0/3.2	8/10/12/15	24
400	16"	2.6/2.8	40	3.4/3.6	8/10/12/15	28
450	18"	2.8/3.0	40	4.0/4.2	8/10/12/15	32
500	20"	2.8/3.0	40	4.0/4.2	8/10/12/15	36
600	24"	3.6	40	4.6	8/10/12	42
700	28"	4	40	5.2	8/10/12	42
800	32"	4.5	40	6.0	8/10/12	46/57
Diamond segments for 900-3500mm single/multi blades
Diameter		Core Thickness (mm)	Segment Dimension (mm)			No. of Teeth
mm	inch	Core Thickness (mm)	Length	Thickness	Height	No. of Teeth
900	36"	5	22/24	6.0/6.6	12/13/15	64
1000	40"	5.5	22/24	6.4/7.0	12/13/15	70
1200	48"	6	22/24	7.4/8.0	12/13/15	80
1400	55"	6.5	22/24	7.8/8.4	12/13/15	92
1600	64"	7.2	22/24	8.4/9.0	12/13/15	108
1800	72"	8	22/24	9.2/9.8	12/13/15/20	120
2000	80"	8	22/24	9.5/10.5	12/13/15/20	128
2200	88"	9	22/24	10.5/11.5	12/13/15/20	132
2500	110"	9	22/24	11.5/12.5	12/13/15/20	140
3000	120"	10	22/24	12.5/13.5	12/13/15/20	160
3500	140"	10	22/24	13.5/14.5	12/13/15/20	180

Diamond segments for gangsaw:

Product name	Steel Blank Thickness(mm)	Head size(mm)	No.	Shape	application
Linxing Gang Saw Segment	5.0	20×4.6/4.0×8(10)	25-32	Z1T	Marble Limestone And other Soft stone
	3.0	20×5.0/4.4×8(10)	25-32
	3.5	20×5.4/4.8×8(10)	25-32

Diamond segments for quarrying

Specification	Blade thickness	Segment Dimension			number
2200mm	9.5/10.0	22/24	13.1/13.9	15/20	132
2400mm	9.5/10.0	22/24	13.1/13.9	15/20	136
3300mm	9.5/10.0	22/24	11.6/12.4	15/20	170
360mm	9.5/10.0	22/24	11.6/12.4	15/20	180
