OBM Customized Support D230MM X Mesh Turbo Cutting Blade Disc with 6in Blade Length

OBM Customized Support D230MM X Mesh Turbo Cutting Blade Disc with 6in Blade Length
OBM Customized Support D230MM X Mesh Turbo Cutting Blade Disc with 6in Blade Length OBM Customized Support D230MM X Mesh Turbo Cutting Blade Disc with 6in Blade Length OBM Customized Support D230MM X Mesh Turbo Cutting Blade Disc with 6in Blade Length OBM Customized Support D230MM X Mesh Turbo Cutting Blade Disc with 6in Blade Length OBM Customized Support D230MM X Mesh Turbo Cutting Blade Disc with 6in Blade Length OBM Customized Support D230MM X Mesh Turbo Cutting Blade Disc with 6in Blade Length

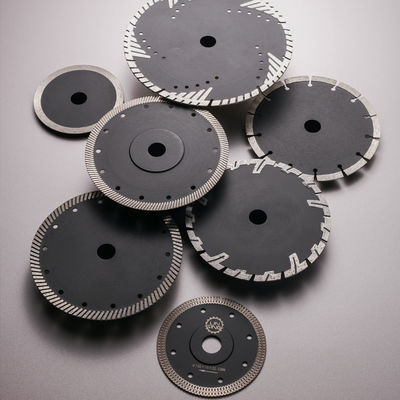

Large Image :  OBM Customized Support D230MM X Mesh Turbo Cutting Blade Disc with 6in Blade Length

Product Details:
Place of Origin: Jiangxi, China
Brand Name: LINSING
Model Number: D150mm
Payment & Shipping Terms:
Minimum Order Quantity: 20 pieces
Price: $2.32/pieces 20-49 pieces
Packaging Details: waterproof and damageproof standard packaging<br>carton box with logo<br>as the customer's requirement
Supply Ability: 100000 Piece/Pieces per Day
Contact Now

OBM Customized Support D230MM X Mesh Turbo Cutting Blade Disc with 6in Blade Length

Description
Warranty: 3 Years Blade Thickness: 0.014in, 0.032in, 0.05in, 0.02in, 0.035in, 0.018in, 0.042in, 0.025in
Blade Width: 1 1/2IN, 3/4IN, 1/2in, 1 1/4IN, 5/8in, 3/8in, 1/8IN, 1/4in, 1in, 3/16in Arbor Size: 7/8IN, 10mm, 5/8in
Teeth Per Inch: 10, 24 Teeths: 140, 144
Blade Length: 6in, 6 1/2in, 10in Blade Diameter: 18in, 12in
Edge Height: 0.315in(8mm), 0.472in(12mm) Process Type: HOT PRESS, High Frequency Welded, Laser Welded, Cold PRESS
Customized Support: OEM, ODM, OBM Finishing: Ti-coated
Size: D125mm Grade: Industrial
Technology: Hot Press Technology Inner Hole(mm): 20/22.23/M14/25.4, Etc
Product Features: Fast Cutting Speed And Small Cutting Gap Bore/mm: 22.23
Segment Shape: Continuous Turbo Type Product Name: Diamond Cutting Disc
Diameter(mm): 105-230 Delivery Time: 7~12 Days After Payment Received
Factory: More Than 15 Years Experience

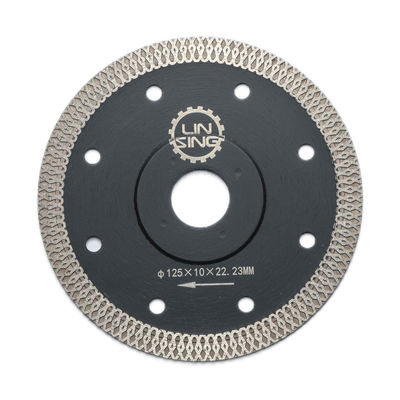

X Mesh Turbo Cutting Disc

X mesh saw blade is a new type of diamond saw blade This blade has a longer service life during the cutting process In terms of performance, it is better than the general turbo saw blade, especially It has good cutting force for hard building materials, such as stone, reinforced concrete, bricks, asphalt etc.


Product feature:
1. Turbo segment good for dust removal, Fast cutting speed and Long lifespan.
2. Continuous rim makes cutting smooth and chipping free.
3. Dry and wet cutting are available.
4. High quality control for safety.


Product specification:

Blade Diameter (inch/mm)

Steel Core Thickness(mm)

Born(mm)

Φ4”/105

1.8×10.0

20/22.23/25.4

Φ4.5”/115

1.8×10.0

20/22.23/25.4

Φ5”/125

2.0×10.0

20/22.23/25.4

Φ6”/150

2.3×10.0

20/22.23/25.4

Φ7”/180

2.5×10.0

20/22.23/25.4

Φ9”/230

2.6×10.0

20/22.23/25.4

Other specifications are available upon request.
