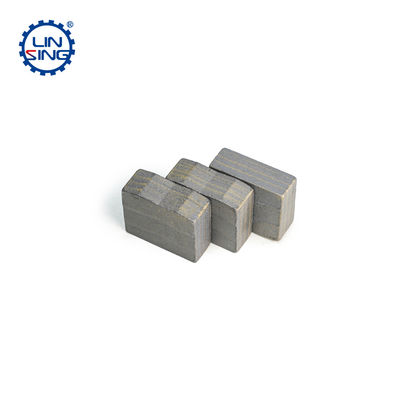

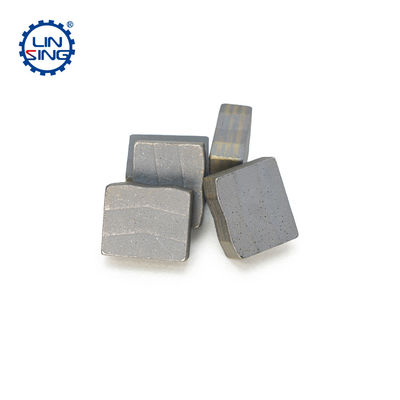

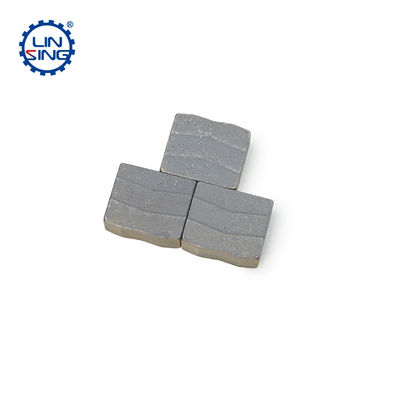

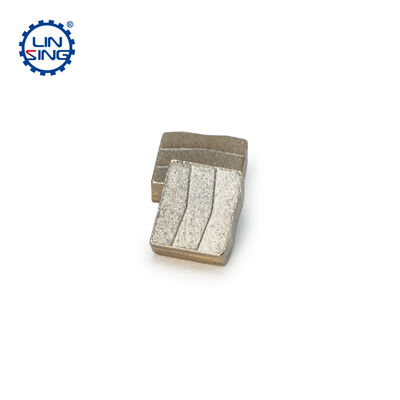

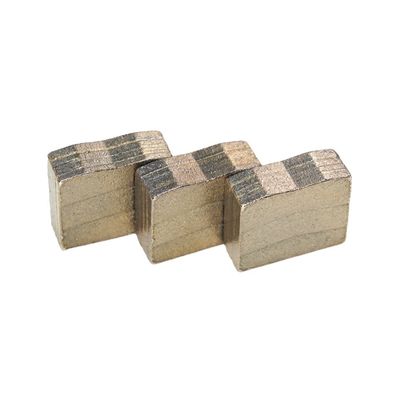

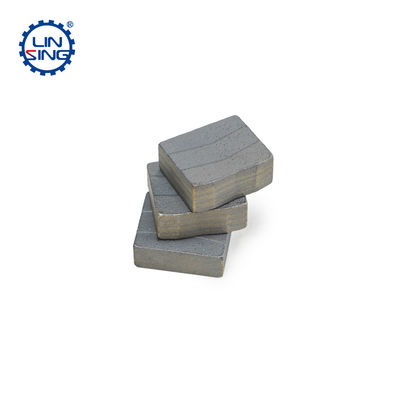

Polished Finish M and Flat Shape Diamond Sintered Segment for Sandstone Cutting Tools

Large Image : Polished Finish M and Flat Shape Diamond Sintered Segment for Sandstone Cutting Tools

Product Details:

Place of Origin:	Fujian, China
Brand Name:	Linsing
Certification:	TUV
Model Number:	248.0/8.820.5mm

Payment & Shipping Terms:

Minimum Order Quantity:	1000 pieces
Price:	$0.63/pieces 1000-9999 pieces
Packaging Details:	Carton
Supply Ability:	70000 Piece/Pieces per Day Sandstone segment

Contact Now

Polished Finish M and Flat Shape Diamond Sintered Segment for Sandstone Cutting Tools

Description

Warranty:	3 Years	Customized Support:	OEM, ODM, OBM
Product Name:	Diamond Segment For Sandstone	Keywords:	Sandstone Cutting Tips
Application:	Sandstone Block	Material:	Diamond + Metal Powder
Feature:	Excellent Wear Resistant	Grade:	A+Grade
Color:	Golden Color	Shape:	M Type Or Flat Type
Surface:	Polished Finish	Port:	Shanghai, Shenzhen, Ningbo, Xiamen, Etc

Diamond Segment For Sandstone Cutting

Sandstone cutting segment is a diamond tool specially used for cutting sandstone stone. Sandstone is a very special kind of stone, it has the characteristics of large hardness span and high abrasiveness, so the quality of segment is required to be high Linxing's sandstone cutting segments has the characteristics of good sharpness, long service life, stable cutting and high cost performance.

Product Features:
1. Good sharpness and super long lifespan;
2. Strict QC for stable cutting performance;
3. Suitable for all kinds of sandstone cutting.

Product Specification:

Blade Diameter(inch/mm)	Steel Core Thickness(mm)	Segment Specification(mm)	Segment No.(pcs)
Φ12”/300	2.2	40x3.2x10(12,15, 20)	21
Φ14”/350	2.2/2.4	40x3.2x10(12,15, 20)	24
Φ16”/400	2.6	40x3.6x10(12,15, 20)	28
Φ18”/450	2.8/3.0	40x4x10(12,15, 20)	32
Φ20”/500	3.0/3.2	40x4.2x10(12,15, 20)	35
Φ24”/600	3.6/3.8	40x5x10(12,15, 20)	36/42
Φ28”/700	4	40x5.2x10(12,15, 20)	42
Φ32”/800	4.5	40x6x10(12,15, 20)	46
Φ36”/900	5.0	24x7.0/6.2x15(13,20)	64
Φ40”/1000	5.0	24x7.0/6.2x15(13,20)	70
Φ48”/1200	5.5	24x7.4/6.6x15(13,20)	80
Φ52”/1300	6.0	24x8.0/7.2x15(13,20)	88
Φ54”/1350(For India)	6.5	24x8.8/8.0x15(20)	88
Φ56”/1400	6.5	24x8.4/7.6x15(13,20)	92
Φ64”/1600	7.2	24x9.2/8.4x15(13,20)	108
Φ64”/1600(For India)	7.2	24x9.6/8.8x15(20)	104
Φ72”/1800	7.5	24x10.0/9.2x15(13,20)	120
Φ72”/1800(For India)	7.5	24x9.8/9.0x15(20)	120
Φ80”/2000	8.0	24x10.6/9.8x15(13,20)	128
Φ88”/2200	8.0/9.0	24x11.0/10.2x15(13,20)	132
Φ100”/2500	9.0	24x11.4/10.6x15(13,20)	140
Φ120”/3000	9.5	24x12.4/11.6x15(13,20)	160
Φ140”/3500	9.5	24x12.4/11.6x15(13,20)	180

Other specifications are available upon request.
Polished Finish M and Flat Shape Diamond Sintered Segment for Sandstone Cutting Tools 0

Polished Finish M and Flat Shape Diamond Sintered Segment for Sandstone Cutting Tools 5
