1000mm Diamond Saw Blade for Granite Marble Concrete Cutting Disc 14in Wet Cut Disk

1000mm Diamond Saw Blade for Granite Marble Concrete Cutting Disc 14in Wet Cut Disk
1000mm Diamond Saw Blade for Granite Marble Concrete Cutting Disc 14in Wet Cut Disk 1000mm Diamond Saw Blade for Granite Marble Concrete Cutting Disc 14in Wet Cut Disk 1000mm Diamond Saw Blade for Granite Marble Concrete Cutting Disc 14in Wet Cut Disk 1000mm Diamond Saw Blade for Granite Marble Concrete Cutting Disc 14in Wet Cut Disk 1000mm Diamond Saw Blade for Granite Marble Concrete Cutting Disc 14in Wet Cut Disk 1000mm Diamond Saw Blade for Granite Marble Concrete Cutting Disc 14in Wet Cut Disk

Large Image :  1000mm Diamond Saw Blade for Granite Marble Concrete Cutting Disc 14in Wet Cut Disk

Product Details:
Place of Origin: Fujian, China
Brand Name: Linsing
Certification: TUV
Model Number: Segmented saw blade
Payment & Shipping Terms:
Minimum Order Quantity: 10 pieces
Price: $28.00/pieces 10-99 pieces
Packaging Details: Carton and wooden box
Supply Ability: 1000 Piece/Pieces per Day 350mm segmented saw blade
Contact Now

1000mm Diamond Saw Blade for Granite Marble Concrete Cutting Disc 14in Wet Cut Disk

Description
Warranty: None Blade Thickness: 0.014in, 0.032in, 0.05in, 0.02in, 0.035in, 0.018in, 0.042in, 0.025in
Blade Width: 1 1/2IN, 3/4IN, 1/2in, 1 1/4IN, 5/8in, 3/8in, 1/8IN, 1/4in, 1in, 3/16in, Other Arbor Size: 7/8IN, 10mm, 5/8in
Teeth Per Inch: 10, 24 Teeths: 140, 144
Blade Length: 6in, 6 1/2in, 10in, 14in Blade Diameter: 18in, 12in, 14in
Edge Height: 0.315in(8mm), 0.472in(12mm) Process Type: HOT PRESS, High Frequency Welded, Laser Welded, Cold PRESS, Vacuum Brazed
Customized Support: OEM, ODM, OBM Finishing: Ti-coated
Size: D350,D400 Grade: Industrial
Product Name: Diamond Saw Blade Application: Stone
Usage: Wet Material: Diamond Powder+65Mn Steel
Advantage: Fast Cutting Speed Machine: Bridge Machine
Technology: Hot Pressed Sintered Segmented Blades Main Market: Europe + America
Quality Grade: Top Grade Port: Shanghai, Shenzhen, Ningbo, Xiamen, Etc

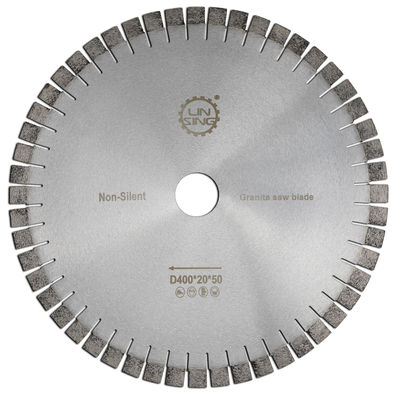

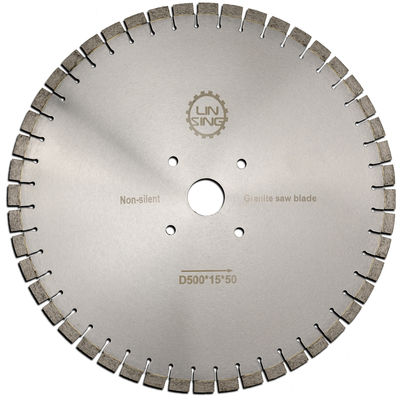

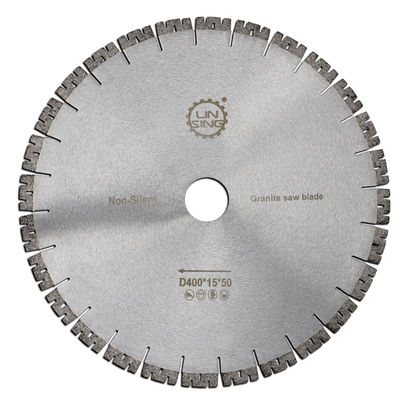

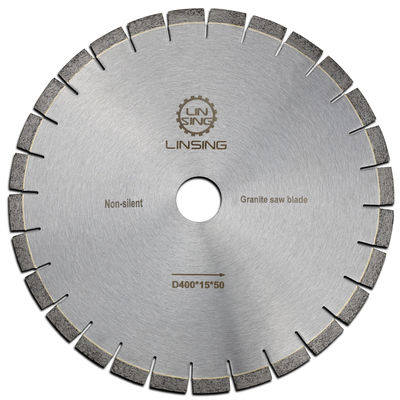

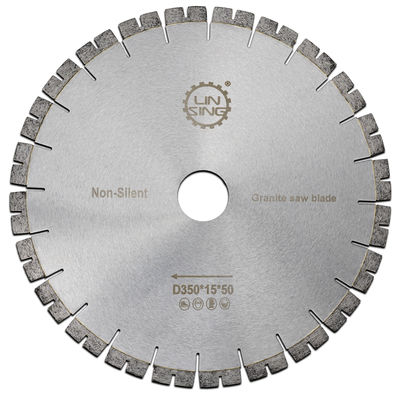

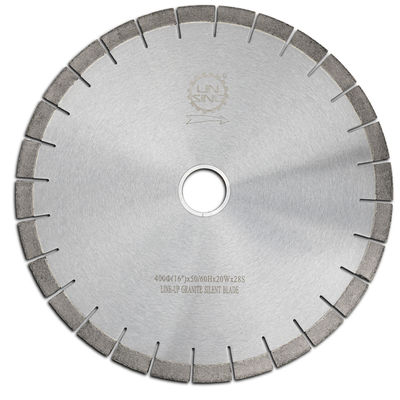

Diamond Saw Blade For Granite

The saw blade used for cutting granite, it has the characteristics of high sharpness, good wear resistance and long lifespan.

Products Features:
1. Good sharpness, high efficiency and long lifespan;
2. Smooth cutting without chipping;
3. Stable cutting and high cost-effective;
4. Silent and non-silent blade are available.

Product Specification:

Diameter(inch/mm)

Steel Core Thickness(mm)

Segment Specification(mm)

Segment No.(pcs)

Φ12”/300

2.2

40x3.2x10(12,15,20)

21

Φ14”/350

2.2/2.4

40x3.2x10(12,15,20)

24

Φ16”/400

2.6

40x3.6x10(12,15,20)

28

Φ18”/450

2.8/3.0

40x4x10(12,15,20)

32

Φ20”/500

3.0/3.2

40x4x10(12,15,20)

36

Φ24”/600

3.6/3.8

40x5x10(12,15,20)

42

Φ28”/700

4

40x5.2x10(12,15,20)

50

Φ32”/800

4.5

40x6x10(12,15,20)

46

Φ36”/900

5.0

24x7.0/6.2x15(13,20)

64

Φ40”/1000

5.0

24x7.0/6.2x15(13,20)

70

Φ48”/1200

5.5

24x7.4/6.6x15(13,20)

80

Φ52”/1300

6.0

24x8.0/7.2x15(13,20)

88

Φ56”/1400

6.5

24x8.4/7.6x15(13,20)

92

Φ64”/1600

7.2

24x9.2/8.4x15(13,20)

108

Φ72”/1800

7.5

24x10.0/9.2x15(13,20)

120

Φ80”/2000

8.0

24x10.6/9.8x15(13,20)

128

Φ88”/2200

8.0/9.0

24x11.0/10.2x15(13,20)

132

Φ100”/2500

9.0

24x11.4/10.6x15(13,20)

140

Φ120”/3000

9.5

24x12.4/11.6x15(13,20)

160

Φ140”/3500

9.5

24x12.4/11.6x15(13,20)

180

Other specifications are available upon request.
