Mexico Main Market ODM Customized Support 246.6/7.413mm Hard Granite Diamond Segment

Large Image : Mexico Main Market ODM Customized Support 24*6.6/7.4*13mm Hard Granite Diamond Segment

Product Details:

Place of Origin:	Jiangxi, China
Brand Name:	Linsing
Model Number:	Granite diamond segment

Payment & Shipping Terms:

Minimum Order Quantity:	200 pieces
Price:	$0.65/pieces 200-4999 pieces
Packaging Details:	waterproof and damage-proof standard packaging<br>carton box with Linsing logo<br>as the customer's requirement

Contact Now

Mexico Main Market ODM Customized Support 246.6/7.413mm Hard Granite Diamond Segment

Description

Warranty:	None	Customized Support:	OEM, ODM
Application:	Hard Granite Stone Cutting	Raw Material:	Metal Powder+High Grade Diamond
Quality:	Fast Cutting	Keywords:	Granite Diamond Segment
Main Market:	Vietnam; India; Indonesia; Russia; Mexico	Logo:	Linsing
Advantage:	Long Lifespan And Fast Cutting	Size:	247.6/8.413mm
Shape:	M Shape	Structure:	Layer

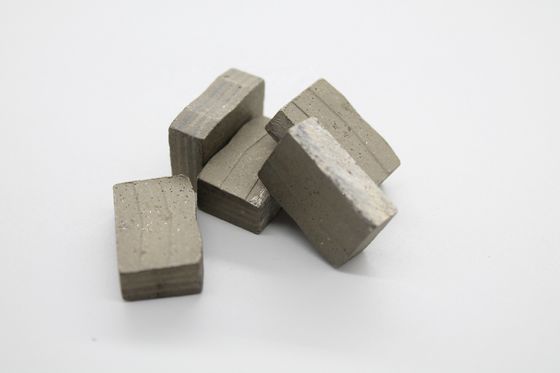

Diamond Segment For Granite Cutting

Granite cutting segment used for cutting granite. Linxing's granite cutting segments have the characteristics of a wide variety, strong pertinence, long life, high sharpness, and high-cost performance.

Product Features:
1. Good sharpness and high efficiency without chipping;
2. Strict QC for stable cutting performance;
3. Long life span with high cost-effective;
4. Segment is easy for opening.

Product Specification:

Blade Diameter(inch/mm)	Steel Core Thickness(mm)	Segment Specification(mm)	Segment No.(pcs)
Φ12”/300	2.2	40x3.2x10(12,15, 20)	21
Φ14”/350	2.2/2.4	40x3.2x10(12,15, 20)	24
Φ16”/400	2.6	40x3.6x10(12,15, 20)	28
Φ18”/450	2.8/3.0	40x4x10(12,15, 20)	32
Φ20”/500	3.0/3.2	40x4.2x10(12,15, 20)	36
Φ24”/600	3.6/3.8	40x5x10(12,15, 20)	42
Φ28”/700	4	40x5.2x10(12,15, 20)	50
Φ32”/800	4.5	40x6x10(12,15, 20)	46
Φ36”/900	5.0	24x7.0/6.2x15(13,20)	64
Φ40”/1000	5.0	24x7.0/6.2x15(13,20)	70
Φ48”/1200	5.5	24x7.4/6.6x15(13,20)	80
Φ52”/1300	6.0	24x8.0/7.2x15(13,20)	88
Φ56”/1400	6.5	24x8.4/7.6x15(13,20)	92
Φ64”/1600	7.2	24x9.2/8.4x15(13,20)	108
Φ72”/1800	7.5	24x10.0/9.2x15(13,20)	120
Φ80”/2000	8.0	24x10.6/9.8x15(13,20)	128
Φ88”/2200	8.0/9.0	24x11.0/10.2x15(13,20)	132
Φ100”/2500	9.0	24x11.4/10.6x15(13,20)	140
Φ120”/3000	9.5	24x12.4/11.6x15(13,20)	160
Φ140”/3500	9.5	24x12.4/11.6x15(13,20)	180

Other specifications are available upon request.
