Flat Shape Indonesia Sandstone Segment 24*9*15mm Single Disc Sandstone Cutter Tips Sandwich Layer Segment

Flat Shape Indonesia Sandstone Segment 24*9*15mm Single Disc Sandstone Cutter Tips Sandwich Layer Segment
Flat Shape Indonesia Sandstone Segment 24*9*15mm Single Disc Sandstone Cutter Tips Sandwich Layer Segment Flat Shape Indonesia Sandstone Segment 24*9*15mm Single Disc Sandstone Cutter Tips Sandwich Layer Segment Flat Shape Indonesia Sandstone Segment 24*9*15mm Single Disc Sandstone Cutter Tips Sandwich Layer Segment Flat Shape Indonesia Sandstone Segment 24*9*15mm Single Disc Sandstone Cutter Tips Sandwich Layer Segment Flat Shape Indonesia Sandstone Segment 24*9*15mm Single Disc Sandstone Cutter Tips Sandwich Layer Segment Flat Shape Indonesia Sandstone Segment 24*9*15mm Single Disc Sandstone Cutter Tips Sandwich Layer Segment

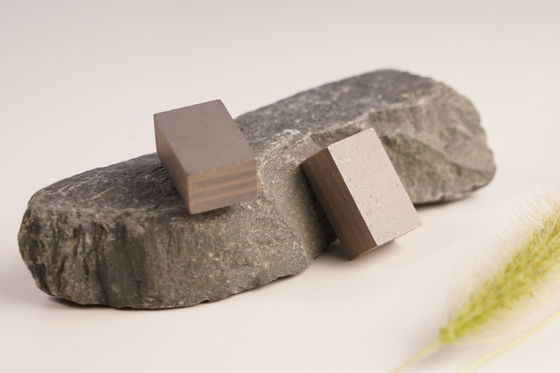

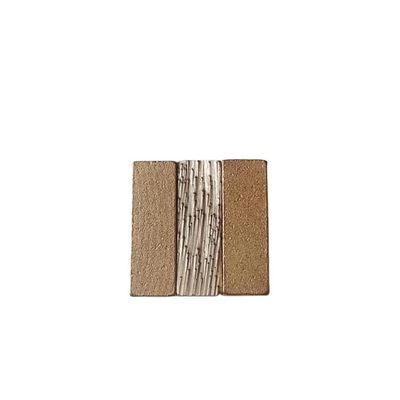

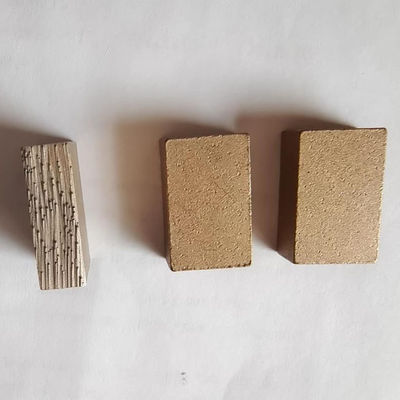

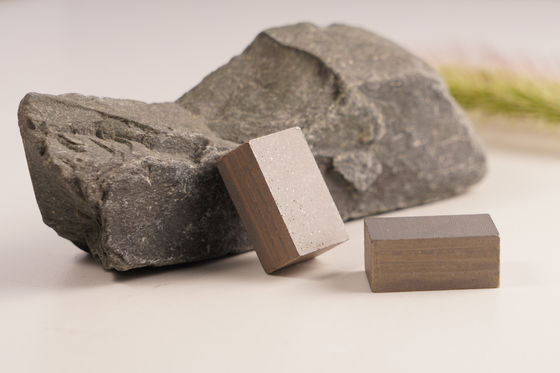

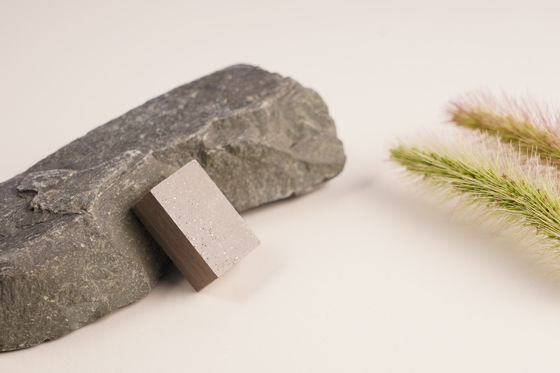

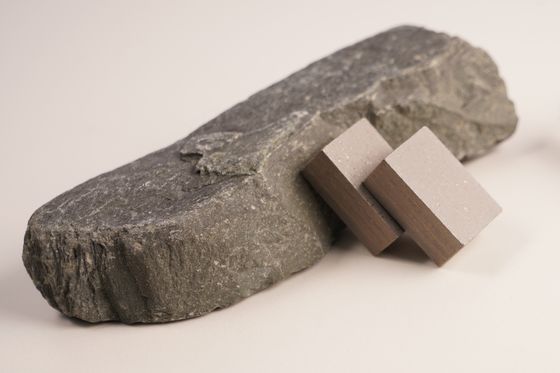

Large Image :  Flat Shape Indonesia Sandstone Segment 24*9*15mm Single Disc Sandstone Cutter Tips Sandwich Layer Segment

Product Details:
Place of Origin: Jiangxi, China
Brand Name: Linsing
Model Number: Sandstone segment
Payment & Shipping Terms:
Minimum Order Quantity: 200 pieces
Price: $0.80/pieces >=200 pieces
Packaging Details: Packed by Plastic paper Box With LINXING LOGO Carton, etc.
Supply Ability: 50000 Piece/Pieces per Week High Quality Diamond Segment

Flat Shape Indonesia Sandstone Segment 24*9*15mm Single Disc Sandstone Cutter Tips Sandwich Layer Segment

Description
Warranty: None Customized Support: OEM, ODM, OBM
Specification: 24*9*15mm Material: Metal, Iron Sheet And Diamond Powder
MOQ: 4 Sets Machine: Single Blade Machine
Advantage: Sharpness And Long Life Packing: Carton Box
Grade: High Quality Brand: Linsing
Application: Sandstone Cutting Shape: Flat Shape
Port: Shanghai, Shenzhen, Ningbo, Xiamen, Etc

Diamond segments for sandstone block & slab cutting:
The sandstone segment is used for cutting sandstone. The sandstone material is soft and easy to break the slab edge. Therefore, the sharpness requirements are very high. The sandstone segment produced by Linsing diamond segments is extremely acceptable, and our products can easily cut the Australian and Indian sandstone. Not only that, in terms of price and style, K-shape and M-shape segments also have strong cutting performance for special sandstones.



Linsing diamond segments features:
1. The segments have good sharpness and high efficiency in the process of cutting, meanwhile, it has a long lifespan.
2. Good cutting result: Smooth cutting, flat surface, and even size.
3. Stable cutting, narrow cutting gap, stone waste reduction.
4. M-shape segment is easy for the diamond opening.



Among the natural stones, there is a kind of stone called sandstone. It is natural sand and gravel and stone powder that passes through the water and continuously precipitates to form a stable structure. Later, through the movement of the earth’s crust, the river is called a mountain range, which forms the sandstone we see now Because it has been in the water for a long time during the formation process, the sandstone composition also contains iron oxide, clay, and other ingredients. Of course, most of it is still gravel. The biggest advantage of this material is that it is not afraid of water, so it is widely used for exterior walls and decorations. Walls, outdoor floors, stone carvings, etc.



Product Specification:

Blade Diameter (inch/mm)

Steel Core Thickness (mm)

Segment Specification

(mm)

Segment No.

(pcs)

Φ12”/300

2.2

40x3.2x10(12,15)

21

Φ14”/350

2.2/2.4

40x3.2x10(12,15)

24

Φ16”/400

2.6

40x3.6x10(12,15)

28

Φ18”/450

2.8/3.0

40x4x10(12,15)

32

Φ20”/500

3.0/3.2

40x4.2x10(12,15)

35

Φ24”/600

3.6/3.8

40x5x10(12,15)

36/42

Φ28”/700

4

40x5.2x10(12,15)

42

Φ32”/800

4.5

40x6x10(12,15)

46

Φ36”/900

5.0

24x7.0/6.2x15(13,20)

64

Φ40”/1000

5.0

24x7.0/6.2x15(13,20)

70

Φ48”/1200

5.5

24x7.4/6.6x15(13,20)

80

Φ52”/1300

6.0

24x8.0/7.2x15(13,20)

88

Φ54”/1350(For  India)

6.5

24x8.8/8.0x15(20)

88

Φ56”/1400

6.5

24x8.4/7.6x15(13,20)

92

Φ64”/1600

7.2

24x9.2/8.4x15(13,20)

108

Φ64”/1600(For  India)

7.2

24x9.6/8.8x15(20)

104

Φ72”/1800

7.5

24x10.0/9.2x15(13,20)

120

Φ72”/1800(For  India)

7.5

24x9.8/9.0x15(20)

120

Φ80”/2000

8.0

24x10.6/9.8x15(13,20)

128

Φ88”/2200

8.0/9.0

24x11.0/10.2x15(13,20)

132

Φ100”/2500

9.0

24x11.4/10.6x15(13,20)

140

Φ120”/3000

9.5

24x12.4/11.6x15(13,20)

160

Φ140”/3500

9.5

24x12.4/11.6x15(13,20)

180

Other specifications are available upon request.
