Hot Pressed Sintered Diamond Segment for Stone Cutting LINSING Arix Diamond Tips Tool

Name: Hot Pressed Sintered Diamond Segment for Stone Cutting LINSING Arix Diamond Tips Tool
Brand: LINSING
SKU: Arix diamond segment
Price: 1.20 USD
Availability: InStock
Rating: 4.7 (135 reviews)

All Products

Diamond Cutting Segment
(301)

Diamond Saw Blades
(281)

Diamond Wire Saw
(121)

Polishing Stone Abrasives
(345)

Diamond Drilling Tools
(47)

Diamond Cutting Discs
(101)

Floor Grinding Tools
(9)

Diamond Profiling Tools
(46)

Diamond Milling Tools
(35)

Stone Processing Equiments
(59)

PDC Cutter Tools
(2)

Ungrouped
(14)

Certification

I'm Online Chat Now

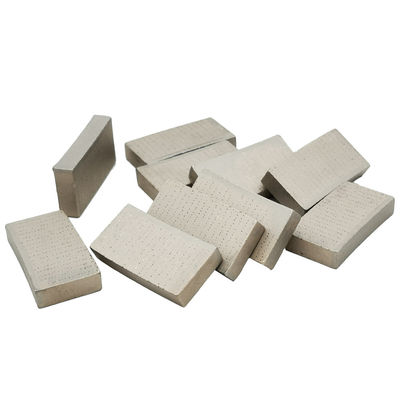

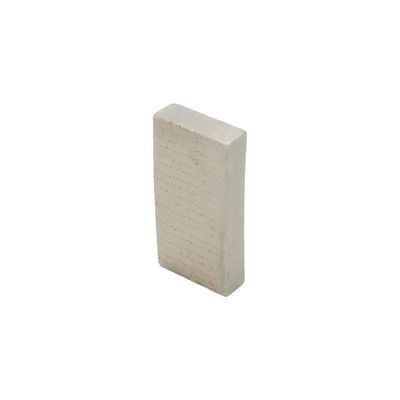

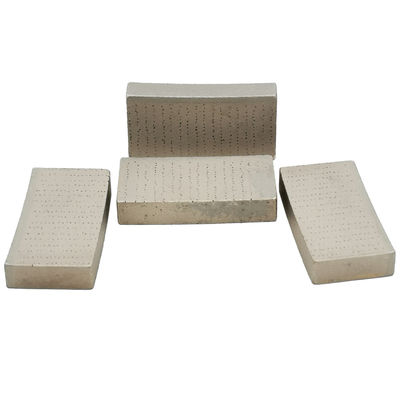

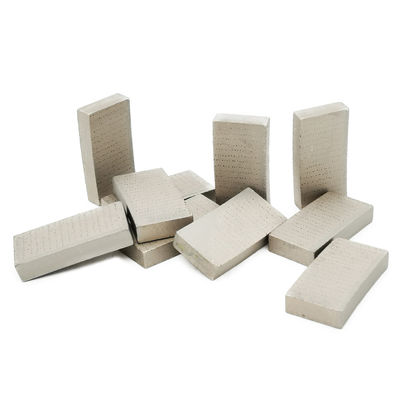

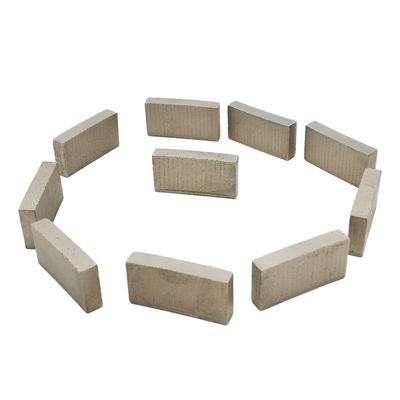

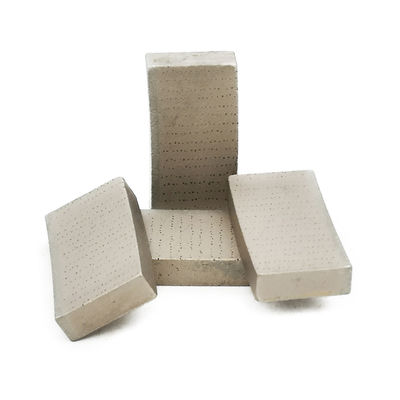

Hot Pressed Sintered Diamond Segment for Stone Cutting LINSING Arix Diamond Tips Tool

Large Image : Hot Pressed Sintered Diamond Segment for Stone Cutting LINSING Arix Diamond Tips Tool

Product Details:

Place of Origin:	Fujian, China
Brand Name:	LINSING
Model Number:	Arix diamond segment

Payment & Shipping Terms:

Minimum Order Quantity:	100 pieces
Price:	$1.20/pieces 100-999 pieces
Packaging Details:	Carton and wooden box
Supply Ability:	10000 Piece/Pieces per Day Arix diamond segment

Contact Now

Hot Pressed Sintered Diamond Segment for Stone Cutting LINSING Arix Diamond Tips Tool

Description

Warranty:	None	Customized Support:	OEM, ODM, OBM
Product Name:	Arix Diamond Segment	Keywords:	Diamond Segment
Application:	Stone Cutting	Material:	Diamond + Metal Powder
Usage:	Wet Use	Feature:	High Performance Cutting
Shape:	M, R, W, Fan Etc.	Length:	24mm
Grade:	A-Grade	Technology:	Hot Pressed Sintered Diamond Segment
Port:	Shanghai, Shenzhen, Ningbo, Xiamen, Etc

Diamond Segment For Granite Cutting

Granite cutting segment used for cutting granite. Linxing's granite cutting segments has the characteristics of wide variety, strong pertinence, long life, high sharpness and high cost performance.

Product Features:
1. Good sharpness and high efficiency without chipping;
2. Strict QC for stable cutting performance;
3. Long life span with high cost-effective;
4. Segment is easy for opening.

Product Specification:

Blade Diameter(inch/mm)	Steel Core Thickness(mm)	Segment Specification(mm)	Segment No.(pcs)
Φ12”/300	2.2	40x3.2x10(12,15, 20)	21
Φ14”/350	2.2/2.4	40x3.2x10(12,15, 20)	24
Φ16”/400	2.6	40x3.6x10(12,15, 20)	28
Φ18”/450	2.8/3.0	40x4x10(12,15, 20)	32
Φ20”/500	3.0/3.2	40x4.2x10(12,15, 20)	36
Φ24”/600	3.6/3.8	40x5x10(12,15, 20)	42
Φ28”/700	4	40x5.2x10(12,15, 20)	50
Φ32”/800	4.5	40x6x10(12,15, 20)	46
Φ36”/900	5.0	24x7.0/6.2x15(13,20)	64
Φ40”/1000	5.0	24x7.0/6.2x15(13,20)	70
Φ48”/1200	5.5	24x7.4/6.6x15(13,20)	80
Φ52”/1300	6.0	24x8.0/7.2x15(13,20)	88
Φ56”/1400	6.5	24x8.4/7.6x15(13,20)	92
Φ64”/1600	7.2	24x9.2/8.4x15(13,20)	108
Φ72”/1800	7.5	24x10.0/9.2x15(13,20)	120
Φ80”/2000	8.0	24x10.6/9.8x15(13,20)	128
Φ88”/2200	8.0/9.0	24x11.0/10.2x15(13,20)	132
Φ100”/2500	9.0	24x11.4/10.6x15(13,20)	140
Φ120”/3000	9.5	24x12.4/11.6x15(13,20)	160
Φ140”/3500	9.5	24x12.4/11.6x15(13,20)	180

Other specifications are available upon request.
