Sintered High Speed Segmented Non Silent Diamond Saw Blade Cutter For Marble Diamond Tools

Sintered High Speed Segmented Non Silent Diamond Saw Blade Cutter For Marble Diamond Tools
Sintered High Speed Segmented Non Silent Diamond Saw Blade Cutter For Marble Diamond Tools Sintered High Speed Segmented Non Silent Diamond Saw Blade Cutter For Marble Diamond Tools Sintered High Speed Segmented Non Silent Diamond Saw Blade Cutter For Marble Diamond Tools Sintered High Speed Segmented Non Silent Diamond Saw Blade Cutter For Marble Diamond Tools Sintered High Speed Segmented Non Silent Diamond Saw Blade Cutter For Marble Diamond Tools Sintered High Speed Segmented Non Silent Diamond Saw Blade Cutter For Marble Diamond Tools

Large Image :  Sintered High Speed Segmented Non Silent Diamond Saw Blade Cutter For Marble Diamond Tools

Product Details:
Place of Origin: Jiangxi, China
Brand Name: LINXING
Model Number: LXK-0446
Payment & Shipping Terms:
Minimum Order Quantity: 10 pieces
Price: $20.00/pieces 10-99 pieces
Packaging Details: Diamond Cutting Segment Packed by Plastic Box, LINXING LOGO Carton, etc.
Supply Ability: 1000 Set/Sets per Month Customize diamond Segment
Contact Now

Sintered High Speed Segmented Non Silent Diamond Saw Blade Cutter For Marble Diamond Tools

Description
Warranty: None Customized Support: OEM, ODM, OBM
Product: Diamond Saw Blade For Marble Cutting Raw Material: Diamond. Metal Powder, Etc
Application: Multiblade Manutacturing Arts: Sinter
Welding Method: High Frequency Brazed (Suggest) Quality: A Grade Segments
Packing: Plastic Paper, LINXING LOGO Carton Export Market: Global
Keywords: Silence Saw Blade Style: Luxury
Port: Shanghai, Shenzhen, Ningbo, Xiamen, Etc

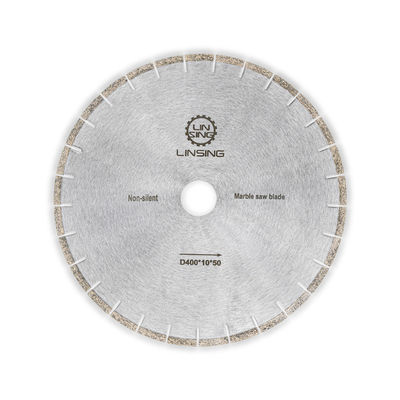

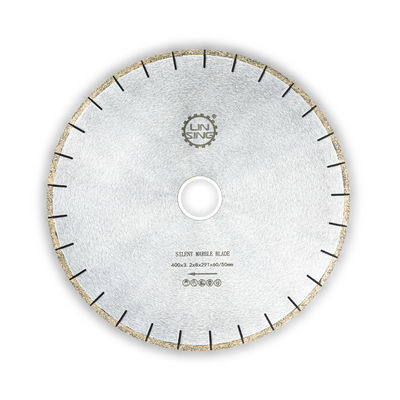

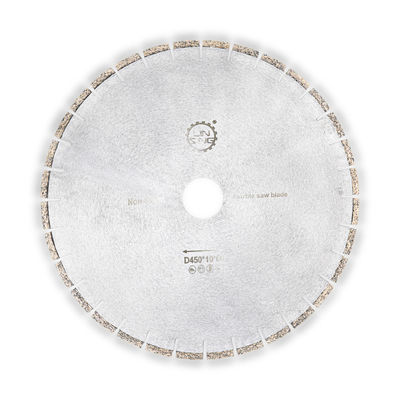

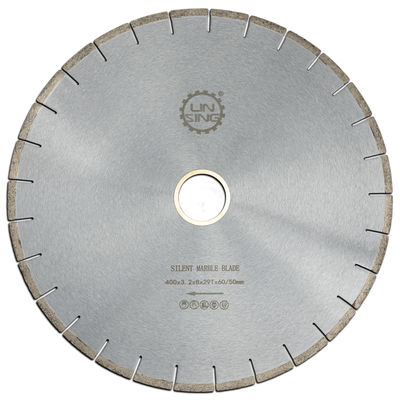

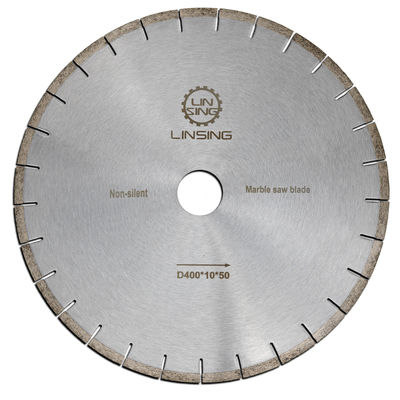

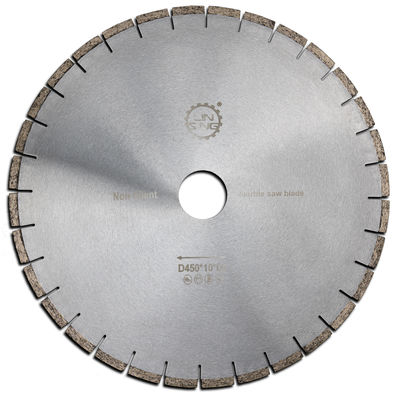

Diamond Saw Blade For Marble

The saw blade is a kind of diamond tool used for marble cutting. It has the characteristics of long life and good continuity, used on saw blade for cutting block and slab.

Product Features:
1. Cutting in high speed without chipping;
2. Strict quality inspection, long lifespan;
3. Stable cutting performance, high cost-effective;
4. Silent and non-silent blade are available.
Production Specification:

Diameter(inch/mm)

Steel Core Thickness(mm)

Segment Specification(mm)

Segment No.(pcs)

Φ12”/300

2.2

42/40x3.2x8(10)

22

Φ14”/350

2.2/2.4

42/40x3.4x8(10)

25

Φ16”/400

2.6

42/40x3.6x8(10)

29

Φ18”/450

2.8/3.0

40x4x8(10)

32

Φ20”/500

3.0/3.2

40x4.2x8(10)

36

Φ24”/600

3.6/3.8

40x5x8(10)

42

Φ28”/700

4

40x5.2x8(10)

50

Φ32”/800

4.5

40x6x8(10)

57

Φ36”/900

5.0

24x7.5x8(10,12,13,15)

64

Φ40”/1000

5.0

24x7.5x8(10,12,13,15)

70

Φ48”/1200

5.5

24x8.0x8(10,12,13,15)

80

Φ52”/1300

6.0

24x8.5x8(10,12,13,15)

88

Φ56”/1400

6.5

24x9.0x8(10,12,13,15)

92

Φ64”/1600

7.2

24x9.2x8(10,12,13,15)

108

Φ72”/1800

7.5

24x10x8(10,12,13,15)

120

Φ80”/2000

8.0

24x10.5x8(10,12,13,15)

128

Φ88”/2200

8.0/9.0

24x11x8(10,12,13,15)

132

Φ100”/2500

9.0

24x11x8(10,12,13,15)

140

Φ120”/3000

9.5

24x12x8(10,12,13,15)

160

Φ140”/3500

9.5

24x12x8(10,12,13,15)

180

Other specifications are available upon request.Sintered High Speed Segmented Non Silent Diamond Saw Blade Cutter For Marble Diamond Tools 0Sintered High Speed Segmented Non Silent Diamond Saw Blade Cutter For Marble Diamond Tools 1Sintered High Speed Segmented Non Silent Diamond Saw Blade Cutter For Marble Diamond Tools 2Sintered High Speed Segmented Non Silent Diamond Saw Blade Cutter For Marble Diamond Tools 3Sintered High Speed Segmented Non Silent Diamond Saw Blade Cutter For Marble Diamond Tools 4Sintered High Speed Segmented Non Silent Diamond Saw Blade Cutter For Marble Diamond Tools 5Sintered High Speed Segmented Non Silent Diamond Saw Blade Cutter For Marble Diamond Tools 6Sintered High Speed Segmented Non Silent Diamond Saw Blade Cutter For Marble Diamond Tools 7Sintered High Speed Segmented Non Silent Diamond Saw Blade Cutter For Marble Diamond Tools 8Sintered High Speed Segmented Non Silent Diamond Saw Blade Cutter For Marble Diamond Tools 9Sintered High Speed Segmented Non Silent Diamond Saw Blade Cutter For Marble Diamond Tools 10Sintered High Speed Segmented Non Silent Diamond Saw Blade Cutter For Marble Diamond Tools 11
