Fast Cutting Speed 1600mm Blade 20mm Height Segment for Granite Diamond Cutter Tool

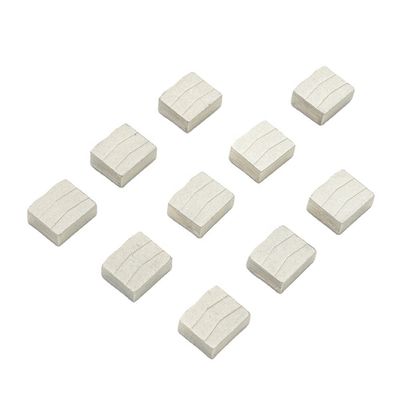

Large Image : Fast Cutting Speed 1600mm Blade 20mm Height Segment for Granite Diamond Cutter Tool

Product Details:

Place of Origin:	Jiangxi, China
Brand Name:	Linsing
Model Number:	G86299

Payment & Shipping Terms:

Minimum Order Quantity:	108 pieces
Price:	$0.80/pieces >=108 pieces
Packaging Details:	The inner packaging is plastic film and the outer packaging is carton. If the customer orders a large quantity, it will be packed in wooden cases and wooden frames.
Supply Ability:	50000 Piece/Pieces per Day

Contact Now

Fast Cutting Speed 1600mm Blade 20mm Height Segment for Granite Diamond Cutter Tool

Description

Warranty:	None	Customized Support:	OEM, ODM, OBM
Product Name:	Diamond Segment	Application:	Granite Cutting
Material:	Diamond + Metal Powder	Advantage:	Fast Cutting Speed
Shape:	M Shape	MOQ:	108pcs
Shipping:	FEDEX UPS EMS DHL TNT	Service:	After-sales Service
Payment:	TT; WESTERN UNION	Packing:	Carton
Port:	Shanghai, Shenzhen, Ningbo, Xiamen, Etc

Diamond Segment For Granite Cutting
Granite cutting segment used for cutting granite. Linxing's granite cutting segments have the characteristics of a wide variety, strong pertinence, long life, high sharpness, and high-cost performance.

Product features:
1. Good Sharpness: speedy cutting, low machine current, mining blocks are square with good flat surface.
2. Long Life: Reducing the times of re-welding, achieving high cutting linear meters.
3. Good Adaptability: Suitable for different stone and various complicated mining environments.
Product Specification:

Blade Diameter(inch/mm)	Steel Core Thickness(mm)	Segment Specification(mm)	Segment No.(pcs)
Φ12”/300	2.2	40x3.2x10(12,15, 20)	21
Φ14”/350	2.2/2.4	40x3.2x10(12,15, 20)	24
Φ16”/400	2.6	40x3.6x10(12,15, 20)	28
Φ18”/450	2.8/3.0	40x4x10(12,15, 20)	32
Φ20”/500	3.0/3.2	40x4.2x10(12,15, 20)	36
Φ24”/600	3.6/3.8	40x5x10(12,15, 20)	42
Φ28”/700	4	40x5.2x10(12,15, 20)	50
Φ32”/800	4.5	40x6x10(12,15, 20)	46
Φ36”/900	5.0	24x7.0/6.2x15(13,20)	64
Φ40”/1000	5.0	24x7.0/6.2x15(13,20)	70
Φ48”/1200	5.5	24x7.4/6.6x15(13,20)	80
Φ52”/1300	6.0	24x8.0/7.2x15(13,20)	88
Φ56”/1400	6.5	24x8.4/7.6x15(13,20)	92
Φ64”/1600	7.2	24x9.2/8.4x15(13,20)	108
Φ72”/1800	7.5	24x10.0/9.2x15(13,20)	120
Φ80”/2000	8.0	24x10.6/9.8x15(13,20)	128
Φ88”/2200	8.0/9.0	24x11.0/10.2x15(13,20)	132
Φ100”/2500	9.0	24x11.4/10.6x15(13,20)	140
Φ120”/3000	9.5	24x12.4/11.6x15(13,20)	160
Φ140”/3500	9.5	24x12.4/11.6x15(13,20)	180

Other specifications are available upon request.

Product Description

Fast Cutting Speed 1600mm Blade 20mm Height Segment for Granite Diamond Cutter Tool 0

Fast Cutting Speed 1600mm Blade 20mm Height Segment for Granite Diamond Cutter Tool 3

Linxing products

Fast Cutting Speed 1600mm Blade 20mm Height Segment for Granite Diamond Cutter Tool 13

FAQ

Fast Cutting Speed 1600mm Blade 20mm Height Segment for Granite Diamond Cutter Tool 16

Packaging & Shipping

Fast Cutting Speed 1600mm Blade 20mm Height Segment for Granite Diamond Cutter Tool 17

Our Services

Fast Cutting Speed 1600mm Blade 20mm Height Segment for Granite Diamond Cutter Tool 18

Contact Details
