Dry Wet Cutting Laser Weld Diamond Saw Blade Blade Width 2.2-3.2mm High Cutting Speed

Dry Wet Cutting Laser Weld Diamond Saw Blade Blade Width 2.2-3.2mm High Cutting Speed
Dry Wet Cutting Laser Weld Diamond Saw Blade Blade Width 2.2-3.2mm High Cutting Speed Dry Wet Cutting Laser Weld Diamond Saw Blade Blade Width 2.2-3.2mm High Cutting Speed Dry Wet Cutting Laser Weld Diamond Saw Blade Blade Width 2.2-3.2mm High Cutting Speed Dry Wet Cutting Laser Weld Diamond Saw Blade Blade Width 2.2-3.2mm High Cutting Speed Dry Wet Cutting Laser Weld Diamond Saw Blade Blade Width 2.2-3.2mm High Cutting Speed Dry Wet Cutting Laser Weld Diamond Saw Blade Blade Width 2.2-3.2mm High Cutting Speed

Large Image :  Dry Wet Cutting Laser Weld Diamond Saw Blade Blade Width 2.2-3.2mm High Cutting Speed

Product Details:
Place of Origin: Jiangxi, China
Brand Name: LINSING
Certification: TUV
Model Number: Laser Weld Diamond Saw Blade
Payment & Shipping Terms:
Minimum Order Quantity: 10 pieces
Price: $12.00/pieces 10-99 pieces
Packaging Details: Plastic+Carton
Supply Ability: 5000 Piece/Pieces per Week
Contact Now

Dry Wet Cutting Laser Weld Diamond Saw Blade Blade Width 2.2-3.2mm High Cutting Speed

Description
Warranty: None Blade Thickness: 1.4-2.2mm
Blade Width: 2.2-3.2mm Arbor Size: 7/8IN, 10mm, 5/8in
Teeth Per Inch: 10, 24 Teeths: 140, 144
Blade Length: 32-40mm Blade Diameter: 105-400mm
Edge Height: 0.315in(8mm), 0.472in(12mm) Process Type: Laser Welded
Customized Support: OEM, ODM, OBM Finishing: CrN
Size: 105-400MM Grade: Industrial
Product Name: Laser Weld Diamond Saw Blade Material: Diamond+Metal
Application: Dry Wet Cutting Feature: Safe Operation
Type: Laser Weld Use For: Stone,Concere, Etc
Shape: Circualr Package: Carton
Diameter: 105-400mm

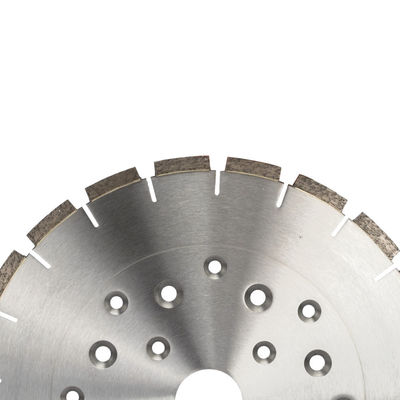

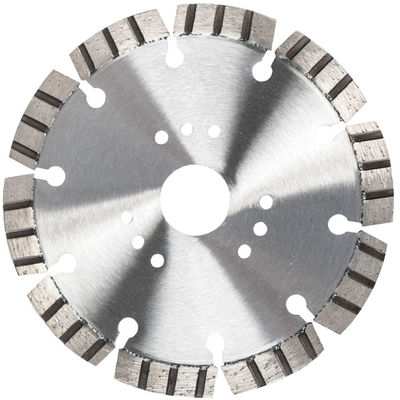

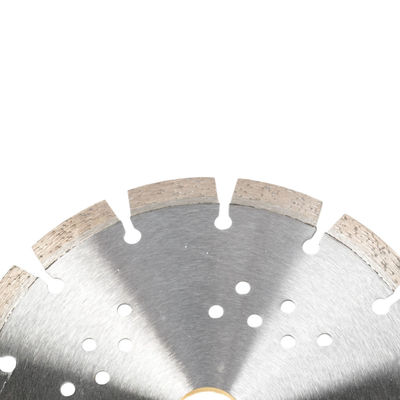

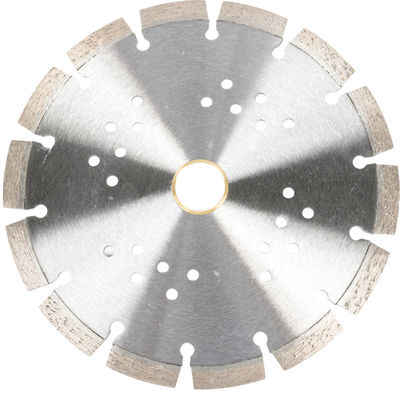

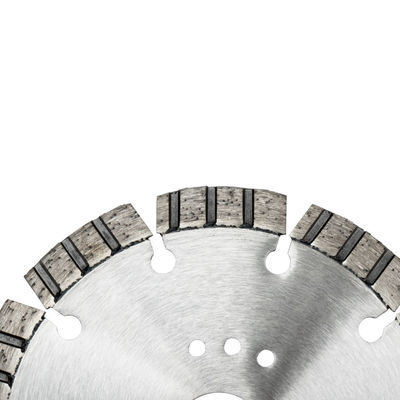

Laser Weld Diamond Saw Blade

This saw blade adopts laser welding process. Laser welding technology enables the manufacturing process to be highly automated,resulting in greatly improved stability and stronger adhesion of the diamonds to the metal substrate.The result is improved efficiency ,cutting life and operator safety.

Product Feature:
1. Laser welded ensures the safe operation;
2. Multi-purpose application and OEM service available;
3. Both dry and wet cutting are available.

Product Specification:

Diameter

(inch/mm)

Steel Core Thickness

(mm)

Segment Specification

(mm)

Segment No.

(pcs)

Φ4”/105

1.4

32×2.2×10(2)

8

Φ4.5”/115

1.4

32×2.2×10(2)

9

Φ5”/125

1.4

32×2.2×10(2)

10

Φ6”/150

1.4

32×2.2×10(2)

12

Φ7”/180

1.8

32×2.6×10(2)

14

Φ8”/200

1.8

32×2.6×10(2)

16

Φ9”/230

2.0

38×2.8×10(2)

16

Φ10”/250

2.0

38×2.8×10(2)

17

Φ12”/300

2.2

40×3.2×10(2)

21

Φ14”/350

2.2

40×3.2×10(2)

24

Φ16”/400

2.2

40×3.2×10(2)

28

Other specifications are available upon request.Dry Wet Cutting Laser Weld Diamond Saw Blade Blade Width 2.2-3.2mm High Cutting Speed 0Dry Wet Cutting Laser Weld Diamond Saw Blade Blade Width 2.2-3.2mm High Cutting Speed 1Dry Wet Cutting Laser Weld Diamond Saw Blade Blade Width 2.2-3.2mm High Cutting Speed 2Dry Wet Cutting Laser Weld Diamond Saw Blade Blade Width 2.2-3.2mm High Cutting Speed 3Dry Wet Cutting Laser Weld Diamond Saw Blade Blade Width 2.2-3.2mm High Cutting Speed 4Dry Wet Cutting Laser Weld Diamond Saw Blade Blade Width 2.2-3.2mm High Cutting Speed 5Dry Wet Cutting Laser Weld Diamond Saw Blade Blade Width 2.2-3.2mm High Cutting Speed 6Dry Wet Cutting Laser Weld Diamond Saw Blade Blade Width 2.2-3.2mm High Cutting Speed 7Dry Wet Cutting Laser Weld Diamond Saw Blade Blade Width 2.2-3.2mm High Cutting Speed 8Dry Wet Cutting Laser Weld Diamond Saw Blade Blade Width 2.2-3.2mm High Cutting Speed 9Dry Wet Cutting Laser Weld Diamond Saw Blade Blade Width 2.2-3.2mm High Cutting Speed 10Dry Wet Cutting Laser Weld Diamond Saw Blade Blade Width 2.2-3.2mm High Cutting Speed 11
