1.4-2.2mm Blade Thickness Laser Weld Diamond Saw Blade for Stone Concrete Cutting

1.4-2.2mm Blade Thickness Laser Weld Diamond Saw Blade for Stone Concrete Cutting
1.4-2.2mm Blade Thickness Laser Weld Diamond Saw Blade for Stone Concrete Cutting 1.4-2.2mm Blade Thickness Laser Weld Diamond Saw Blade for Stone Concrete Cutting 1.4-2.2mm Blade Thickness Laser Weld Diamond Saw Blade for Stone Concrete Cutting 1.4-2.2mm Blade Thickness Laser Weld Diamond Saw Blade for Stone Concrete Cutting 1.4-2.2mm Blade Thickness Laser Weld Diamond Saw Blade for Stone Concrete Cutting 1.4-2.2mm Blade Thickness Laser Weld Diamond Saw Blade for Stone Concrete Cutting

Large Image :  1.4-2.2mm Blade Thickness Laser Weld Diamond Saw Blade for Stone Concrete Cutting

Product Details:
Place of Origin: Jiangxi, China
Brand Name: LINSING
Certification: TUV
Model Number: Laser Weld Diamond Saw Blade
Payment & Shipping Terms:
Minimum Order Quantity: 10 pieces
Price: $12.00/pieces 10-99 pieces
Packaging Details: Plastic+Carton
Supply Ability: 5000 Piece/Pieces per Week
Contact Now

1.4-2.2mm Blade Thickness Laser Weld Diamond Saw Blade for Stone Concrete Cutting

Description
Warranty: None Blade Thickness: 1.4-2.2mm
Blade Width: 2.2-3.2mm Arbor Size: 7/8IN, 10mm, 5/8in
Teeth Per Inch: 10, 24 Teeths: 140, 144
Blade Length: 32-40mm Blade Diameter: 105-400mm
Edge Height: 0.315in(8mm), 0.472in(12mm) Process Type: Laser Welded
Customized Support: OEM, ODM, OBM Finishing: CrN
Size: 105-400MM Grade: Industrial
Product Name: Laser Weld Diamond Saw Blade Material: Diamond+Metal
Application: Dry Wet Cutting Feature: Safe Operation
Type: Laser Weld Use For: Stone,Concere, Etc
Shape: Circualr Package: Carton
Diameter: 105-400mm

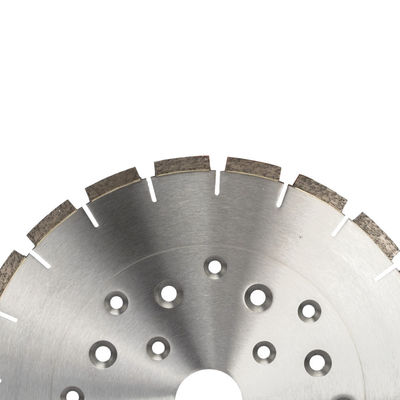

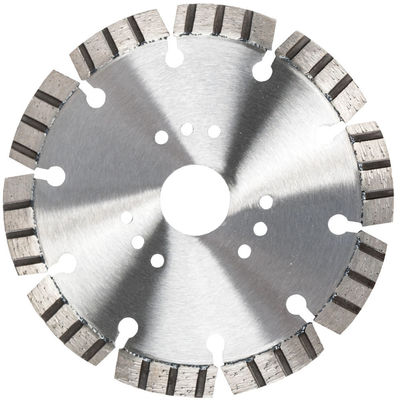

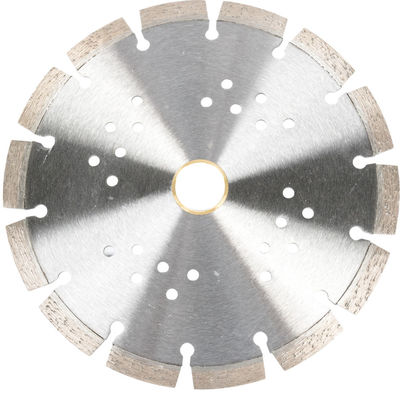

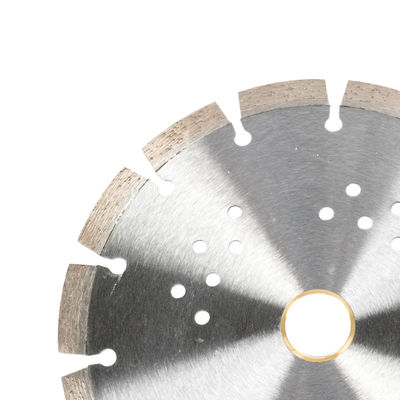

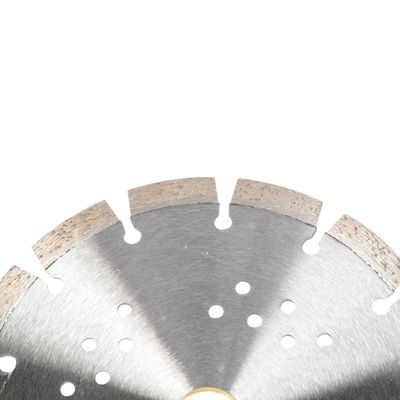

Laser Weld Diamond Saw Blade

This saw blade adopts laser welding process. Laser welding technology enables the manufacturing process to be highly automated,resulting in greatly improved stability and stronger adhesion of the diamonds to the metal substrate.The result is improved efficiency ,cutting life and operator safety.

Product Feature:
1. Laser welded ensures the safe operation;
2. Multi-purpose application and OEM service available;
3. Both dry and wet cutting are available.

Product Specification:

Diameter

(inch/mm)

Steel Core Thickness

(mm)

Segment Specification

(mm)

Segment No.

(pcs)

Φ4”/105

1.4

32×2.2×10(2)

8

Φ4.5”/115

1.4

32×2.2×10(2)

9

Φ5”/125

1.4

32×2.2×10(2)

10

Φ6”/150

1.4

32×2.2×10(2)

12

Φ7”/180

1.8

32×2.6×10(2)

14

Φ8”/200

1.8

32×2.6×10(2)

16

Φ9”/230

2.0

38×2.8×10(2)

16

Φ10”/250

2.0

38×2.8×10(2)

17

Φ12”/300

2.2

40×3.2×10(2)

21

Φ14”/350

2.2

40×3.2×10(2)

24

Φ16”/400

2.2

40×3.2×10(2)

28

Other specifications are available upon request.1.4-2.2mm Blade Thickness Laser Weld Diamond Saw Blade for Stone Concrete Cutting 01.4-2.2mm Blade Thickness Laser Weld Diamond Saw Blade for Stone Concrete Cutting 11.4-2.2mm Blade Thickness Laser Weld Diamond Saw Blade for Stone Concrete Cutting 21.4-2.2mm Blade Thickness Laser Weld Diamond Saw Blade for Stone Concrete Cutting 31.4-2.2mm Blade Thickness Laser Weld Diamond Saw Blade for Stone Concrete Cutting 41.4-2.2mm Blade Thickness Laser Weld Diamond Saw Blade for Stone Concrete Cutting 51.4-2.2mm Blade Thickness Laser Weld Diamond Saw Blade for Stone Concrete Cutting 61.4-2.2mm Blade Thickness Laser Weld Diamond Saw Blade for Stone Concrete Cutting 71.4-2.2mm Blade Thickness Laser Weld Diamond Saw Blade for Stone Concrete Cutting 81.4-2.2mm Blade Thickness Laser Weld Diamond Saw Blade for Stone Concrete Cutting 91.4-2.2mm Blade Thickness Laser Weld Diamond Saw Blade for Stone Concrete Cutting 101.4-2.2mm Blade Thickness Laser Weld Diamond Saw Blade for Stone Concrete Cutting 11
