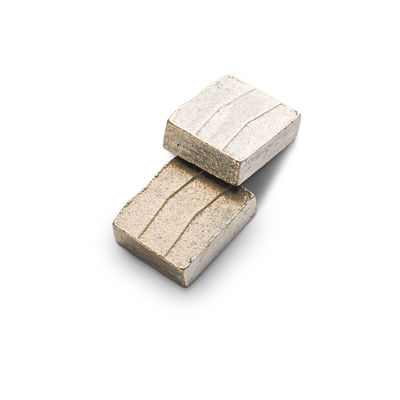

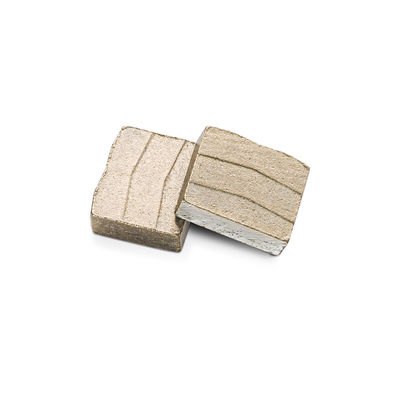

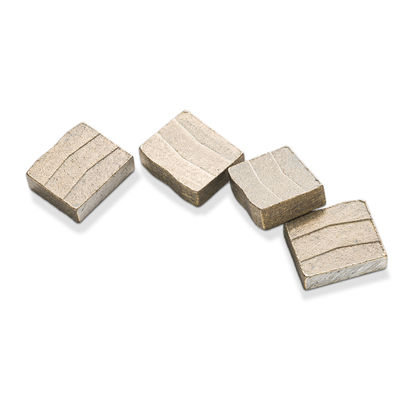

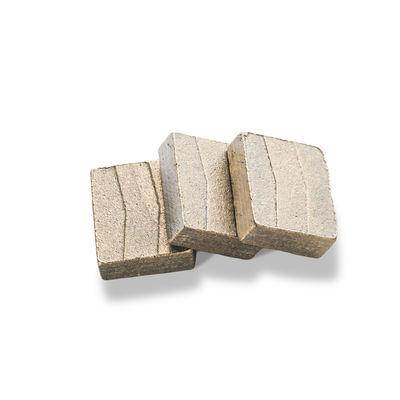

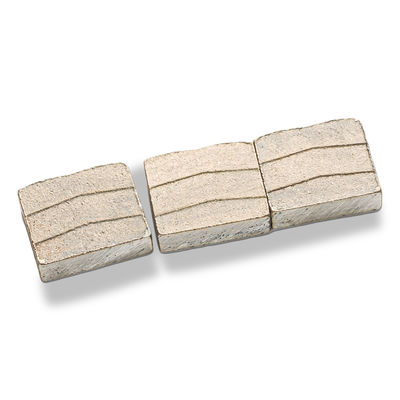

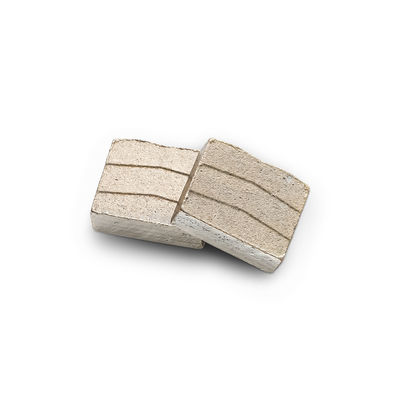

Multi-layer Diamond Tip Segments for Wet Granite Block Stone Cutting on Multiblade Saw

Multi-layer Diamond Tip Segments for Wet Granite Block Stone Cutting on Multiblade Saw
Multi-layer Diamond Tip Segments for Wet Granite Block Stone Cutting on Multiblade Saw Multi-layer Diamond Tip Segments for Wet Granite Block Stone Cutting on Multiblade Saw Multi-layer Diamond Tip Segments for Wet Granite Block Stone Cutting on Multiblade Saw Multi-layer Diamond Tip Segments for Wet Granite Block Stone Cutting on Multiblade Saw Multi-layer Diamond Tip Segments for Wet Granite Block Stone Cutting on Multiblade Saw Multi-layer Diamond Tip Segments for Wet Granite Block Stone Cutting on Multiblade Saw

Large Image :  Multi-layer Diamond Tip Segments for Wet Granite Block Stone Cutting on Multiblade Saw

Product Details:
Place of Origin: Jiangxi, China
Brand Name: LINSING
Certification: Tuv
Model Number: 24*7.4/6.6*20mm
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pieces
Price: $0.68/pieces 1000-9999 pieces
Packaging Details: Plastic+Carton
Supply Ability: 100000 Piece/Pieces per Day Diamond segment for granite cutting
Contact Now

Multi-layer Diamond Tip Segments for Wet Granite Block Stone Cutting on Multiblade Saw

Description
Warranty: None Customized Support: OEM, ODM, OBM
Product Name: Diamond Segment Application: Granite, Basalt, Quartz Stone Etc.
Material: Diamond + Metal Powder Usage: Wet Cutting
Type: Multi-layer Segment Feature: High Performance Cutting
Advantage: 20 Years Experience Grade: A-Grade
Shape: M Shape Port: Xiamen, Ningbo, Shanghai, Shenzhen, Guangzhou,Tianjing Etc.

Diamond Segment For Granite Cutting

Granite cutting segment used for cutting granite. Linxing's granite cutting segments has the characteristics of wide variety, strong pertinence, long life, high sharpness and high cost performance.



Product Features:
1. Good sharpness and high efficiency without chipping;
2. Strict QC for stable cutting performance;
3. Long life span with high cost-effective;
4. Segment is easy for opening.

Product Specification:

Blade Diameter(inch/mm)

Steel Core Thickness(mm)

Segment Specification(mm)

Segment No.(pcs)

Φ12”/300

2.2

40x3.2x10(12,15, 20)

21

Φ14”/350

2.2/2.4

40x3.2x10(12,15, 20)

24

Φ16”/400

2.6

40x3.6x10(12,15, 20)

28

Φ18”/450

2.8/3.0

40x4x10(12,15, 20)

32

Φ20”/500

3.0/3.2

40x4.2x10(12,15, 20)

36

Φ24”/600

3.6/3.8

40x5x10(12,15, 20)

42

Φ28”/700

4

40x5.2x10(12,15, 20)

50

Φ32”/800

4.5

40x6x10(12,15, 20)

46

Φ36”/900

5.0

24x7.0/6.2x15(13,20)

64

Φ40”/1000

5.0

24x7.0/6.2x15(13,20)

70

Φ48”/1200

5.5

24x7.4/6.6x15(13,20)

80

Φ52”/1300

6.0

24x8.0/7.2x15(13,20)

88

Φ56”/1400

6.5

24x8.4/7.6x15(13,20)

92

Φ64”/1600

7.2

24x9.2/8.4x15(13,20)

108

Φ72”/1800

7.5

24x10.0/9.2x15(13,20)

120

Φ80”/2000

8.0

24x10.6/9.8x15(13,20)

128

Φ88”/2200

8.0/9.0

24x11.0/10.2x15(13,20)

132

Φ100”/2500

9.0

24x11.4/10.6x15(13,20)

140

Φ120”/3000

9.5

24x12.4/11.6x15(13,20)

160

Φ140”/3500

9.5

24x12.4/11.6x15(13,20)

180

Other specifications are available upon request.
