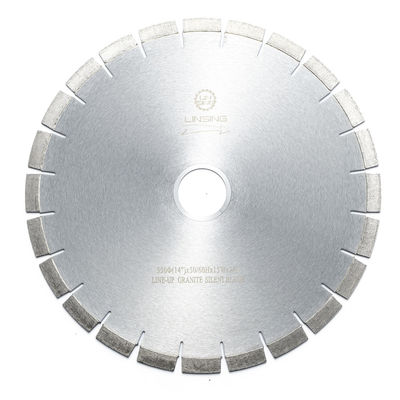

D350mm Segmented Arix Diamond Circular Saw Blade For Granite Cutting Diamond Tools

Large Image : D350mm Segmented Arix Diamond Circular Saw Blade For Granite Cutting Diamond Tools

Product Details:

Place of Origin:	Jiangxi, China
Brand Name:	LINSING
Certification:	TUV
Model Number:	Arix Diamond Circular Saw Blade

Payment & Shipping Terms:

Minimum Order Quantity:	10 pieces
Price:	$25.00/pieces 10-99 pieces

Contact Now

D350mm Segmented Arix Diamond Circular Saw Blade For Granite Cutting Diamond Tools

Description

Warranty:	None	Blade Thickness:	2.2-3.0mm
Blade Width:	3.2-4.2mm	Arbor Size:	7/8IN, 10mm, 5/8in
Teeth Per Inch:	24	Teeths:	144
Blade Length:	43mm	Blade Diameter:	300-450mm
Edge Height:	0.315in(8mm), 0.472in(12mm)	Process Type:	HOT PRESS, Cold PRESS
Customized Support:	OEM, ODM, OBM	Finishing:	Ti-coated
Size:	350MM	Grade:	Industrial, A+
Product Name:	Arix Diamond Circular Saw Blade	Material:	Diamond Powder+Alloy Steel
Feature:	High-efficiency Cutting	Advantage:	Fast Cutting
Application:	Granite Cutting	Segment Type:	Fan-shaped
Segment Sharp:	Sandwich,Layer, Etc	Thickness:	2.2-3.0mm

Arix Diamond Circular Saw Blade

Arix saw blade(arrayed saw blade) is a high-quality sawing product with high sharpness and long service life, which is specially used for granite cutting. Its sharpness is about 30% higher than that of general saw blades. The incision is smooth, without edge collapse, with excellent stable cutting performance.

Product Feature:
1. Higher cutting efficiency and low energy consumption than normal blade;
2. Effectively reduce noise and protect the environment;
3. It can be widely used on various power machines;
4. Application: Granite cutting.
Product Specification:

Diameter(inch/mm)	Steel Core Thickness(mm)	Segment Specification(mm)	Segment No.(pcs)
Φ12”/300	2.2	43/40×3.2×12(15,20)	21
Φ14”/350	2.2	43/40×3.2×12(15,20)	24
Φ16”/400	2.6	43/40×3.6×12(15,20)	28
Φ18”/450	3.0	43/40×4.2×12(15,20)	32

Other specifications are available upon request. D350mm Segmented Arix Diamond Circular Saw Blade For Granite Cutting Diamond Tools 0
