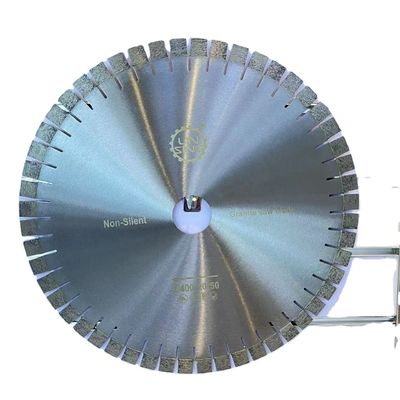

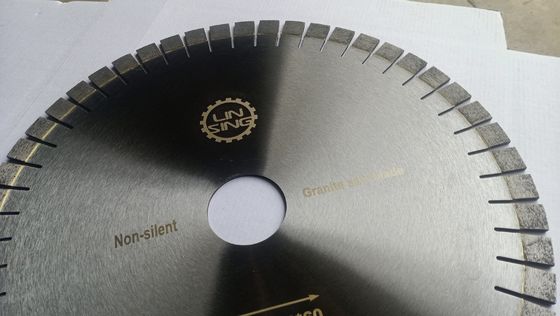

400mm U-slot Blade for Granite Cutting Saw Disc Diamond Tool Granite 20mm Height

400mm U-slot Blade for Granite Cutting Saw Disc Diamond Tool Granite 20mm Height
400mm U-slot Blade for Granite Cutting Saw Disc Diamond Tool Granite 20mm Height 400mm U-slot Blade for Granite Cutting Saw Disc Diamond Tool Granite 20mm Height 400mm U-slot Blade for Granite Cutting Saw Disc Diamond Tool Granite 20mm Height 400mm U-slot Blade for Granite Cutting Saw Disc Diamond Tool Granite 20mm Height 400mm U-slot Blade for Granite Cutting Saw Disc Diamond Tool Granite 20mm Height 400mm U-slot Blade for Granite Cutting Saw Disc Diamond Tool Granite 20mm Height

Large Image :  400mm U-slot Blade for Granite Cutting Saw Disc Diamond Tool Granite 20mm Height

Product Details:
Place of Origin: Jiangxi, China
Brand Name: Linsing
Model Number: Diamond saw blade
Payment & Shipping Terms:
Minimum Order Quantity: 10 pieces
Price: $22.00/pieces >=10 pieces
Packaging Details: Carton
Supply Ability: 250 Piece/Pieces per Day
Contact Now

400mm U-slot Blade for Granite Cutting Saw Disc Diamond Tool Granite 20mm Height

Description
Warranty: None Blade Thickness: 2.8mm
Blade Width: 20mm Arbor Size: 60/50mm
Teeth Per Inch: 52 Teeths: 52
Blade Length: 20mm Blade Diameter: 400mm
Process Type: HOT PRESS, High Frequency Welded Customized Support: OEM, ODM, OBM
Finishing: Ti-coated Size: D400, 2.8T, 20*3.6*20, 52Z, H50mm
Grade: Industrial Application: Granite
Product Name: Diamond Saw Blade Advantage: Sharpness
MOQ: 10pcs Service: Cusstomized Size
Quality: Warranted Material: Diamond Powder
Feature: No Chipping Color: Customized Color
Diameter: 400mm Port: Shanghai, Shenzhen, Ningbo, Xiamen, Etc

Diamond Saw Blade For Granite
The saw blade used for cutting granite has the characteristics of high sharpness, good wear resistance, and a long lifespan.

Diamond Saw Blade For Dekton
Diamond saw blade for dekton higher grade diamond with a specific bond brings the operators a fantastic experience of fast cutting.

J-Slot Diamond Saw Blade
J slot diamond saw blade with J slot utilizes special grade diamond for smooth fast cutting and long life. Distinctive J-slot core for improved precision, stability, reduced cutting noise, and superior cooling. The blade is used to cut ceramic tile, porcelain tile, granite & marble tiles, it is designed to be used wet only.

Diamond Saw Blade For Marble
The saw blade is a kind of diamond tool used for marble cutting. It has the characteristics of long life and good continuity, used on saw blades for cutting blocks and slabs.

Product Features:
1. Cutting at high speed without chipping;
2. Strict quality inspection, long lifespan;
3. Stable cutting performance, high cost-effective;
4. Silent and non-silent blades are available.
Product specification:

Diameter(inch/mm)

Steel Core Thickness(mm)

Segment Specification(mm)

Segment No.(pcs)

Φ12”/300

2.2

40x3.2x10(12,15,20)

21

Φ14”/350

2.2/2.4

40x3.2x10(12,15,20)

24

Φ16”/400

2.6

40x3.6x10(12,15,20)

28

Φ18”/450

2.8/3.0

40x4x10(12,15,20)

32

Φ20”/500

3.0/3.2

40x4x10(12,15,20)

36

Φ24”/600

3.6/3.8

40x5x10(12,15,20)

42

Φ28”/700

4

40x5.2x10(12,15,20)

50

Φ32”/800

4.5

40x6x10(12,15,20)

46

Φ36”/900

5.0

24x7.0/6.2x15(13,20)

64

Φ40”/1000

5.0

24x7.0/6.2x15(13,20)

70

Φ48”/1200

5.5

24x7.4/6.6x15(13,20)

80

Φ52”/1300

6.0

24x8.0/7.2x15(13,20)

88

Φ56”/1400

6.5

24x8.4/7.6x15(13,20)

92

Φ64”/1600

7.2

24x9.2/8.4x15(13,20)

108

Φ72”/1800

7.5

24x10.0/9.2x15(13,20)

120

Φ80”/2000

8.0

24x10.6/9.8x15(13,20)

128

Φ88”/2200

8.0/9.0

24x11.0/10.2x15(13,20)

132

Φ100”/2500

9.0

24x11.4/10.6x15(13,20)

140

Φ120”/3000

9.5

24x12.4/11.6x15(13,20)

160

Φ140”/3500

9.5

24x12.4/11.6x15(13,20)

180

Other specifications are available upon request.

Product Description

 400mm U-slot Blade for Granite Cutting Saw Disc Diamond Tool Granite 20mm Height 0400mm U-slot Blade for Granite Cutting Saw Disc Diamond Tool Granite 20mm Height 1400mm U-slot Blade for Granite Cutting Saw Disc Diamond Tool Granite 20mm Height 2400mm U-slot Blade for Granite Cutting Saw Disc Diamond Tool Granite 20mm Height 3400mm U-slot Blade for Granite Cutting Saw Disc Diamond Tool Granite 20mm Height 4400mm U-slot Blade for Granite Cutting Saw Disc Diamond Tool Granite 20mm Height 5400mm U-slot Blade for Granite Cutting Saw Disc Diamond Tool Granite 20mm Height 6400mm U-slot Blade for Granite Cutting Saw Disc Diamond Tool Granite 20mm Height 7400mm U-slot Blade for Granite Cutting Saw Disc Diamond Tool Granite 20mm Height 8







400mm U-slot Blade for Granite Cutting Saw Disc Diamond Tool Granite 20mm Height 9400mm U-slot Blade for Granite Cutting Saw Disc Diamond Tool Granite 20mm Height 10

400mm U-slot Blade for Granite Cutting Saw Disc Diamond Tool Granite 20mm Height 11400mm U-slot Blade for Granite Cutting Saw Disc Diamond Tool Granite 20mm Height 12400mm U-slot Blade for Granite Cutting Saw Disc Diamond Tool Granite 20mm Height 13400mm U-slot Blade for Granite Cutting Saw Disc Diamond Tool Granite 20mm Height 14400mm U-slot Blade for Granite Cutting Saw Disc Diamond Tool Granite 20mm Height 15
