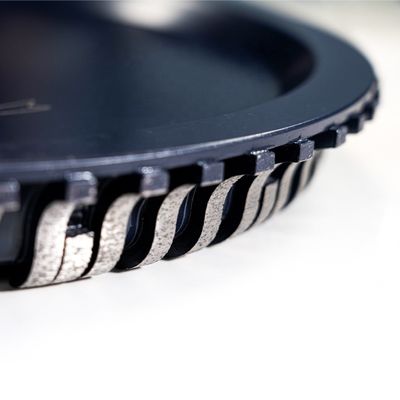

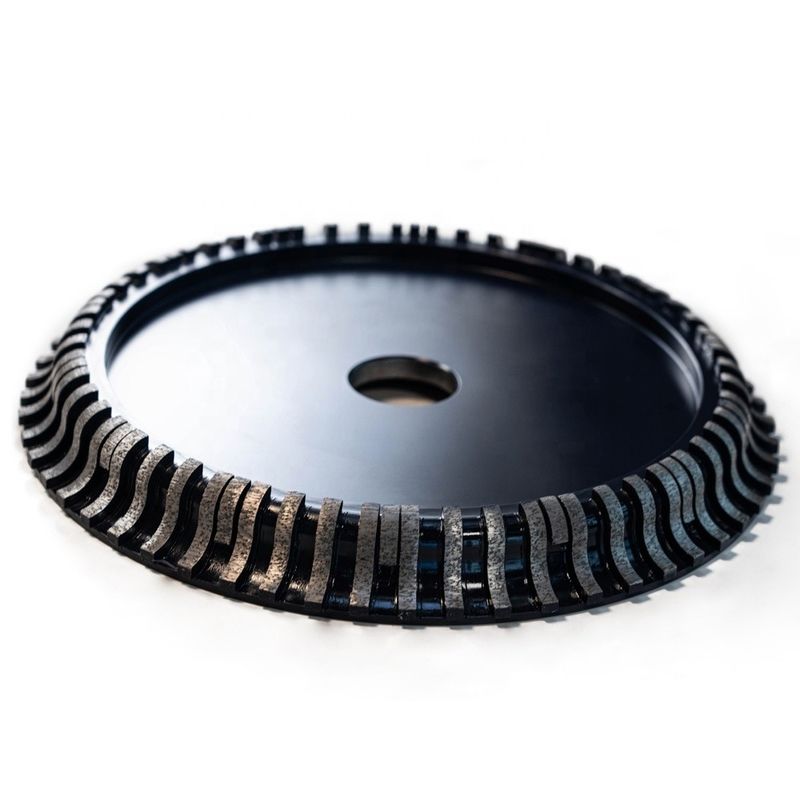

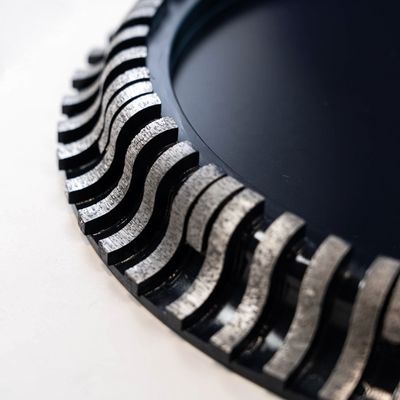

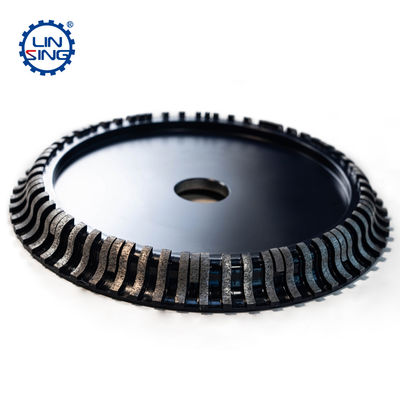

350mm F20 H50mm Diamond Grinding Wheel for Granite Edge Profiling and Reconstructing

Large Image : 350mm F20 H50mm Diamond Grinding Wheel for Granite Edge Profiling and Reconstructing

Product Details:

Place of Origin:	Jiangxi, China
Brand Name:	Linsing
Model Number:	Diamond profiling and grinding wheel

Payment & Shipping Terms:

Minimum Order Quantity:	2 pieces
Price:	$75.00/pieces >=2 pieces
Packaging Details:	Carton
Supply Ability:	200 Piece/Pieces per Day

Contact Now

350mm F20 H50mm Diamond Grinding Wheel for Granite Edge Profiling and Reconstructing

Description

Warranty:	None	Customized Support:	OEM, ODM, OBM
Application:	Profiling Stone Slab	Material:	Metal Powder Diamond Resin
Product Name:	Diamond Profiling Wheel	Feature:	High Performance Cutting
MOQ:	1 Set	Size:	350mmF20H50mm
Packing:	Carton	Shipping:	FEDEX UPS EMS DHL TNT SEA
Service:	After-sales Service	Quality:	High-quality
Port:	Shanghai, Shenzhen, Ningbo, Xiamen, Etc

Diamond Grinding Wheel For Profiling
Diamond grinding wheel for profiling adopts the production process of arc welding &vacuum sintering, which can improve the grinding efficiency and service life of products.

Diamond Router Bit For Profiling
The diamond router bit is mainly used for shaping the edge or curve line for various granite and marble on manual-type profiling machines such as angle grinders or water polishers.

CNC Profiling Wheel
CNC grinding wheel has strong grind ability, excellent polishing degree, and long service life, and can customize the shape required by customers according to the shape of stone.

Product feature:
1. Precise profiling, high efficiency, long life, and good balance.
2. Applicable for the shaping of special-shaped stones.
Product specification:

Stone Profile	Diameter(mm)	Stone Thickness(mm)
A20	64	20
A30	74	30
A40	84	40
B20	84	20
B30	104	30
B40	124	40
E20	78	20
E30	95	30
E40	112	40
F20	100	20
F30	100	30
F40	120	40
OGEE20	66.67	20
OGEE30	80	30
OGEE40	93.33	40
H20	68	20
H30	82	30
H40	96	40
T20	50	20
T30	53	30
T40	56	40
V20	64	20
V30	74	30
V40	84	40
X20	49	20
X30	51.5	30
X40	54	40
Z20	40	20
Z30	40	30
Z40	40	40

Other specifications are available upon request.
