Customized Support Diamond Wire Saw 11.5mm Sintered Bead Rope for Marble Quarry Mining

Large Image : Customized Support Diamond Wire Saw 11.5mm Sintered Bead Rope for Marble Quarry Mining

Product Details:

Place of Origin:	Jiangxi, China
Brand Name:	Linsing
Model Number:	M2-1-115A

Payment & Shipping Terms:

Minimum Order Quantity:	50 meters
Price:	$26.50 - $35.00/meters

Contact Now

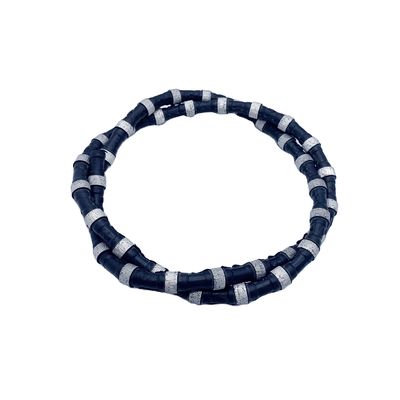

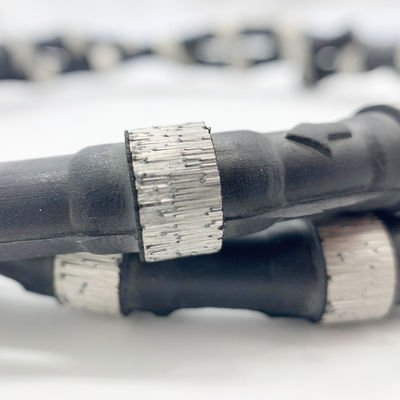

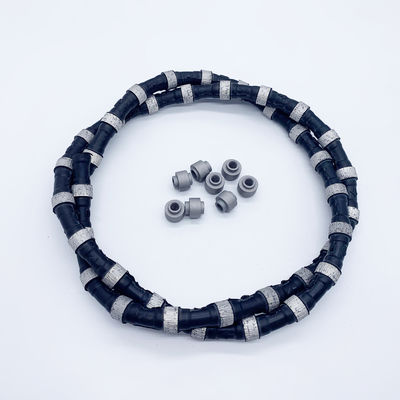

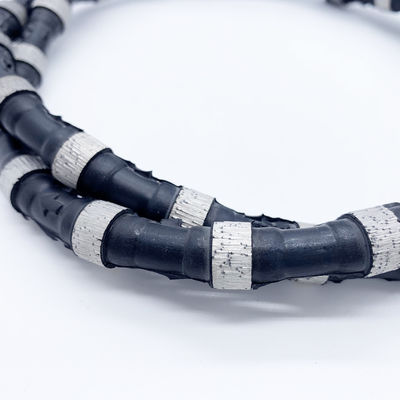

Customized Support Diamond Wire Saw 11.5mm Sintered Bead Rope for Marble Quarry Mining

Description

Warranty:	None	Customized Support:	OEM, ODM, OBM
Application:	Marble Quarry	Material:	Diamond Powder
MOQ:	50 Meters	Size:	11.5mm
Package:	Carton Box	Fixed Method:	Rubber+spring
Hardness:	Cutitng Hard Stone	Color:	Black
Feature:	Sharpness	Usage:	Wire Saw Quarry Machine

Diamond Wire Saw For Marble Mining&Quarrying
We recommend rubber wire for marble cutting, it can protect the wire saw rope very well and increase the wire’s strength. The rubber has good temperature resistance, and it can be used when water is not enough. Strong flexibility can reduce the cut-in-one-side problem.

The advantages of wire saw granite mining: 1 Wide adaptability 2 High mining efficiency 3 Flexible cutting method 4 Large cutting depth 5 High output 6 Low comprehensive cost 7 Environmental protection and no pollution.

Product Features:
1. Fast-cutting speed and long lifespan, low noise, and eco-friendly;
2. Stable quality control for excellent cutting performance, high cost-effective;
3. Suitable for cutting all kinds of stone.
Products Specification For Marble/Limestone:

Diameter (mm)	Bead No. (pcs/m)	Reinforcement	Usage
D11.5	37/40	Rubber+spring	Marble quarrying
D11.0	28	Spring	Marble quarrying
D10.5	28	Spring	Marble quarrying
D10.0	28	Spring	Marble quarrying
Cutting material	Line speed (m/s)	Efficiency (m²/h)	Life (m²/m)
Soft	35-40	10-20	60-90
Medium	32-35	10-15	40-60
Hard	30-35	6-12	20-40

Other specifications are available upon request

Product specification for granite:

Diameter(mm)	Bead No(pcs/m)	Reinforcement	Usage
D11.5	37/40	Rubber/Rubber+spring	Granite/quartz quarrying
D12.0	38/40	Rubber/Rubber+spring	Granite/quartz quarrying
D12.5	38/40	Rubber/Rubber+spring	Granite/quartz quarrying
Cutting material	Line speed	Efficiency	Life
Class1-2	33-35	15-28	25-35
Class3-4	31- 32	8-12	15-25
Class5	28-30	6-10	10-15

Other specifications are available upon request.

Product Description

Customized Support Diamond Wire Saw 11.5mm Sintered Bead Rope for Marble Quarry Mining 0

Linxing products

Customized Support Diamond Wire Saw 11.5mm Sintered Bead Rope for Marble Quarry Mining 9
