Long Life Flat Shape Diamond Segment for 1200mm Basalt Stone Cutting Tools 24820mm

Large Image : Long Life Flat Shape Diamond Segment for 1200mm Basalt Stone Cutting Tools 24*8*20mm

Product Details:

Place of Origin:	Jiangxi, China
Brand Name:	Linsing
Model Number:	diamond segment

Payment & Shipping Terms:

Minimum Order Quantity:	160 pieces
Price:	$0.65/pieces >=160 pieces
Packaging Details:	Carton box
Supply Ability:	10000 Piece/Pieces per Day High Quality Diamond Segment

Contact Now

Long Life Flat Shape Diamond Segment for 1200mm Basalt Stone Cutting Tools 24820mm

Description

Warranty:	Non	Customized Support:	OEM, ODM, OBM
Application:	Stone Cutting	Product Name:	Diamond Segment
Size:	24820mm	Advantage:	Fast Cuttng And Long Life
MOQ:	160pcs	Packing:	Carton Box
Shape:	Flat Shpe	Payment:	T/T, Western Union; Paypal; Alipay
Main Market:	Mexico, Vietnam, Algeria, Indonesia	Service:	Best After-sales Service
Port:	Shanghai, Shenzhen, Ningbo, Xiamen, Etc

Basalt Cutting Segment
Basalt cutting segments adopt the top-grade diamond crystal, cobalt, and metal powder to produce. With special advantages such as high cutting efficiency and long life. The basalt diamond segments have entered over 30 countries for its premium quality.

Andesite Cutting Segment
Through continuous debugging, the andesite cutting segment achieves high speed and long life cutting effect to meet the needs of the market.

Product Features:
1. Cutting at high speed without chipping;
2. Long life span and stable cutting performance;
3. Smooth cutting, flat surface, and even size cutting result;
4. Good segment shape easy for diamond opening;
5. Strict product quality inspection processes;
6. High cost-effective.

Product Specification:

Diameter (mm)	Steel Core (mm)	Segment Size	Segment Number
Φ300	2.2	40×3.2×8(10)	22
Φ350	2.4	40×3.4×8(10)	25
Φ400	2.6	40×3.6×8(10)	29
Φ450	2.8/3.0	40×4.0×8(10)	32
Φ500	3.0/3.2	40×4.2×8(10)	36
Φ600	3.6/3.8	40×4.8×8(10)	42
Φ700	4	40×5.2×8(10)	42
Φ800	4.5	40×6.0×8(10)	46/57
Φ900	5	24×7.5×8(10,12)	64
Φ1000	5	24×7.5×8(10,12)	70
Φ1200	5.5	24×8.5×8(10,12)	80
Φ1300	6	24×8.5×8(10,12)	88
Φ1400	6.5	24×9.0×8(10,12)	92
Φ1600	7.2	24×9.5×8(10,12)	108
Φ1800	7.5	24×10.0×8(10,12)	120
Φ2000	8	24×10.5×8(10,12)	128
Φ2200	9	24×11.0×8(10,12)	132
Φ2500	9	24×11.0×8(10,12)	140
Φ3000	9.5	24×12.0×8(10,12)	160

Other specifications are available upon request.

Product Description

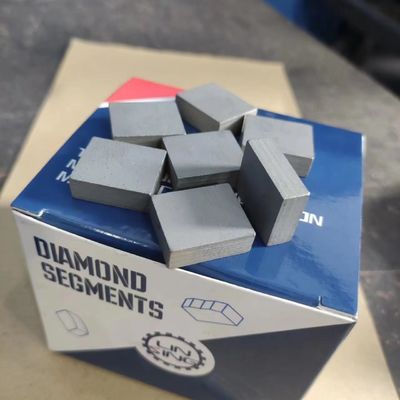

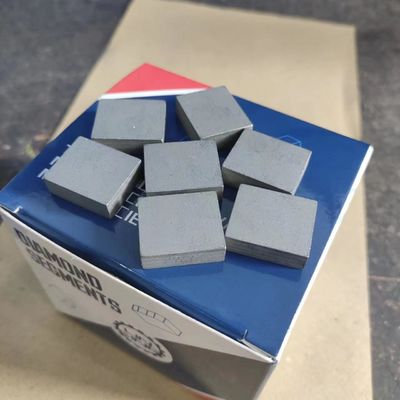

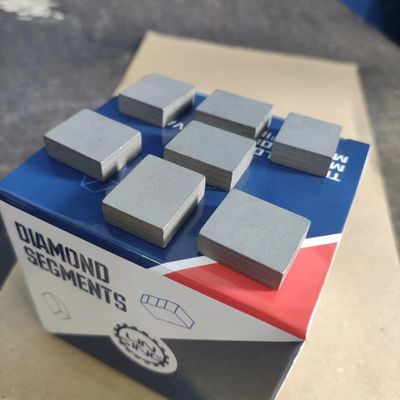

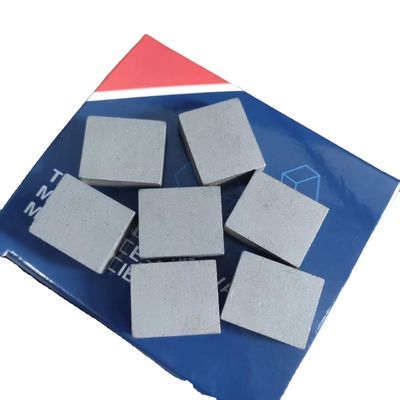

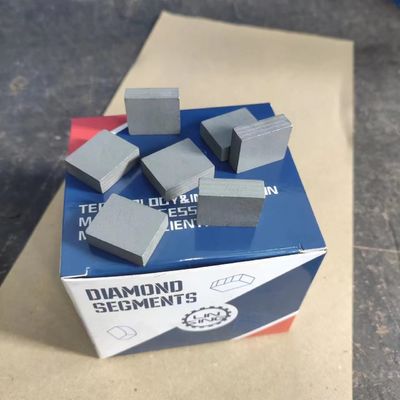

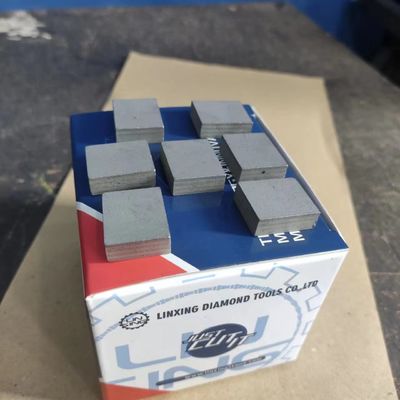

Long Life Flat Shape Diamond Segment for 1200mm Basalt Stone Cutting Tools 24*8*20mm 0

Long Life Flat Shape Diamond Segment for 1200mm Basalt Stone Cutting Tools 24*8*20mm 9

Linxing products

Long Life Flat Shape Diamond Segment for 1200mm Basalt Stone Cutting Tools 24*8*20mm 14
