Fast Cutting Tool 4.5mm Diamond Segment for Multi Blade Tip Cutter Granite Cutting

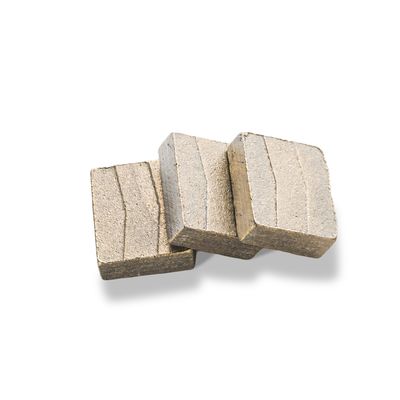

Large Image : Fast Cutting Tool 4.5mm Diamond Segment for Multi Blade Tip Cutter Granite Cutting

Product Details:

Place of Origin:	Jiangxi, China
Brand Name:	Linsing
Model Number:	8623A9

Payment & Shipping Terms:

Minimum Order Quantity:	100 pieces
Price:	$0.73/pieces >=100 pieces
Packaging Details:	The inner packaging is kraft paper and the outer packaging is carton. If the customer orders a large quantity, wooden pallets will be included.
Supply Ability:	50000 Piece/Pieces per Day

Contact Now

Fast Cutting Tool 4.5mm Diamond Segment for Multi Blade Tip Cutter Granite Cutting

Description

Customized Support:	OEM, ODM, OBM	Product Name:	Diamond Segment
Application:	Granite Cutting	Material:	Diamond + Metal Powder
Advantage:	Fast Cutting Speed	Shape:	M Shape
MOQ:	100pcs	Shipping:	FEDEX UPS EMS DHL; Air; Sea
Service:	After-sales Service	Payment:	TT; WESTERN UNION; PAYPAL
Packing:	Carton	Port:	Shanghai, Shenzhen, Ningbo, Xiamen, Etc

Diamond Segment For Granite Cutting
Granite cutting segment used for cutting granite. Linxing's granite cutting segments have the characteristics of a wide variety, strong pertinence, long life, high sharpness, and high-cost performance.

Product features:
1. Good Sharpness: speedy cutting, low machine current, mining blocks are square with good flat surface.
2. Long Life: Reducing the times of re-welding, achieving high cutting linear meters.
3. Good Adaptability: Suitable for different stone and various complicated mining environments.
Product Specification:

Blade Diameter(inch/mm)	Steel Core Thickness(mm)	Segment Specification(mm)	Segment No.(pcs)
Φ12”/300	2.2	40x3.2x10(12,15, 20)	21
Φ14”/350	2.2/2.4	40x3.2x10(12,15, 20)	24
Φ16”/400	2.6	40x3.6x10(12,15, 20)	28
Φ18”/450	2.8/3.0	40x4x10(12,15, 20)	32
Φ20”/500	3.0/3.2	40x4.2x10(12,15, 20)	36
Φ24”/600	3.6/3.8	40x5x10(12,15, 20)	42
Φ28”/700	4	40x5.2x10(12,15, 20)	50
Φ32”/800	4.5	40x6x10(12,15, 20)	46
Φ36”/900	5.0	24x7.0/6.2x15(13,20)	64
Φ40”/1000	5.0	24x7.0/6.2x15(13,20)	70
Φ48”/1200	5.5	24x7.4/6.6x15(13,20)	80
Φ52”/1300	6.0	24x8.0/7.2x15(13,20)	88
Φ56”/1400	6.5	24x8.4/7.6x15(13,20)	92
Φ64”/1600	7.2	24x9.2/8.4x15(13,20)	108
Φ72”/1800	7.5	24x10.0/9.2x15(13,20)	120
Φ80”/2000	8.0	24x10.6/9.8x15(13,20)	128
Φ88”/2200	8.0/9.0	24x11.0/10.2x15(13,20)	132
Φ100”/2500	9.0	24x11.4/10.6x15(13,20)	140
Φ120”/3000	9.5	24x12.4/11.6x15(13,20)	160
Φ140”/3500	9.5	24x12.4/11.6x15(13,20)	180

Other specifications are available upon request.

Product Description

Fast Cutting Tool 4.5mm Diamond Segment for Multi Blade Tip Cutter Granite Cutting 0

Fast Cutting Tool 4.5mm Diamond Segment for Multi Blade Tip Cutter Granite Cutting 3

Linxing products

Fast Cutting Tool 4.5mm Diamond Segment for Multi Blade Tip Cutter Granite Cutting 13

FAQ

Fast Cutting Tool 4.5mm Diamond Segment for Multi Blade Tip Cutter Granite Cutting 16

Packaging & Shipping

Fast Cutting Tool 4.5mm Diamond Segment for Multi Blade Tip Cutter Granite Cutting 17

Our Services

Fast Cutting Tool 4.5mm Diamond Segment for Multi Blade Tip Cutter Granite Cutting 18

Contact Details
