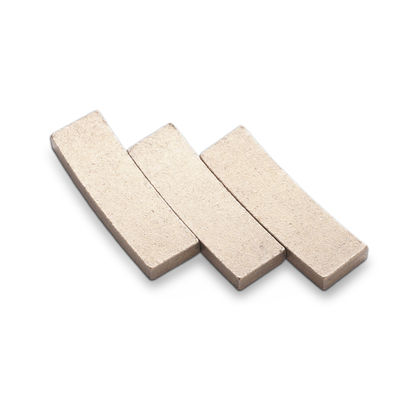

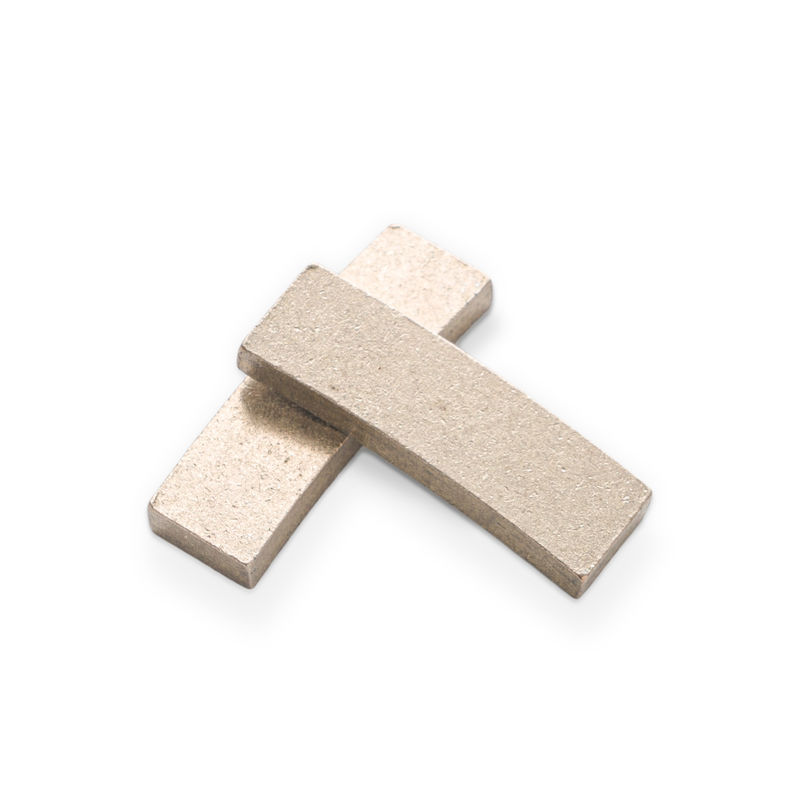

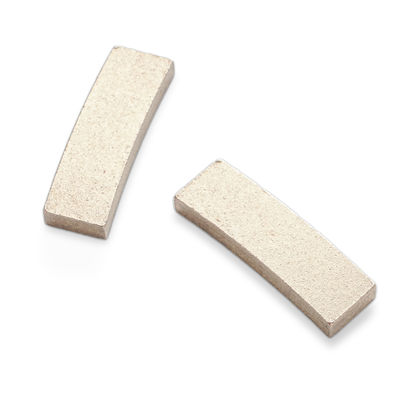

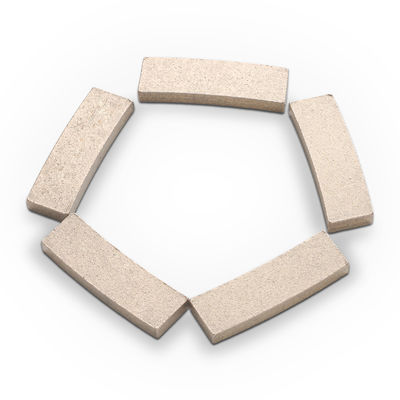

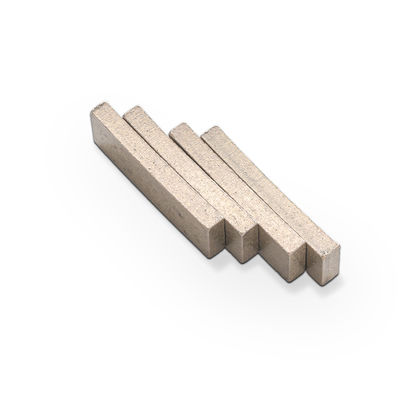

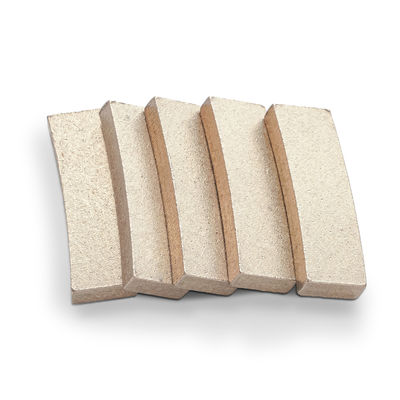

Sintered Diamond Segment for Granite Sandstone Basalt and Volcanic Stone Cutting OBM

Large Image : Sintered Diamond Segment for Granite Sandstone Basalt and Volcanic Stone Cutting OBM

Product Details:

Place of Origin:	Jiangxi, China
Brand Name:	Linsing
Certification:	ISO9001:2008
Model Number:	404.212mm

Payment & Shipping Terms:

Minimum Order Quantity:	1000 pieces
Price:	$0.54/pieces 1000-9999 pieces
Packaging Details:	Plastic+Carton
Supply Ability:	100000 Piece/Pieces per Day diamond segment

Contact Now

Sintered Diamond Segment for Granite Sandstone Basalt and Volcanic Stone Cutting OBM

Description

Warranty:	None	Customized Support:	OEM, ODM, OBM
Product Name:	Diamond Segment	Application:	Cutting Granite
Usage:	Wet Cutting	Keywords:	Sintered Diamond Segment
Material:	Diamond + Metal Powder	Feature:	High Performance Cutting
Grade:	A-Grade	Use:	Diamond Saw Blade
Technology:	Hot Pressed Sintered	Port:	Xiamen, Ningbo, Shanghai, Guangzhou, Shenzhen Etc.

Diamond Segment For Granite Cutting

Granite cutting segment used for cutting granite. Linxing's granite cutting segments has the characteristics of wide variety, strong pertinence, long life, high sharpness and high cost performance.

Product Features:
1. Good sharpness and high efficiency without chipping;
2. Strict QC for stable cutting performance;
3. Long life span with high cost-effective;
4. Segment is easy for opening.

Product Specification:

Blade Diameter(inch/mm)	Steel Core Thickness(mm)	Segment Specification(mm)	Segment No.(pcs)
Φ12”/300	2.2	40x3.2x10(12,15, 20)	21
Φ14”/350	2.2/2.4	40x3.2x10(12,15, 20)	24
Φ16”/400	2.6	40x3.6x10(12,15, 20)	28
Φ18”/450	2.8/3.0	40x4x10(12,15, 20)	32
Φ20”/500	3.0/3.2	40x4.2x10(12,15, 20)	36
Φ24”/600	3.6/3.8	40x5x10(12,15, 20)	42
Φ28”/700	4	40x5.2x10(12,15, 20)	50
Φ32”/800	4.5	40x6x10(12,15, 20)	46
Φ36”/900	5.0	24x7.0/6.2x15(13,20)	64
Φ40”/1000	5.0	24x7.0/6.2x15(13,20)	70
Φ48”/1200	5.5	24x7.4/6.6x15(13,20)	80
Φ52”/1300	6.0	24x8.0/7.2x15(13,20)	88
Φ56”/1400	6.5	24x8.4/7.6x15(13,20)	92
Φ64”/1600	7.2	24x9.2/8.4x15(13,20)	108
Φ72”/1800	7.5	24x10.0/9.2x15(13,20)	120
Φ80”/2000	8.0	24x10.6/9.8x15(13,20)	128
Φ88”/2200	8.0/9.0	24x11.0/10.2x15(13,20)	132
Φ100”/2500	9.0	24x11.4/10.6x15(13,20)	140
Φ120”/3000	9.5	24x12.4/11.6x15(13,20)	160
Φ140”/3500	9.5	24x12.4/11.6x15(13,20)	180

Other specifications are available upon request.
