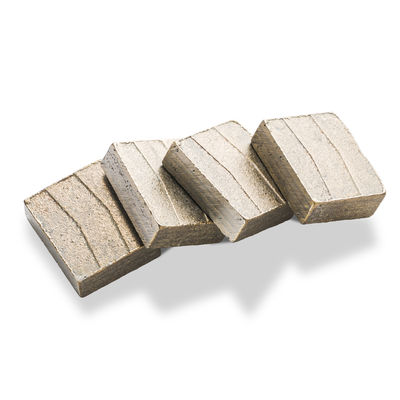

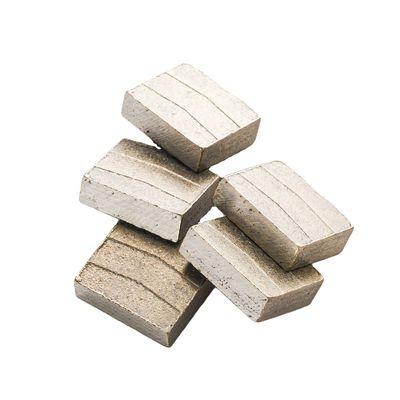

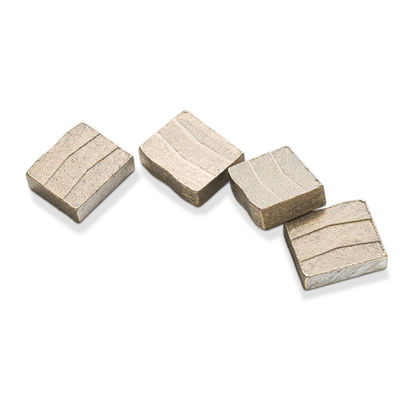

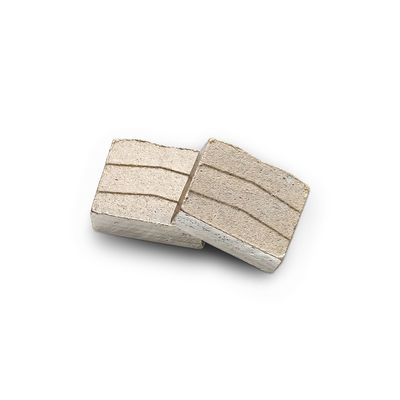

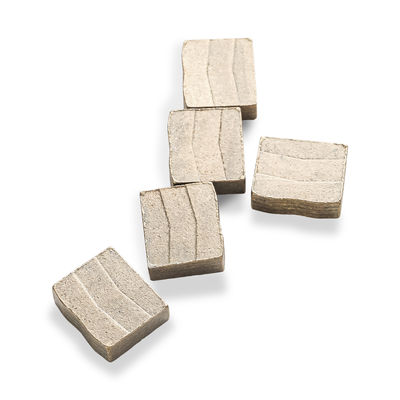

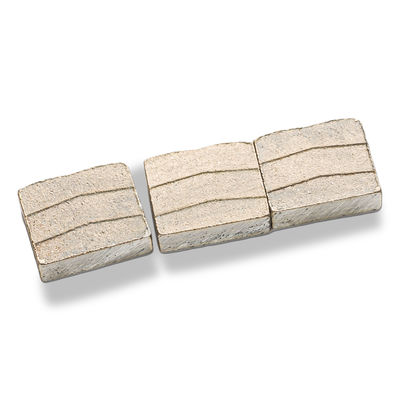

Speed Diamond Segment for Fast Cutting 6.5mm 5.5mm Multi Blade Granite Stone Tip

Large Image : Speed Diamond Segment for Fast Cutting 6.5mm 5.5mm Multi Blade Granite Stone Tip

Product Details:

Place of Origin:	Jiangxi, China
Brand Name:	Linsing
Model Number:	L179A1

Payment & Shipping Terms:

Minimum Order Quantity:	200 pieces
Price:	$0.52/pieces >=200 pieces
Packaging Details:	The inner packaging is plastic film and the outer packaging is carton. If the customer orders a large quantity, it will be packed in wooden cases and wooden frames.
Supply Ability:	50000 Piece/Pieces per Day

Contact Now

Speed Diamond Segment for Fast Cutting 6.5mm 5.5mm Multi Blade Granite Stone Tip

Description

Customized Support:	OEM, ODM, OBM	Product Name:	Diamond Segment
Application:	Granite Cutting	Material:	Diamond + Metal Powder
Advantage:	Fast Cutting Speed	Shape:	M Shape
MOQ:	200pcs	Shipping:	FEDEX UPS EMS DHL TNT
Service:	After-sales Service	Payment:	TT; WESTERN UNION
Packing:	Carton	Port:	Shanghai, Shenzhen, Ningbo, Xiamen, Etc

Diamond Segment For Granite Cutting
Granite cutting segment used for cutting granite. Linxing's granite cutting segments have the characteristics of a wide variety, strong pertinence, long life, high sharpness, and high-cost performance.

Product features:
1. Good Sharpness: speedy cutting, low machine current, mining blocks are square with good flat surface.
2. Long Life: Reducing the times of re-welding, achieving high cutting linear meters.
3. Good Adaptability: Suitable for different stone and various complicated mining environments.
Product Specification:

Blade Diameter(inch/mm)	Steel Core Thickness(mm)	Segment Specification(mm)	Segment No.(pcs)
Φ12”/300	2.2	40x3.2x10(12,15, 20)	21
Φ14”/350	2.2/2.4	40x3.2x10(12,15, 20)	24
Φ16”/400	2.6	40x3.6x10(12,15, 20)	28
Φ18”/450	2.8/3.0	40x4x10(12,15, 20)	32
Φ20”/500	3.0/3.2	40x4.2x10(12,15, 20)	36
Φ24”/600	3.6/3.8	40x5x10(12,15, 20)	42
Φ28”/700	4	40x5.2x10(12,15, 20)	50
Φ32”/800	4.5	40x6x10(12,15, 20)	46
Φ36”/900	5.0	24x7.0/6.2x15(13,20)	64
Φ40”/1000	5.0	24x7.0/6.2x15(13,20)	70
Φ48”/1200	5.5	24x7.4/6.6x15(13,20)	80
Φ52”/1300	6.0	24x8.0/7.2x15(13,20)	88
Φ56”/1400	6.5	24x8.4/7.6x15(13,20)	92
Φ64”/1600	7.2	24x9.2/8.4x15(13,20)	108
Φ72”/1800	7.5	24x10.0/9.2x15(13,20)	120
Φ80”/2000	8.0	24x10.6/9.8x15(13,20)	128
Φ88”/2200	8.0/9.0	24x11.0/10.2x15(13,20)	132
Φ100”/2500	9.0	24x11.4/10.6x15(13,20)	140
Φ120”/3000	9.5	24x12.4/11.6x15(13,20)	160
Φ140”/3500	9.5	24x12.4/11.6x15(13,20)	180

Other specifications are available upon request.

Product Description

Speed Diamond Segment for Fast Cutting 6.5mm 5.5mm Multi Blade Granite Stone Tip 0

Speed Diamond Segment for Fast Cutting 6.5mm 5.5mm Multi Blade Granite Stone Tip 3

Linxing products

Speed Diamond Segment for Fast Cutting 6.5mm 5.5mm Multi Blade Granite Stone Tip 13

FAQ

Speed Diamond Segment for Fast Cutting 6.5mm 5.5mm Multi Blade Granite Stone Tip 16

Packaging & Shipping

Speed Diamond Segment for Fast Cutting 6.5mm 5.5mm Multi Blade Granite Stone Tip 17

Our Services

Speed Diamond Segment for Fast Cutting 6.5mm 5.5mm Multi Blade Granite Stone Tip 18
