Multiblade Block Cutter 1200mm Wet Cutting Diamond Segment for Granite Cutting Tools

Multiblade Block Cutter 1200mm Wet Cutting Diamond Segment for Granite Cutting Tools
Multiblade Block Cutter 1200mm Wet Cutting Diamond Segment for Granite Cutting Tools Multiblade Block Cutter 1200mm Wet Cutting Diamond Segment for Granite Cutting Tools Multiblade Block Cutter 1200mm Wet Cutting Diamond Segment for Granite Cutting Tools Multiblade Block Cutter 1200mm Wet Cutting Diamond Segment for Granite Cutting Tools Multiblade Block Cutter 1200mm Wet Cutting Diamond Segment for Granite Cutting Tools Multiblade Block Cutter 1200mm Wet Cutting Diamond Segment for Granite Cutting Tools

Large Image :  Multiblade Block Cutter 1200mm Wet Cutting Diamond Segment for Granite Cutting Tools

Product Details:
Place of Origin: Jiangxi, China
Brand Name: LINSING
Certification: Tuv
Model Number: 24*7.4&6.6*13/15
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pieces
Price: $0.65/pieces 1000-9999 pieces
Packaging Details: Plastic+Carton
Supply Ability: 100000 Piece/Pieces per Day Multiblade segments
Contact Now

Multiblade Block Cutter 1200mm Wet Cutting Diamond Segment for Granite Cutting Tools

Description
Warranty: None Customized Support: OEM, ODM, OBM
Product Name: Diamond Segment For Multiblade Application: Granite Cutting
Usage: Wet Cutting Material: Diamond + Metal Powder
Feature: High Performance Cutting Advantage: 20 Years Experience
Shape: M Grade: A-Grade
Machine: Multiblade Block Cutter Port: Xiamen Port

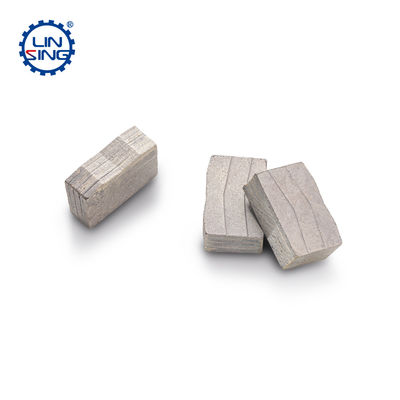

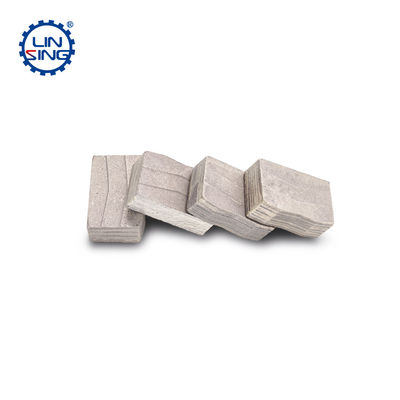

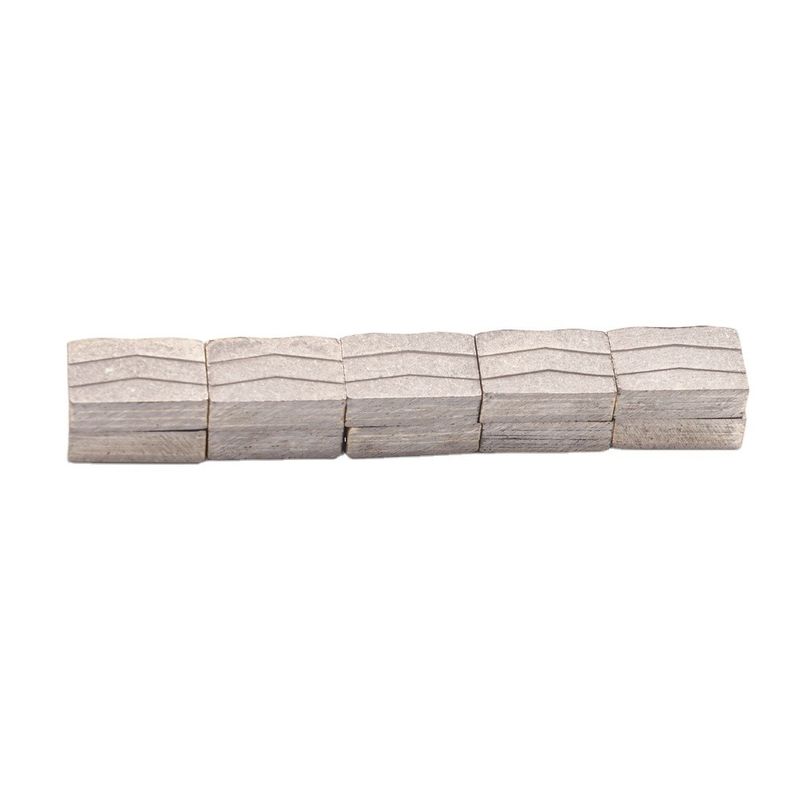

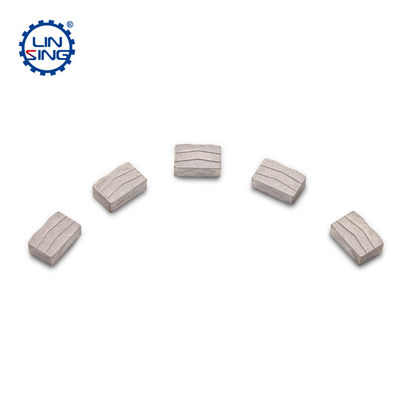

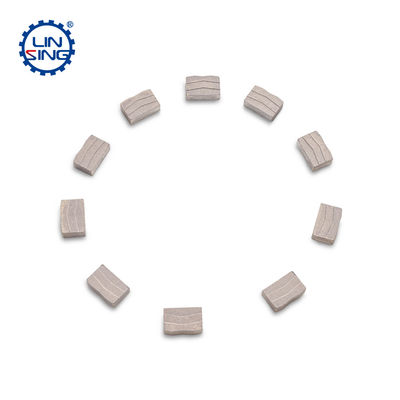

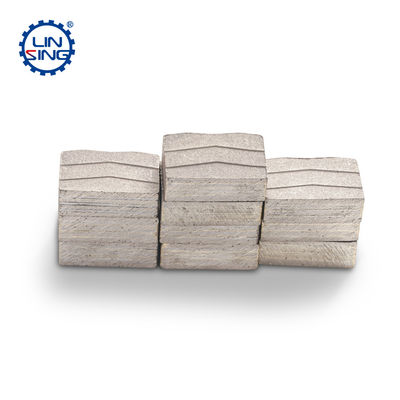

Diamond Segment For Multi-Saw Blade

Multi segment is a kind of diamond tool used in Italian multiblade cutting machine, Chinese multiblade bridge saw machine, or chinese single column multiblade cutting machine. It is usually used to cut stone blocks, and it has the characteristics of high cutting efficiency and stable cutting.



Product Features:
1. The segment has good sharpness against different stone cutting;
2. Long lifespan with high cost-effective;
3. Strict QC for stable cutting performance;
4. Segment shape is easy for opening.

Product Specification:

Multiblade segment for granite cutting

Diameter(mm)

Steel Core Thickness(mm)

Segment Specification(mm)

Φ1000 (600-2000)

5.0

24x7.0/6.2x15 (13,20)

Φ1200 (530-2800)

5.5

24x7.4/6.6x15 (13,20)

Φ1400 (460-2800)

6.5

24x8.4/7.6x15 (13,20)

Φ1600 (460-3000)

7.2

24x9.2/8.4x15 (13,20)

Other specifications are available upon request.

Multiblade segment for marble cutting

Diameter(mm)

Steel Core Thickness(mm)

Segment Specification(mm)

Φ1200

4.5

24x5.5x8 (10)

Φ1200

5.0

24x6.0x8 (10)

Φ1200

6.5

24x7.5x8 (10)

Φ1200

7.0

24x8.0x8 (10)

Other specifications are available upon request.

Multiblade Block Cutter 1200mm Wet Cutting Diamond Segment for Granite Cutting Tools 0Multiblade Block Cutter 1200mm Wet Cutting Diamond Segment for Granite Cutting Tools 1Multiblade Block Cutter 1200mm Wet Cutting Diamond Segment for Granite Cutting Tools 2Multiblade Block Cutter 1200mm Wet Cutting Diamond Segment for Granite Cutting Tools 3Multiblade Block Cutter 1200mm Wet Cutting Diamond Segment for Granite Cutting Tools 4Multiblade Block Cutter 1200mm Wet Cutting Diamond Segment for Granite Cutting Tools 5Multiblade Block Cutter 1200mm Wet Cutting Diamond Segment for Granite Cutting Tools 6Multiblade Block Cutter 1200mm Wet Cutting Diamond Segment for Granite Cutting Tools 7Multiblade Block Cutter 1200mm Wet Cutting Diamond Segment for Granite Cutting Tools 8Multiblade Block Cutter 1200mm Wet Cutting Diamond Segment for Granite Cutting Tools 9Multiblade Block Cutter 1200mm Wet Cutting Diamond Segment for Granite Cutting Tools 10Multiblade Block Cutter 1200mm Wet Cutting Diamond Segment for Granite Cutting Tools 11Multiblade Block Cutter 1200mm Wet Cutting Diamond Segment for Granite Cutting Tools 12Multiblade Block Cutter 1200mm Wet Cutting Diamond Segment for Granite Cutting Tools 13Multiblade Block Cutter 1200mm Wet Cutting Diamond Segment for Granite Cutting Tools 14Multiblade Block Cutter 1200mm Wet Cutting Diamond Segment for Granite Cutting Tools 15Multiblade Block Cutter 1200mm Wet Cutting Diamond Segment for Granite Cutting Tools 16Multiblade Block Cutter 1200mm Wet Cutting Diamond Segment for Granite Cutting Tools 17Multiblade Block Cutter 1200mm Wet Cutting Diamond Segment for Granite Cutting Tools 18Multiblade Block Cutter 1200mm Wet Cutting Diamond Segment for Granite Cutting Tools 19Multiblade Block Cutter 1200mm Wet Cutting Diamond Segment for Granite Cutting Tools 20Multiblade Block Cutter 1200mm Wet Cutting Diamond Segment for Granite Cutting Tools 21Multiblade Block Cutter 1200mm Wet Cutting Diamond Segment for Granite Cutting Tools 22
