Long Lifespan Stone Processing Tools Diamond Saw Blade for High Speed Granite Cutting

Large Image : Long Lifespan Stone Processing Tools Diamond Saw Blade for High Speed Granite Cutting

Product Details:

Place of Origin:	Jiangxi, China
Brand Name:	LINXING
Model Number:	LXK-0446

Payment & Shipping Terms:

Minimum Order Quantity:	10 pieces
Price:	$20.00/pieces 10-99 pieces
Packaging Details:	Diamond Cutting Segment Packed by Plastic Box, LINXING LOGO Carton, etc.
Supply Ability:	1000 Set/Sets per Month Customize diamond Segment

Contact Now

Long Lifespan Stone Processing Tools Diamond Saw Blade for High Speed Granite Cutting

Description

Warranty:	None	Customized Support:	OEM, ODM, OBM
Raw Material:	Diamond. Metal Powder, Etc	Application:	Multiblade
Manutacturing Arts:	Sinter	Welding Method:	High Frequency Brazed (Suggest)
Product:	Diamond Cutting Segment	Quality:	A Grade Segments
Packing:	Plastic Paper, LINXING LOGO Carton	Export Market:	Global
Keywords:	Silence Saw Blade	Style:	Luxury
Port:	Shanghai, Shenzhen, Ningbo, Xiamen, Etc

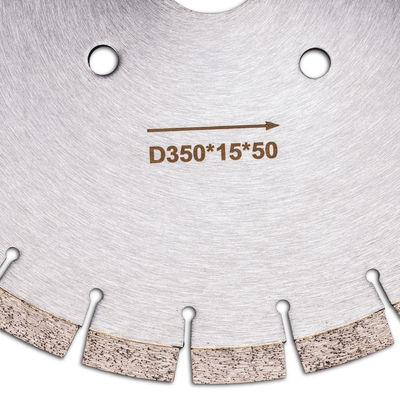

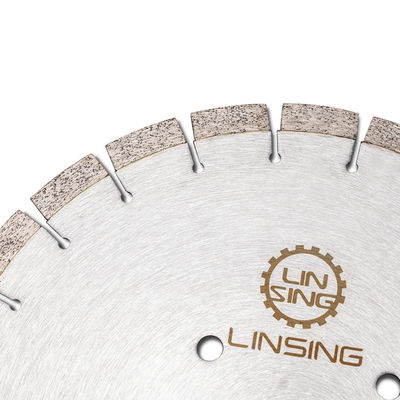

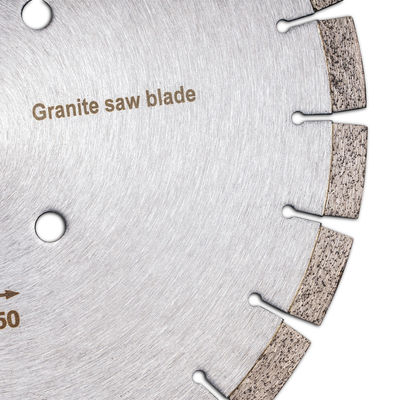

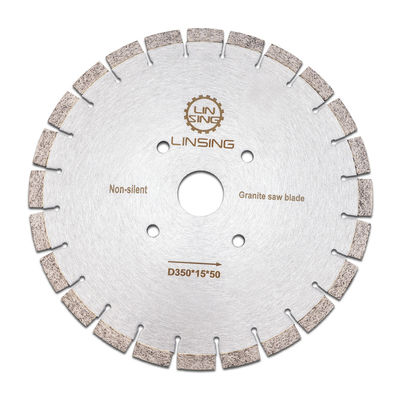

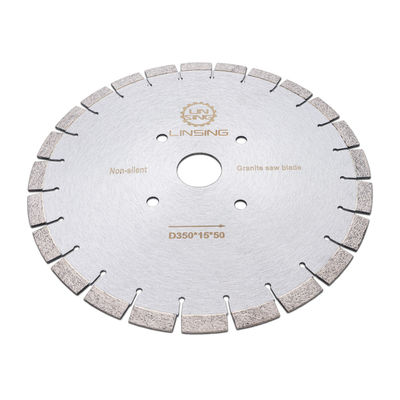

Diamond Saw Blade For Granite

The saw blade used for cutting granite, it has the characteristics of high sharpness, good wear resistance and long lifespan.

Products Features:
1. Good sharpness, high efficiency and long lifespan;
2. Smooth cutting without chipping;
3. Stable cutting and high cost-effective;
4. Silent and non-silent blade are available.

Product Specification:

Diameter(inch/mm)	Steel Core Thickness(mm)	Segment Specification(mm)	Segment No.(pcs)
Φ12”/300	2.2	40x3.2x10(12,15,20)	21
Φ14”/350	2.2/2.4	40x3.2x10(12,15,20)	24
Φ16”/400	2.6	40x3.6x10(12,15,20)	28
Φ18”/450	2.8/3.0	40x4x10(12,15,20)	32
Φ20”/500	3.0/3.2	40x4x10(12,15,20)	36
Φ24”/600	3.6/3.8	40x5x10(12,15,20)	42
Φ28”/700	4	40x5.2x10(12,15,20)	50
Φ32”/800	4.5	40x6x10(12,15,20)	46
Φ36”/900	5.0	24x7.0/6.2x15(13,20)	64
Φ40”/1000	5.0	24x7.0/6.2x15(13,20)	70
Φ48”/1200	5.5	24x7.4/6.6x15(13,20)	80
Φ52”/1300	6.0	24x8.0/7.2x15(13,20)	88
Φ56”/1400	6.5	24x8.4/7.6x15(13,20)	92
Φ64”/1600	7.2	24x9.2/8.4x15(13,20)	108
Φ72”/1800	7.5	24x10.0/9.2x15(13,20)	120
Φ80”/2000	8.0	24x10.6/9.8x15(13,20)	128
Φ88”/2200	8.0/9.0	24x11.0/10.2x15(13,20)	132
Φ100”/2500	9.0	24x11.4/10.6x15(13,20)	140
Φ120”/3000	9.5	24x12.4/11.6x15(13,20)	160
Φ140”/3500	9.5	24x12.4/11.6x15(13,20)	180

Other specifications are available upon request. Long Lifespan Stone Processing Tools Diamond Saw Blade for High Speed Granite Cutting 0
