Iron Bond and Cobalt Bond 1600mm Single Blade Segment for Vietnam White Marble Cutting

Large Image : Iron Bond and Cobalt Bond 1600mm Single Blade Segment for Vietnam White Marble Cutting

Product Details:

Place of Origin:	Jiangxi, China
Brand Name:	Linsing
Model Number:	M10299

Payment & Shipping Terms:

Minimum Order Quantity:	200 pieces
Price:	$0.89/pieces >=200 pieces
Packaging Details:	Packing for diamond segment <br>carton box, sealing tape, wooden carton or as the customer's requirement
Supply Ability:	150000 Piece/Pieces per Month diamond segments

Contact Now

Iron Bond and Cobalt Bond 1600mm Single Blade Segment for Vietnam White Marble Cutting

Description

Customized Support:	OEM, ODM, OBM	Product Name:	Diamond Segments For Marble
Material:	Iron Bond And Cobalt Bond And Copper Bond	Machine:	1600mm Single Blade Machine
Application:	Mixing Hardness Marble	Feature:	Good Sharpness And Long Life
MOQ:	200pcs	Service:	Customized Service
Usage:	Soft And Hard Marble Cutting	Diameter:	249.513mm
Color:	Golden Yellow	Port:	Shenzhen, Guangzhou, Shanghai, Xiamen, Etc.

Diamond Segment For Marble Cutting
Marble cutting segments is a kind of diamond tool specially used for marble processing It is mainly used for cutting marble block, slab and thin plate.

Product Features:
1. Good sharpness and high efficiency without chipping.
2. Strict QC for stable cutting performance.
3. Long lifespan with high cost-effective.
4. Segment is easy for opening.
Product Specification:

Blade Diameter(inch/mm)	Steel Core Thickness(mm)	Segment Specification(mm)	Segment No.(pcs)
Φ12”/300	2.2	42/40x3.2x8(10,12,15)	22
Φ14”/350	2.2/2.4	42/40x3.4x8(10,12,15)	25
Φ16”/400	2.6	42/40x3.6x8(10,12,15)	29
Φ18”/450	2.8/3.0	40x4x8(10,12,15)	32
Φ20”/500	3.0/3.2	40x4.2x8(10,12,15)	35
Φ24”/600	3.6/3.8	40x5x8(10,12,15)	42
Φ28”/700	4	40x5.2x8(10,12,15)	50
Φ32”/800	4.5	40x6x8(10,12,15)	57
Φ36”/900	5.0	24x7.5x8(10,12,13,15)	64
Φ40”/1000	5.0	24x7.5x8(10,12,13,15)	70
Φ48”/1200	5.5	24x8.0x8(10,12,13,15)	80
Φ52”/1300	6.0	24x8.5x8(10,12,13,15)	88
Φ56”/1400	6.5	24x9.0x8(10,12,13,15)	92
Φ64”/1600	7.2	24x9.2x8(10,12,13,15)	108
Φ72”/1800	7.5	24x10x8(10,12,13,15)	120
Φ80”/2000	8.0	24x10.5x8(10,12,13,15)	128
Φ88”/2200	8.0/9.0	24x11x8(10,12,13,15)	132
Φ100”/2500	9.0	24x11x8(10,12,13,15)	140
Φ120”/3000	9.5	24x12x8(10,12,13,15)	160
Φ140”/3500	9.5	24x12x8(10,12,13,15)	180

Other specifications are available upon request.

Product Description

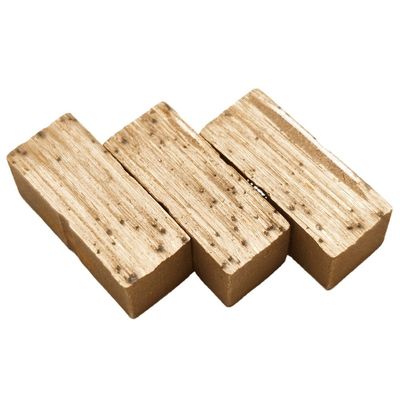

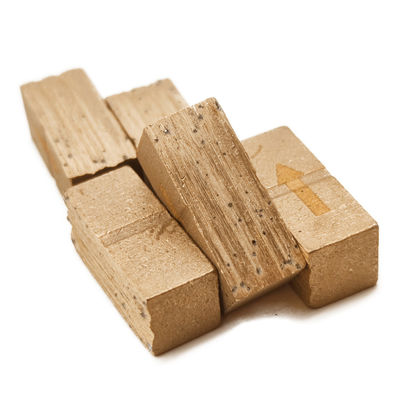

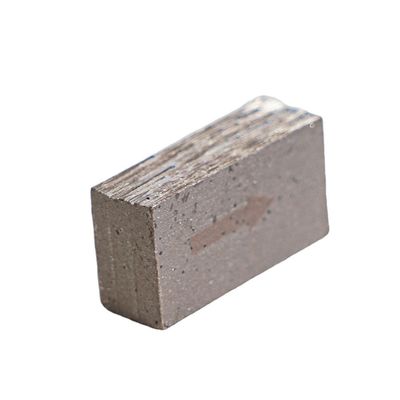

Iron Bond and Cobalt Bond 1600mm Single Blade Segment for Vietnam White Marble Cutting 0

Linxing products

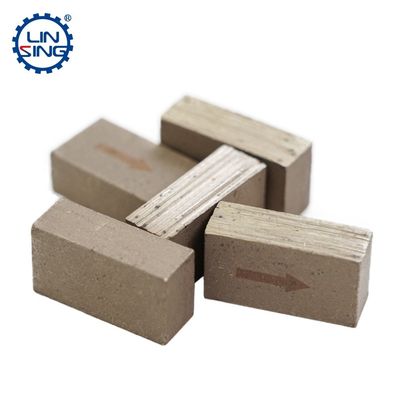

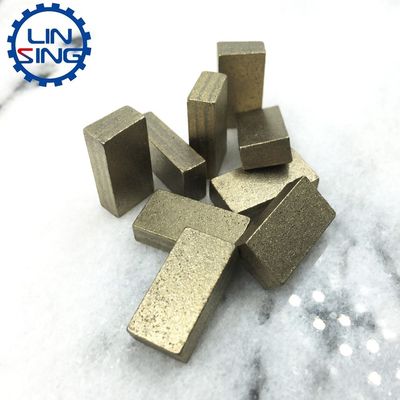

Iron Bond and Cobalt Bond 1600mm Single Blade Segment for Vietnam White Marble Cutting 11

Packaging & Shipping

Iron Bond and Cobalt Bond 1600mm Single Blade Segment for Vietnam White Marble Cutting 13
