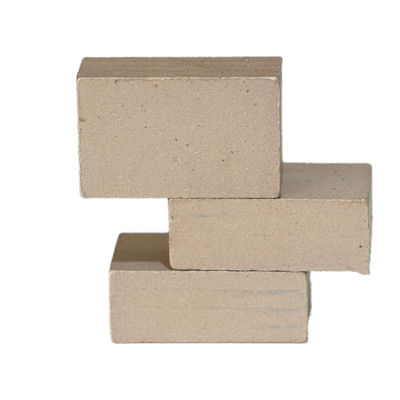

Korea Market Main Diamond Segments for Cutting Sanstone Abrasive Stone

Korea Market Main Diamond Segments for Cutting Sanstone Abrasive Stone
Korea Market Main Diamond Segments for Cutting Sanstone Abrasive Stone Korea Market Main Diamond Segments for Cutting Sanstone Abrasive Stone Korea Market Main Diamond Segments for Cutting Sanstone Abrasive Stone Korea Market Main Diamond Segments for Cutting Sanstone Abrasive Stone Korea Market Main Diamond Segments for Cutting Sanstone Abrasive Stone Korea Market Main Diamond Segments for Cutting Sanstone Abrasive Stone

Large Image :  Korea Market Main Diamond Segments for Cutting Sanstone Abrasive Stone

Product Details:
Place of Origin: Jiangxi, China
Brand Name: Linxing
Model Number: S0258
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pieces
Price: $0.82/pieces 1000-9999 pieces
Packaging Details: waterproof and damageproof standard packaging<br>carton box with logo<br>as the customer's requirement
Supply Ability: 500000 Piece/Pieces per Week
Contact Now

Korea Market Main Diamond Segments for Cutting Sanstone Abrasive Stone

Description
Warranty: Warranty Customized Support: OEM, ODM, OBM
Application: Sanstone Product Name: M Shape Mix Cutting Granite Segment
Size: 900-3000MM Advantage: Quick Cut Stable Performance
Usage: Circular Saw Blade Feature: Quick Cut And Long Lifespan
MOQ: 200pcs Shape: M Shape, Flat Shpe, Arc Shape
Main Market: Vienam, Korea, European, Middle East Countries Quality: Premium Diamond
Port: Shanghai

Product Description
Korea Market Main Diamond Segments for Cutting Sanstone Abrasive Stone 0
15% cost-save diamond segments granite segments tips

Jiangxi Linxing diamond tools co., ltd pays more attention on High quality material, advanced technology and equipment, Mainly material, the diamond quality had been got a great improvement , they can satisfy the needs of production of diamond tools . But we still continue to improves the ability of diamond tools adopt pre-alloyed powder, enhance the holding force of the matrix on the diamond, so that the diamond function is fully played
Korea Market Main Diamond Segments for Cutting Sanstone Abrasive Stone 1
Product Name
China Linxing High Performance Diamond Segment for Cutting Granite Stone
Size
1200mm  1600mm 2500 mm we can design different size according to customer's demand
Brazing Method
High Frequency Welding
Application
cutting sandstone
Feature
Stable performance & quick cut
Package
paper, carton box, plastic film, sealing tape, etc., or as your requirements
Korea Market Main Diamond Segments for Cutting Sanstone Abrasive Stone 2
Direction for use

This segments contains high grade Cu,CO is a chemical elements, it’s mainly material for making heat-resisting alloys, hard-metal alloys,
magnetic alloys. Advange are:

1.15% less edged time

2.15% longer life time

3.With cost-effective price


  • Description of application effect


1. Cutting in high speed without chipping
2. Long lifespan, high cost-effective and stable cutting performance
3. Smooth cutting flat surface and even size cutting result.
4. Good segment shape easy for diamond opening
5. Strict product quality inspection processes
Korea Market Main Diamond Segments for Cutting Sanstone Abrasive Stone 3

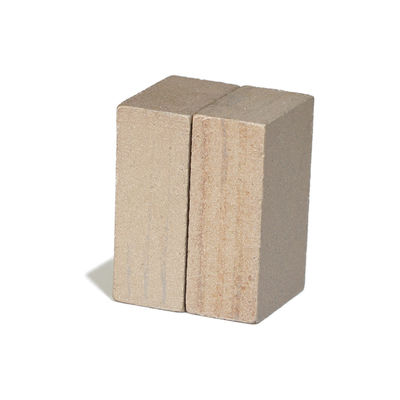

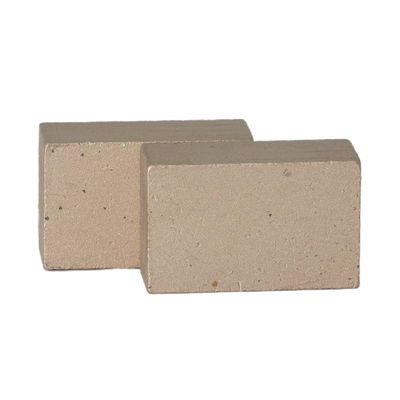

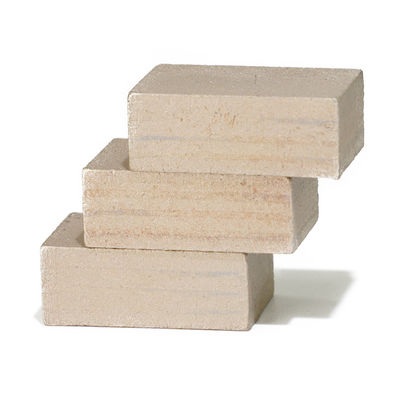

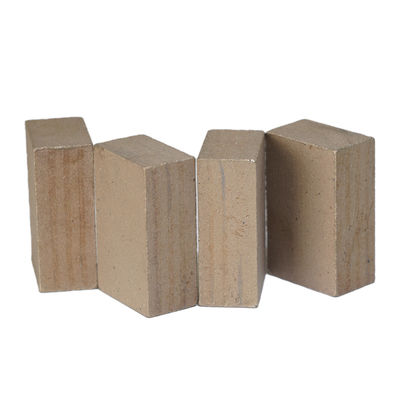

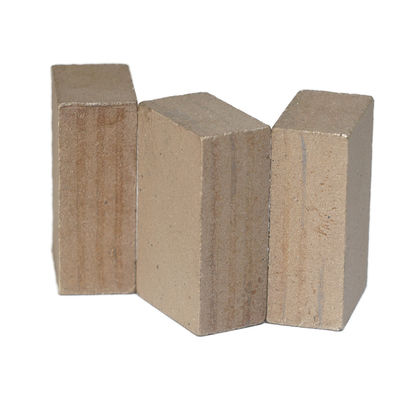

Detailed Images
Korea Market Main Diamond Segments for Cutting Sanstone Abrasive Stone 4
Korea Market Main Diamond Segments for Cutting Sanstone Abrasive Stone 5
Korea Market Main Diamond Segments for Cutting Sanstone Abrasive Stone 6
The gang-saw is more suitable for mass production of thin slabs. In fact, normally there have to be used two (or four, or eight) machines in order to guarantee a continuous material output to the polishing line. As the machine needs about 2 1/2 days for cutting one loading, it is necessary that while one machine is working, the other machine can be unloaded.

Diameter(mm)
Blade core thickness(mm)
Segment Dimension(mm)
Segment No.
250
2.2
40*3.2*10(15,20)
17
300
2.2
40*3.2*10(15,20)
21
350
2.2/2.4
40*3.4*10(15,20)
24
400
2.6
40*3.6*10(15,20)
28
450
2.8/3.0
40*4.0*10(15,20)
32
500
3.0/3.2
40*4.2*10(15,20)
36
600
3.6/3.8
40*4.8*10(15,20)
36/42
700
4.0
40*5.2*10(15,20)
42
800
4.5
40*6.0*10(15,20)
46
900
5.0
24*7.0/6.4*15(20)
64
1000
5.0
24*7.0/6.4*15(20)
70
1200
5.5
24*8.0/7.4*15(20)
80
1300
6.0
24*8.4/7.8*15(20)
88
1400
6.5
24*8.4/7.8*15(20)
92
1600
7.2
24*9.2/8.4*15(20)
108
1800
7.5
24*10.0/9.0*15(20)
120
2000
8.0
24*10.5/9.5*15(20,25)
128
2200
9.0
24*11.0/10.0*15(20,25)
132
2500
9.0
24*11.5/10.5*15(20,25)
140
3000
9.5
24*12.5/13.5*20(25,30)
160
3500
9.5
24*13.5/14.5*20(25,30)
180
Related Products
Korea Market Main Diamond Segments for Cutting Sanstone Abrasive Stone 7
Application
Korea Market Main Diamond Segments for Cutting Sanstone Abrasive Stone 8
Packing&Shipping
Packing Details : paper, carton box, plastic film, sealing tape, etc., or as your requirements
Delivery Details : normally within one week, according to the type and the quantity of diamond segments.
Korea Market Main Diamond Segments for Cutting Sanstone Abrasive Stone 9
Korea Market Main Diamond Segments for Cutting Sanstone Abrasive Stone 10
Korea Market Main Diamond Segments for Cutting Sanstone Abrasive Stone 11
Korea Market Main Diamond Segments for Cutting Sanstone Abrasive Stone 12
Company Introduction
LINXING Diamond tools factory is located in Tianfanjie which near Jingdezhen, Jiangxi which is well-known as Ceramic capital. The company covers an area of 20,000 sqm with more than 200 employees. The company has 10 technical engineers, with increasing funds of R&D, the experienced engineers have worked out unique formula for Granite and marble cutting conditions. We could provide with stable performance, competitive price and fast cutting quality, the company has earned very good reputations among customers at home and abroad, especially our diamond segments have been able to keep 40% market share in domestic market.
The company has a completely scientific quality management system, we look forward to your sincere cooperation.

Korea Market Main Diamond Segments for Cutting Sanstone Abrasive Stone 13
Korea Market Main Diamond Segments for Cutting Sanstone Abrasive Stone 14
Korea Market Main Diamond Segments for Cutting Sanstone Abrasive Stone 15

Our service

Quality makes achievements, service creats future!
FAQ
Q1:Are you a factory or trading company?
A:We are factory. Located at Tianfanjie industry, Poyang county, Jiangxi Province.

Q2:How is your product quality?
A. We have strict quality control system . We guarantee our products quality.

Q3:What you will provide to us when your products have warranty?
A:Please give us detailed report,which including warranty picture, and start to use time, how long, problem.
We will try to find a way to solve those problem.If it's our problem and there are no way to solve then we can make compensation..
