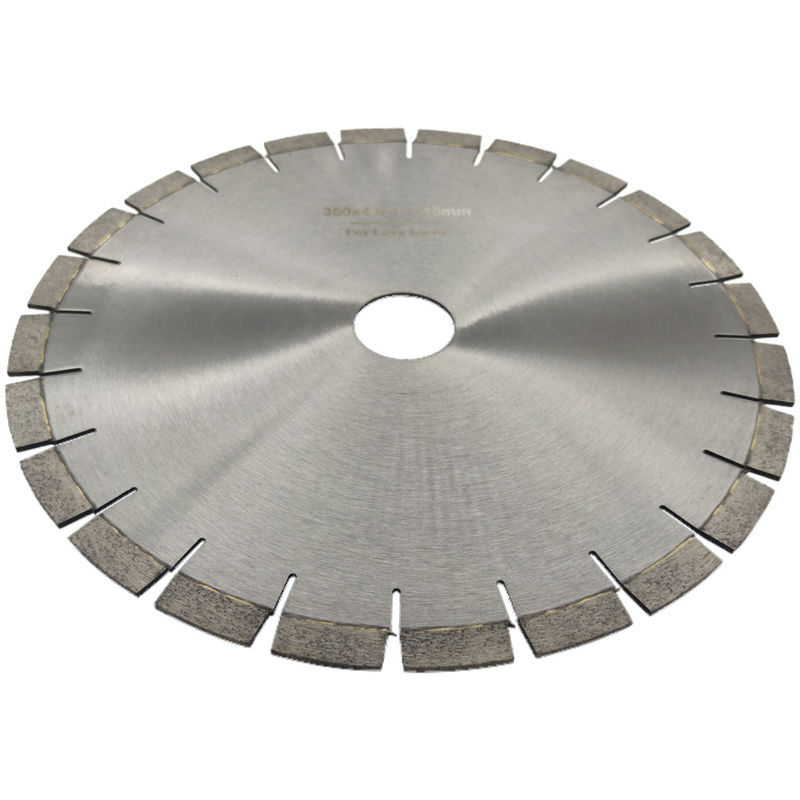

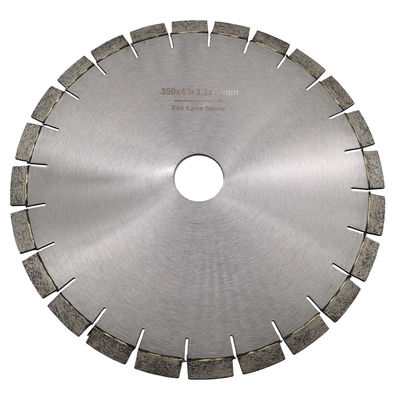

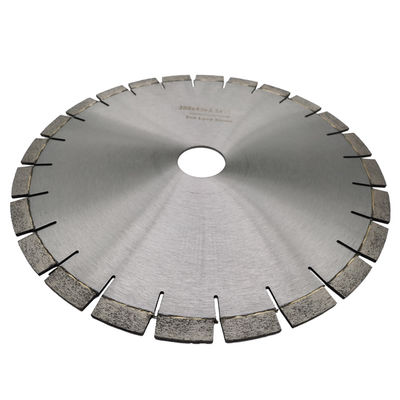

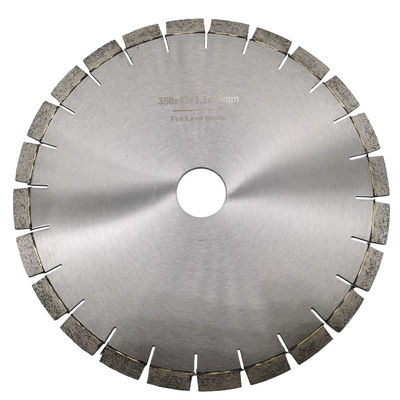

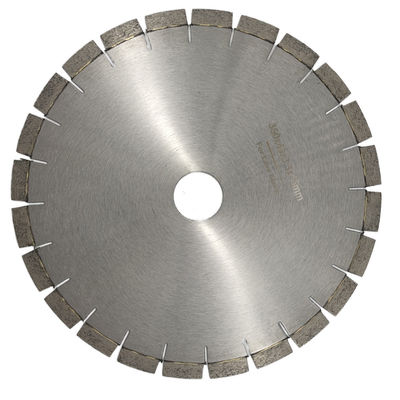

Long Lifespan Diamond Saw Blade for Precise Cutting of Lavastone

Large Image : Long Lifespan Diamond Saw Blade for Precise Cutting of Lavastone

Product Details:

Place of Origin:	Jiangxi, China
Brand Name:	LINSING
Certification:	TUV
Model Number:	Diamond Saw Blade For Lavastone

Payment & Shipping Terms:

Minimum Order Quantity:	10 pieces
Price:	$30.00/pieces 10-99 pieces
Packaging Details:	Plastic+Carton
Supply Ability:	5000 Piece/Pieces per Week

Contact Now

Long Lifespan Diamond Saw Blade for Precise Cutting of Lavastone

Description

Warranty:	None	Blade Thickness:	3.2-12mm
Blade Width:	10mm	Arbor Size:	7/8IN, 5/8in
Teeth Per Inch:	10, 24	Teeths:	140, 144
Blade Length:	24/40mm	Blade Diameter:	300-3000mm
Edge Height:	0.315in(8mm), 0.472in(12mm)	Process Type:	HOT PRESS
Customized Support:	OEM, ODM, OBM	Finishing:	CrN
Size:	D300MM	Grade:	Industrial, A+
Product Name:	Diamond Saw Blade For Lavastone	Application:	For Lavastone Cutting
Material:	Diamond Powder+Alloy Steel	Type:	Circular Cutting Discs
Diameter:	D300-3000mm	Feature:	Cutting Effect
Technology:	Hot Pressing Sintered	Keywords:	Diamond Hot Pressed Circular Saw Blades

Lavastone Cutting Segment

Lavastone cutting segment can be produced for cutting lavastone, there are always manufactured in sandwich and layer design. No matter what the shapes, the aim is to obtain a good cooling and easy flush away the chipping. Diamonds and bond in the outer and inner layers are carefully designed to ensure cutting stability.

Product Features:

1.Good sharpness and high efficiency without chipping.
2.Strict QC for stable cutting performance.
3.Long lifespan and stable performance.
4.Segment is easy for opening.
5. Good balance assures excellent grinding effect.

Product Specification:

Diameter (mm)	Steel Core (mm)	Segment Size	Segment Number
Φ300	2.2	40×3.2×10	22
Φ350	2.4	40×3.4×10	25
Φ400	2.6	40×3.6×10	29
Φ450	2.8/3.0	40×4.0×10	32
Φ500	3.0/3.2	40×4.2×10	36
Φ600	3.6/3.8	40×4.8×10	42
Φ700	4	40×5.2×10	42
Φ800	4.5	40×6.0×10	46/57
Φ900	5	24×7.5×8(10,12)	64
Φ1000	5	24×7.5×8(10,12)	70
Φ1200	5.5	24×8.5×8(10,12)	80
Φ1300	6	24×8.5×8(10,12)	88
Φ1400	6.5	24×9.0×8(10,12)	92
Φ1600	7.2	24×9.5×8(10,12)	108
Φ1800	7.5	24×10.0×8(10,12)	120
Φ2000	8	24×10.5×8(10,12)	128
Φ2200	9	24×11.0×8(10,12)	132
Φ2500	9	24×11.0×8(10,12)	140
Φ3000	9.5	24×12.0×8(10,12)	160

Other specifications are available upon request. Long Lifespan Diamond Saw Blade for Precise Cutting of Lavastone 0
