Stone Cutting Tools Indexable Milling Cutter for CNC Lathe Machine and Engine Lathe

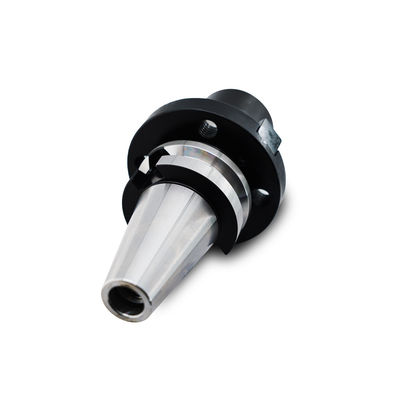

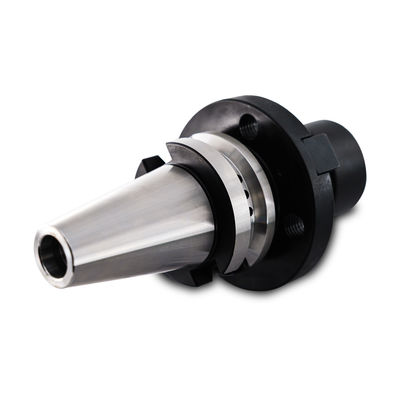

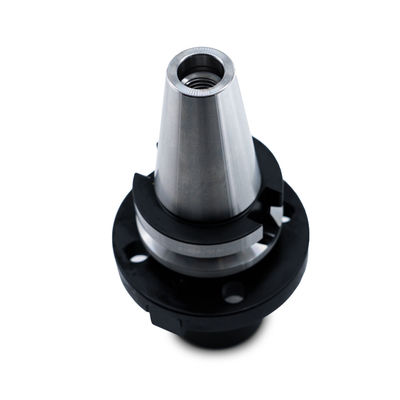

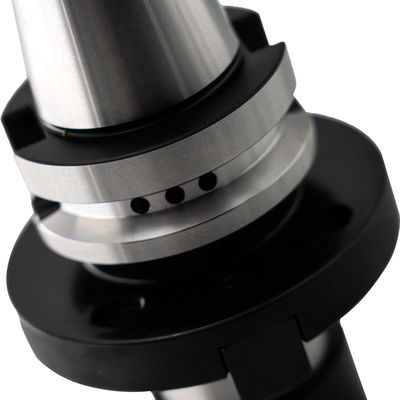

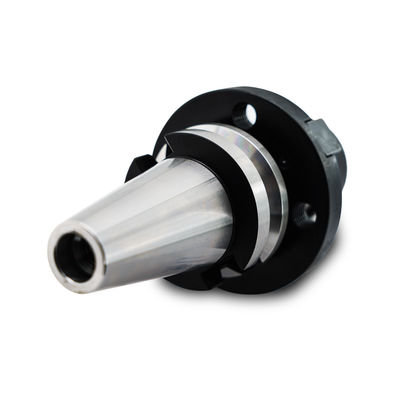

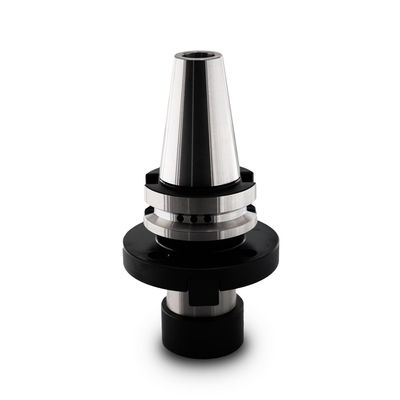

Large Image : Stone Cutting Tools Indexable Milling Cutter for CNC Lathe Machine and Engine Lathe

Product Details:

Place of Origin:	Jiangxi, China
Brand Name:	LINSING
Model Number:	CNC Mill Holder

Payment & Shipping Terms:

Minimum Order Quantity:	36 pieces
Price:	$22.00/pieces 36-999 pieces
Packaging Details:	Plastic+Carton
Supply Ability:	5000 Piece/Pieces per Month

Contact Now

Stone Cutting Tools Indexable Milling Cutter for CNC Lathe Machine and Engine Lathe

Description

Customized Support:	OEM, ODM, OBM	Material:	HIGH SPEED STEEL, Steel
Coating:	No	Product Name:	CNC Mill Holder
Application:	For CNC Lathe Machine	Machine:	CNC Mill Machine
Model:	BT30-BT50	Customized:	Provide Customized Service
Hardness:	HRC46-48	Applicable Industries:	Manufacturing Plant, Machinery Repair Shops, Other
Advantage:	Wear Resistance	Grade:	A

CNC Mill Holder

The body is made of high-quality material,it has high heat strength and oxygen resistance and good comprehensive mechanical properties. It is fully carburized and heat treated, with in-ternal and external diameter grinding, strong wear resistance, and stable quality.

Product Features:
1: Can be used on CNC lathe machine and engine lathe.
2: Made in high quality alloy; Super long tool life.
3: Precise dimensions, high accuracy and repeated accuracy.
4: Customized tool design, marking, packing are available.
Product Specifications:

Model	L1 (MM)	L2 (MM)	D (MM)	d1 (MM)	K1 (MM)	K2 (MM)	WEIGHT (MM)
BT30*FMB16-45	45	16	38	16	4.8	8	0.85
BT30*FMB22-45	45	18	48	22	4.8	10	0.85
BT30*FMB27-45	45	20	60	27	5.8	12	1.20
BT30*FMB27-60	60	20	60	27	5.8	12	1.35
BT30*FMB27-100	100	20	60	27	5.8	12	1.35
BT30*FMB32-45	45	22	62	32	6.8	14	1.35
BT40*FMB22-45	45	16	48	22	4.8	10	1.45
BT40*FMB22-60	60	18	45	22	4.8	10	1.70
BT40*FMB22-100	100	18	48	22	4.8	10	2.20
BT40*FMB27-45	45	20	60	27	5.8	12	1.60
BT40*FMB27-60	60	20	60	27	5.8	12	2.00
BT40*FMB27-90	90	20	60	27	5.8	12	2.30
BT50*FMB22-45	45	18	48	22	4.8	10	4.50
BT50*FMB22-100	100	18	48	22	4.8	10	5.10
BT50*FMB27-60	60	20	60	27	5.8	12	7.00
BT50*FMB27-100	100	20	60	27	5.8	12	8.00

Other specifications are available upon request. Stone Cutting Tools Indexable Milling Cutter for CNC Lathe Machine and Engine Lathe 0
