Home ProductsDiamond Cutting Segment

Linsing Sandstone Stone Cutting Tools Segment Tips Cutter Blade Segment 40*5*15mm

Certification
China Jiangxi Linxing Diamond Tools Co., Ltd. certification
I'm Online Chat Now

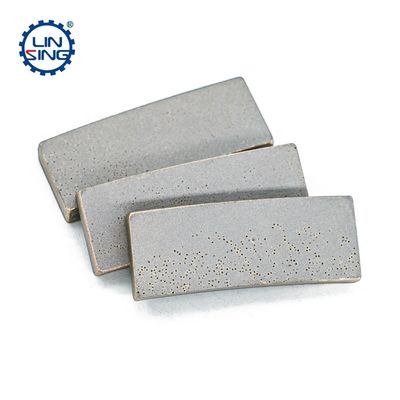

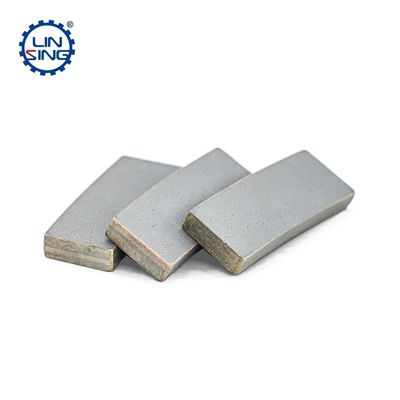

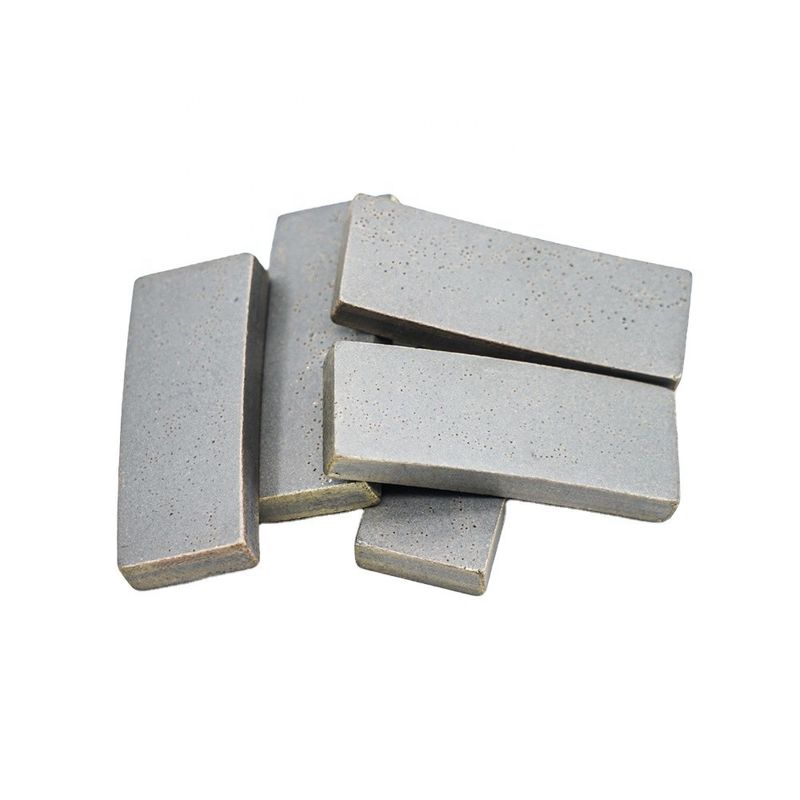

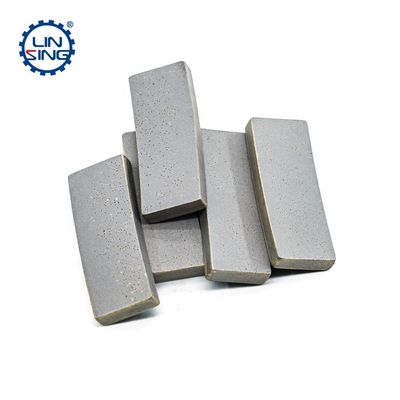

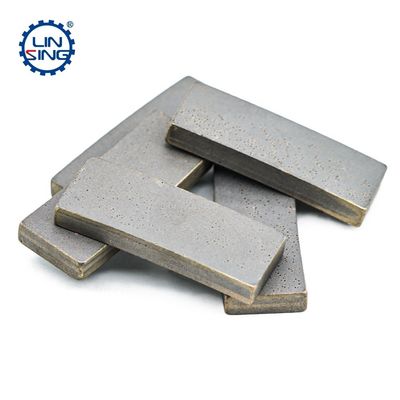

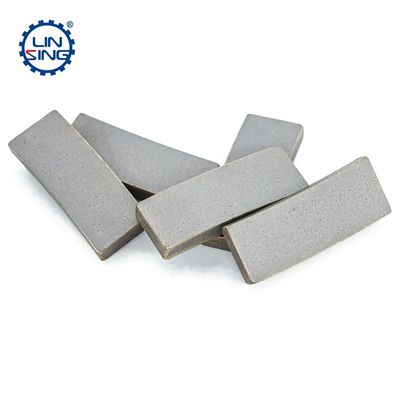

Linsing Sandstone Stone Cutting Tools Segment Tips Cutter Blade Segment 40*5*15mm

Linsing Sandstone Stone Cutting Tools Segment Tips Cutter Blade Segment 40*5*15mm
Linsing Sandstone Stone Cutting Tools Segment Tips Cutter Blade Segment 40*5*15mm Linsing Sandstone Stone Cutting Tools Segment Tips Cutter Blade Segment 40*5*15mm Linsing Sandstone Stone Cutting Tools Segment Tips Cutter Blade Segment 40*5*15mm Linsing Sandstone Stone Cutting Tools Segment Tips Cutter Blade Segment 40*5*15mm Linsing Sandstone Stone Cutting Tools Segment Tips Cutter Blade Segment 40*5*15mm Linsing Sandstone Stone Cutting Tools Segment Tips Cutter Blade Segment 40*5*15mm

Large Image :  Linsing Sandstone Stone Cutting Tools Segment Tips Cutter Blade Segment 40*5*15mm

Product Details:
Place of Origin: Jiangxi, China
Brand Name: Linsing
Model Number: S85712
Payment & Shipping Terms:
Minimum Order Quantity: 150 pieces
Price: $0.65/pieces >=150 pieces
Packaging Details: Per container include 100 meters Packed by Plastic paper Box, Container by board With LINXING LOGO Carton, etc.
Supply Ability: 50000 Piece/Pieces per Week High Quality Diamond Segment

Linsing Sandstone Stone Cutting Tools Segment Tips Cutter Blade Segment 40*5*15mm

Description
Customized Support: OEM, ODM, OBM Specification: 40*5*15mm
Material: High Grade Diamond+metal Powder+cooper Powder MOQ: 150pcs
Machine: 600mm Single Blade Machine Advantage: Sharpness And Long Life
Packing: Carton Box Grade: Good Quality
Brand: Linsing Application: Sandstone Cutting
Shape: Arc Shape Port: Shanghai, Shenzhen, Ningbo, Xiamen, Etc

Diamond segments for sandstone block & slab cutting

Sandstone segment is used for cutting sandstone, . The sandstone material is soft and easy to break the slab edge. Therefore, the sharpness requirements are very high. The sandstone segment produced by Linsing diamond segments is extremely acceptable, and our products can easily cut the Australian and Indian sandstone. Not only that, in terms of price and style, K-shape and M-shape segments also have strong cutting performance for special sandstones.

Linsing diamond segments features:

1. The segments has good sharpness and high efficiency at the process of cutting, meanwhile, it has a long lifespan.
2. Good cutting result: Smooth cutting, flat surface and even size.
3. Stable cutting, narrow cutting gap, stone waste reduction.
4. M-shape segment is easy for diamond opening.

Among the natural stones, there is a kind of stone called sandstone. It is natural sand and gravel and stone powder that pass through the water and continuously precipitate to form a stable structure. Later, through the movement of the earth’s crust, the river is called a mountain range, which forms the sandstone we see now Because it has been in water for a long time during the formation process, the sandstone composition also contains iron oxide, clay and other ingredients. Of course, most of it is still gravel. The biggest advantage of this material is that it is not afraid of water, so it is widely used for exterior walls and decorations. Walls, outdoor floors, stone carvings, etc.

Diamond segments for 300-800mm saw blade:

Diameter Diameter Core Thickness (mm)       No. of Teeth
mm inch   Length Thickness Height
300 12″ 2.0/2.2 40 2.8/3.0 8/10/12/15 21
350 14″ 2.2/2.4 40 3.0/3.2 8/10/12/15 24
400 16″ 2.6/2.8 40 3.4/3.6 8/10/12/15 28
450 18″ 2.8/3.0 40 4.0/4.2 8/10/12/15 32
500 20″ 2.8/3.0 40 4.0/4.2 8/10/12/15 36
600 24″ 3.6 40 4.6 8/10/12/15 42
700 28″ 4 40 5.2 8/10/12/15 42
800 32″ 4.5 40 6 8/10/12/15 46/57



Diamond segments for 900-3500mm single/multi diamond blades:

Diameter Diameter Core Thickness (mm)       No. of Teeth
mm inch   Length Thickness Height
900 36″ 5 22/24 6.0/6.6 12/13/15 64
1000 40″ 5.5 22/24 6.4/7.0 12/13/15 70
1200 48″ 6 22/24 7.4/8.0 12/13/15 80
1400 55″ 6.5 22/24 7.8/8.4 12/13/15 92
1600 64″ 7.2 22/24 8.4/9.0 12/13/15 108
1800 72″ 8 22/24 9.2/9.8 12/13/15/20 120
2000 80″ 8 22/24 9.5/10.5 12/13/15/20 128
2200 88″ 9 22/24 10.5/11.5 12/13/15/20 132
2500 110″ 9 22/24 11.5/12.5 12/13/15/20 140
3000 120″ 10 22/24 12.5/13.5 12/13/15/20 160
3500 140″ 10 22/24 13.5/14.5 12/13/15/20 180



Product Description

Linsing Sandstone Stone Cutting Tools Segment Tips Cutter Blade Segment 40*5*15mm 0

Linsing Sandstone Stone Cutting Tools Segment Tips Cutter Blade Segment 40*5*15mm 1



Linsing Sandstone Stone Cutting Tools Segment Tips Cutter Blade Segment 40*5*15mm 2

Linsing Sandstone Stone Cutting Tools Segment Tips Cutter Blade Segment 40*5*15mm 3

Packaging & Shipping

 Linsing Sandstone Stone Cutting Tools Segment Tips Cutter Blade Segment 40*5*15mm 4Linsing Sandstone Stone Cutting Tools Segment Tips Cutter Blade Segment 40*5*15mm 5

Linxing products

Linsing Sandstone Stone Cutting Tools Segment Tips Cutter Blade Segment 40*5*15mm 6Linsing Sandstone Stone Cutting Tools Segment Tips Cutter Blade Segment 40*5*15mm 7
