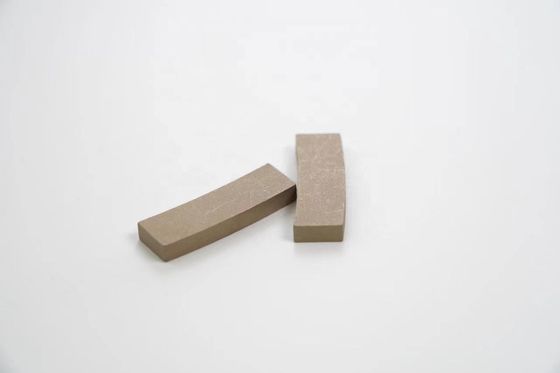

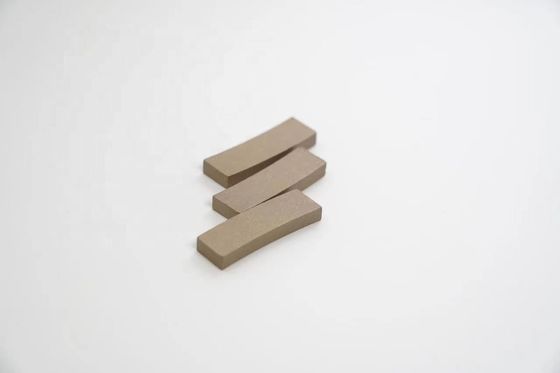

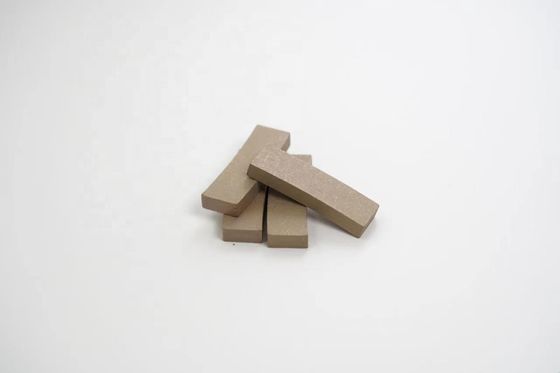

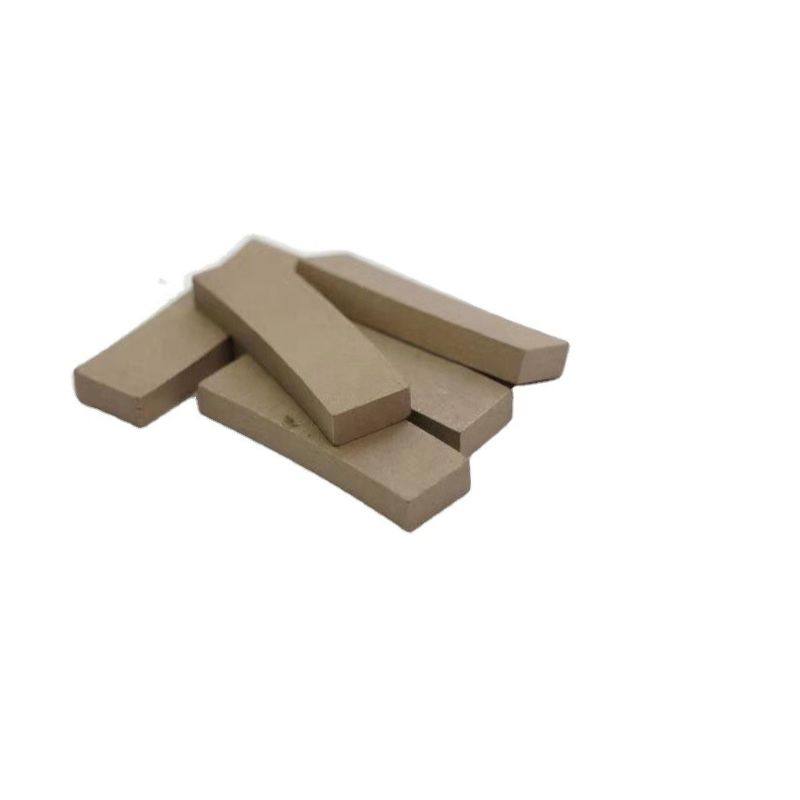

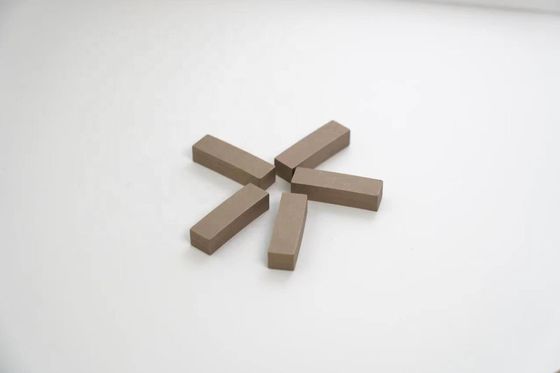

450mm Single Blade Diamond Cutter Saw Marble Cutting Segments with Copper Powder

Large Image : 450mm Single Blade Diamond Cutter Saw Marble Cutting Segments with Copper Powder

Product Details:

Place of Origin:	Jiangxi, China
Brand Name:	Linsing
Model Number:	Diamond Segment for stone

Payment & Shipping Terms:

Minimum Order Quantity:	150 pieces
Price:	$0.66/pieces >=150 pieces
Packaging Details:	Diamond Cutting Segment Packed by Plastic Box, LINXING LOGO Carton, etc.
Supply Ability:	10000 Piece/Pieces per Day Diamond cutting segment

Contact Now

450mm Single Blade Diamond Cutter Saw Marble Cutting Segments with Copper Powder

Description

Warranty:	None	Customized Support:	OEM, ODM, OBM
Product Name:	Diamond Segment For Marble	Keywords:	Marble Cutting Segments
Application:	Marble Cutting&Grinding&Squaring	Usage:	Wet Cutting
Material:	Diamond + Copper Powder	Size:	Customer's Requirement
Shape:	ARC Shape	Advantage:	High Efficiency And Long Lifespan
OEM:	Accpetable	Website:	Https://www.linxingstone.com
Port:	Shanghai, Shenzhen, Ningbo, Xiamen, Etc

Product Description

Diamond segments for granite block cutting:

Features:

It works in low noise, pollution and small cutting slot which ensures maximum use of stone and uniform thickness. Good cutting result. Fast cutting and long fife.

Diamond segments consist of small-size diamonds and metal bond materials, the metal bond materials may include the powders of Cu, Sn, Fe, Ag, Co, Ni, WC, Mo, etc.
Different bonds are for different applications & uniform size,Fast cutting speed without chipping.
In pace of the development of stone industry, Quanzhou adopts measures suiting local conditions and has developed a group of exceptional strength diamond tools supplier who are good at diamond saw blades and diamond segments for cutting stone.
There is no chipes if you use our segment to cut.

Forms:

M shape, K shape, Taper shape, Flat shape, T shape, U shape, etc.

Our LINXING diamond segments' advantage:

1. High percent of bond materials.
2. High grade of diamonds.
3. Over 15 years experence with hundreds of formula against different stones.
4. Good sharpness, stable performance, long lifespan.
5. Strict quality control.
6. Keep 40-50 precent market share in China, Already acquired the customers' approval.

Applications:

Cutting Granite, Marble, Basalt, Volcanic, Lava Stone, Andesite, Travertine, Limestone, Sandstone, Quartz, Artificial Stone, Microcrystal Stone, Concrete, Ceramic Tile etc.

Specification:

Diamond segments for block cutting:

Blade Diameter	Blade thickness	Segment Dimension			number
900mm	5.0/5.5	24	6.2/7.0	15/20/30	64
1000mm	5.0/5.5	24	6.2/7.0	15/20/30	70
1200mm	5.5/6.0	24	6.6/7.4	15/20/30	80
1350mm	6.5	24	7.6/8.4	15/20/30	88
1600mm	7	24	8.4/9.2	15/20/30	104/108
1800mm	8	24	9.0/9.8	15/20/30	120
2000mm	8.5	24	9.8/10.6	15/20/30	128
2200mm	9	24	10.2/11	15/20/30	132
2500mm	9	24	10.6/11.4	15/20/30	140
3000mm	9.5	24	11.6/12.4	15/20/30	160
3500mm	9.5	24	12.6/13.6	15/20/30	180

Diamond segments for edge and small block cutting:

Diamond segments for 300-800mm diamond saw blade
Diameter		Core Thickness (mm)	Segment Dimension (mm)			No. of Teeth
mm	inch	Core Thickness (mm)	Length	Thickness	Height	No. of Teeth
300	12"	2.0/2.2	40	2.8/3.0	8/10/12/15	21
350	14"	2.2/2.4	40	3.0/3.2	8/10/12/15	24
400	16"	2.6/2.8	40	3.4/3.6	8/10/12/15	28
450	18"	2.8/3.0	40	4.0/4.2	8/10/12/15	32
500	20"	2.8/3.0	40	4.0/4.2	8/10/12/15	36
600	24"	3.6	40	4.6	8/10/12	42
700	28"	4	40	5.2	8/10/12	42
800	32"	4.5	40	6.0	8/10/12	46/57
Diamond segments for 900-3500mm single/multi blades
Diameter		Core Thickness (mm)	Segment Dimension (mm)			No. of Teeth
mm	inch	Core Thickness (mm)	Length	Thickness	Height	No. of Teeth
900	36"	5	22/24	6.0/6.6	12/13/15	64
1000	40"	5.5	22/24	6.4/7.0	12/13/15	70
1200	48"	6	22/24	7.4/8.0	12/13/15	80
1400	55"	6.5	22/24	7.8/8.4	12/13/15	92
1600	64"	7.2	22/24	8.4/9.0	12/13/15	108
1800	72"	8	22/24	9.2/9.8	12/13/15/20	120
2000	80"	8	22/24	9.5/10.5	12/13/15/20	128
2200	88"	9	22/24	10.5/11.5	12/13/15/20	132
2500	110"	9	22/24	11.5/12.5	12/13/15/20	140
3000	120"	10	22/24	12.5/13.5	12/13/15/20	160
3500	140"	10	22/24	13.5/14.5	12/13/15/20	180

Diamond segments for gangsaw:

Product name	Steel Blank Thickness(mm)	Head size(mm)	No.	Shape	application
Linxing Gang Saw Segment	5.0	20×4.6/4.0×8(10)	25-32	Z1T	Marble Limestone And other Soft stone
	3.0	20×5.0/4.4×8(10)	25-32
	3.5	20×5.4/4.8×8(10)	25-32

Diamond segments for quarrying

Specification	Blade thickness	Segment Dimension			number
2200mm	9.5/10.0	22/24	13.1/13.9	15/20	132
2400mm	9.5/10.0	22/24	13.1/13.9	15/20	136
3300mm	9.5/10.0	22/24	11.6/12.4	15/20	170
360mm	9.5/10.0	22/24	11.6/12.4	15/20	180
