Hot Diamond Segment For Soft Granite With Narrow Cutting Gap And Stone Waste Reduction

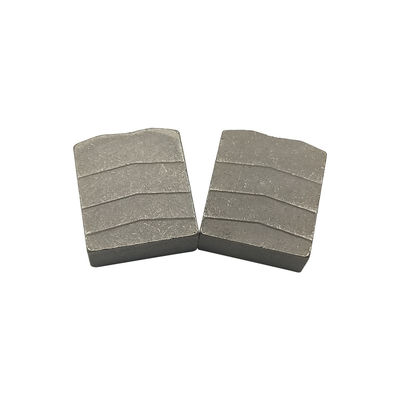

Large Image : Hot Diamond Segment For Soft Granite With Narrow Cutting Gap And Stone Waste Reduction

Product Details:

Place of Origin:	Jiangxi, China
Brand Name:	Linxing
Certification:	TUV & CE & ISO9001
Model Number:	2412.8/11.625mm

Payment & Shipping Terms:

Minimum Order Quantity:	50 pieces
Price:	$0.63 - $0.90/pieces
Packaging Details:	The inner packaging is a plastic film, the outer packaging is a paper box, and the outermost packaging is a wooden box or a wooden frame.
Supply Ability:	100000 Piece/Pieces per Day

Contact Now

Hot Diamond Segment For Soft Granite With Narrow Cutting Gap And Stone Waste Reduction

Description

Warranty:	None	Customized Support:	OEM, ODM, OBM
Product Name:	Granite Segment	Advantage:	Fast Diamond Exposed &long Life Span
Material:	Diamond&Metal Powder	Packing:	Inner Box&outside Carton
Feature:	Narrow Cutting Gap&stone Waste Reduction	Type:	M Type
Shape:	M Shape	Usage:	Granite&Quartz&Basalt Quarrying&cutting
Payment:	Alipay &Visa& L/C Etc.

Jiangxi Linxing Diamond Tools Co.,Ltd.

Add: Pharmaceutical and Chemical Industry Zone, Tianfanjie, Poyang, Shangrao, Jiangxi Province, China 333105

Contact:Volta

whatsApp: (0086)18907092847

wechat:(0086)18907092847

If you are interested in our diamond tools, pls be free to contact us.

we will reply to you within 24 hours, sincerely hope to be your long-term partner in stone industry.

Product Features:
1. Good sharpness and high efficiency without chipping.
2. Strict QC for stable cutting performance.
3. Long life span with high cost-effective.
4. Segment is easy for opening.

Product Specification:

Blade Diameter(inch/mm)	Steel Core Thickness(mm)	Segment Specification(mm)	Segment No.(pcs)
Φ12”/300	2.2	40x3.2x10(12,15, 20)	21
Φ14”/350	2.2/2.4	40x3.2x10(12,15, 20)	24
Φ16”/400	2.6	40x3.6x10(12,15, 20)	28
Φ18”/450	2.8/3.0	40x4x10(12,15, 20)	32
Φ20”/500	3.0/3.2	40x4.2x10(12,15, 20)	36
Φ24”/600	3.6/3.8	40x5x10(12,15, 20)	42
Φ28”/700	4	40x5.2x10(12,15, 20)	50
Φ32”/800	4.5	40x6x10(12,15, 20)	46
Φ36”/900	5.0	24x7.0/6.2x15(13,20)	64
Φ40”/1000	5.0	24x7.0/6.2x15(13,20)	70
Φ48”/1200	5.5	24x7.4/6.6x15(13,20)	80
Φ52”/1300	6.0	24x8.0/7.2x15(13,20)	88
Φ56”/1400	6.5	24x8.4/7.6x15(13,20)	92
Φ64”/1600	7.2	24x9.2/8.4x15(13,20)	108
Φ72”/1800	7.5	24x10.0/9.2x15(13,20)	120
Φ80”/2000	8.0	24x10.6/9.8x15(13,20)	128
Φ88”/2200	8.0/9.0	24x11.0/10.2x15(13,20)	132
Φ100”/2500	9.0	24x11.4/10.6x15(13,20)	140
Φ120”/3000	9.5	24x12.4/11.6x15(13,20)	160
Φ140”/3500	9.5	24x12.4/11.6x15(13,20)	180

Other specifications are available upon request.
