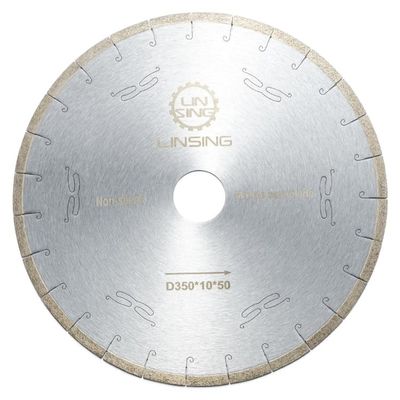

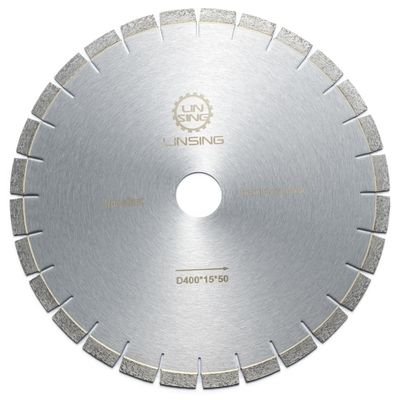

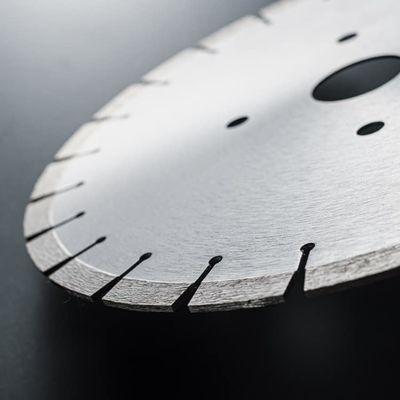

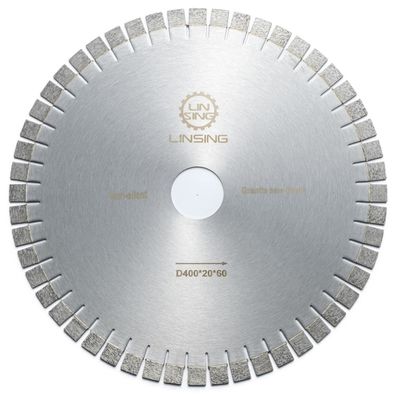

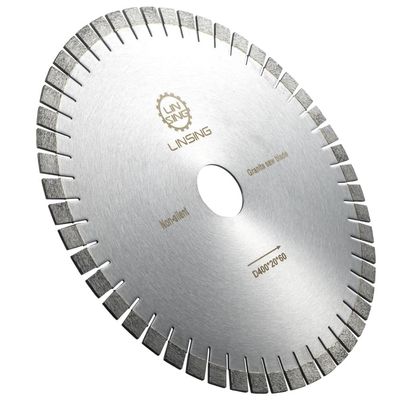

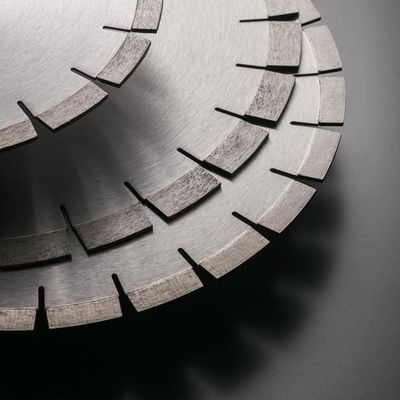

Diamond and Alloy Steel Porcelain Blade 14 16 Inch Cutting Discs for Fast Cutting Speed

Diamond and Alloy Steel Porcelain Blade 14 16 Inch Cutting Discs for Fast Cutting Speed
Diamond and Alloy Steel Porcelain Blade 14 16 Inch Cutting Discs for Fast Cutting Speed Diamond and Alloy Steel Porcelain Blade 14 16 Inch Cutting Discs for Fast Cutting Speed Diamond and Alloy Steel Porcelain Blade 14 16 Inch Cutting Discs for Fast Cutting Speed Diamond and Alloy Steel Porcelain Blade 14 16 Inch Cutting Discs for Fast Cutting Speed Diamond and Alloy Steel Porcelain Blade 14 16 Inch Cutting Discs for Fast Cutting Speed Diamond and Alloy Steel Porcelain Blade 14 16 Inch Cutting Discs for Fast Cutting Speed

Large Image :  Diamond and Alloy Steel Porcelain Blade 14 16 Inch Cutting Discs for Fast Cutting Speed

Product Details:
Place of Origin: Jiangxi, China
Brand Name: LINSING
Model Number: D400*10*50mm
Payment & Shipping Terms:
Minimum Order Quantity: 20 pieces
Price: $25.00/pieces 20-49 pieces
Packaging Details: Can be customized.
Supply Ability: 1000 Piece/Pieces per Week
Contact Now

Diamond and Alloy Steel Porcelain Blade 14 16 Inch Cutting Discs for Fast Cutting Speed

Description
Warranty: 3 Years Blade Thickness: 0.014in, 0.032in, 0.05in, 0.02in, 0.035in, 0.018in, 0.042in, 0.025in
Blade Width: 1 1/2IN, 3/4IN, 1/2in, 1 1/4IN, 5/8in, 3/8in, 1/8IN, 1/4in, 1in, 3/16in, Other Arbor Size: 7/8IN, 10mm, 5/8in
Teeth Per Inch: 10, 24 Teeths: 140, 144
Blade Length: 6in, 6 1/2in, 10in Blade Diameter: 18in, 12in
Edge Height: 0.315in(8mm), 0.472in(12mm) Process Type: HOT PRESS, High Frequency Welded, Laser Welded, Cold PRESS
Customized Support: OEM, ODM, OBM Finishing: Ti-coated
Size: D350/400/450mm Grade: Industrial
Segment Height: 7/10/12mm Technology: Silver Brazed
Advantage: High Quality Cutting Result Transport Package: Plastic Bag + Paper Box + Bubble Wrap + Carton Box
Specification: Diameter: 350~3000mm Material: Diamond +Alloy Steel
Quality: European Quality Approved Blade: 250mm
Origin: Shangrao Province, China Feature: Long Lifespan And Fast Cutting Speed
Port: Shanghai

Diamond Horizontal Blade For Marble

Horizontal cutting diamond saw blade is a tool used for horizontal and vertical stone cutting machine It is mainly used to cut marble in the horizontal direction.


Product feature:
1. Good in sharpness and efficiency with a long lifespan.
2. Fast cutting and refine edge cutting quality.
3.Excellent comprehensive cutting performance.


Product specification:

Blade

Diameter

(inch/mm)

Steel Core Thickness

(mm)

Segment Specification For Granite(mm)

Segment Specification For Marble(mm)

Segment No.(pcs)

Φ14”/350

7.5/3.0

40×4.4×10(15)

40×4.6×10

21

Φ16”/400

7.5/3.0

40×4.4×10(15)

40×4.6×10

24

Φ18”/450

7.5/3.0

40×4.4×10(15)

40×4.6×10

26

Φ20”/500

7.5/3.5

40×5.0×10(15)

40×5.5×10

30

Φ22”/550

4.0

40×6.0×10(15)

40×6.0×10

32

Φ24”/600

4.0

40×6.0×10(15)

40×6.0×10

36

Φ26”/650

4.0/4.5

40×6.0×10(15)

40×6.0×10

40

Other specifications are available upon request.
