Vacuum Brazed Diamond Saw Blade for Wood and Marble Cutting Sheet Metal Cutting Tools

Large Image : Vacuum Brazed Diamond Saw Blade for Wood and Marble Cutting Sheet Metal Cutting Tools

Product Details:

Place of Origin:	Jiangxi, China
Brand Name:	Linsing
Certification:	TUV
Model Number:	Vacuum Brazed Diamond Saw Blade

Payment & Shipping Terms:

Minimum Order Quantity:	20 pieces
Price:	$8.00/pieces 20-99 pieces
Packaging Details:	Carton
Supply Ability:	1000 Piece/Pieces per Day

Contact Now

Vacuum Brazed Diamond Saw Blade for Wood and Marble Cutting Sheet Metal Cutting Tools

Description

Warranty:	None	Blade Thickness:	1.2mm
Blade Width:	Other	Arbor Size:	7/8IN, 10mm, 5/8in
Teeth Per Inch:	10	Teeths:	44T
Blade Length:	6in, 6 1/2in, 10in	Blade Diameter:	230mm
Edge Height:	0.315in(8mm), 0.472in(12mm)	Process Type:	Vacuum Brazed
Customized Support:	OEM, ODM, OBM	Finishing:	Ti-coated
Size:	D110mm, D110mm	Grade:	Industrial
Product Name:	Vacuum Brazed Diamond Saw Blade	Material:	Diamond Powder+Alloy Steel
Application:	For Cutting Steel Sections, Sheet Metal,etc	Color:	Customized Color
Feature:	Fast Cutting Speed	Type:	Vacuum Brazing
Shape:	Segmented, Continuous,etc	Package:	Carton Box
Port:	Shanghai, Shenzhen, Ningbo, Xiamen, Etc

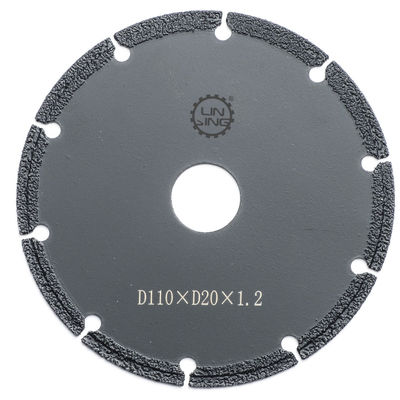

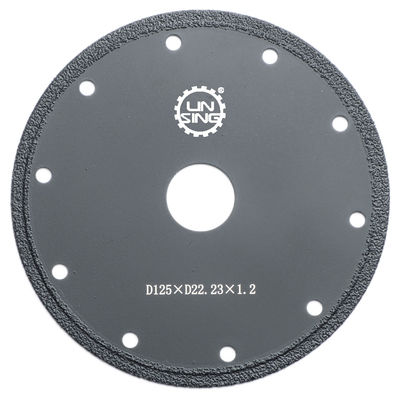

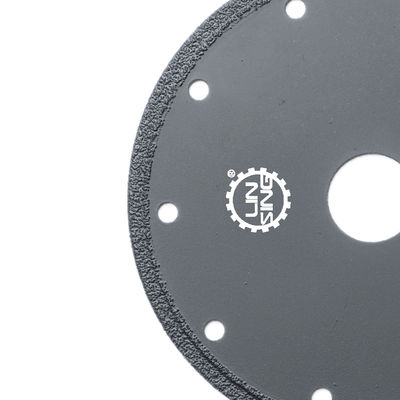

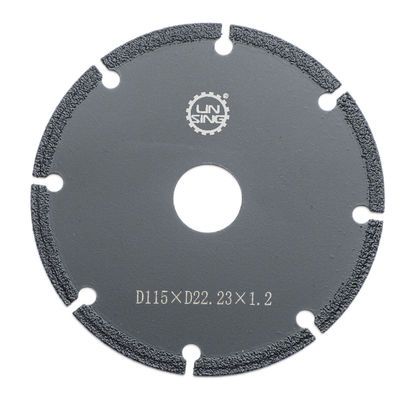

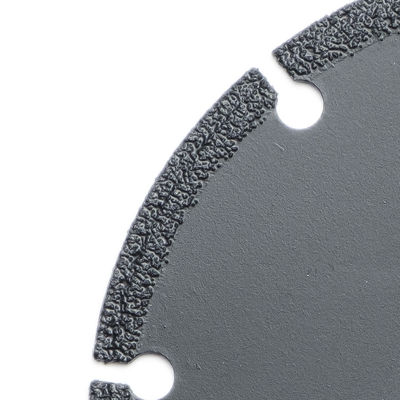

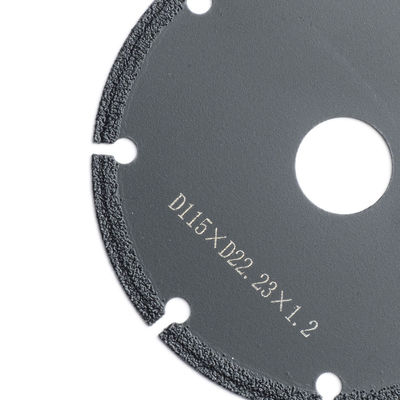

Vacuum Brazed Diamond Saw Blade

Vacuum Brazing diamond multifunction saw blade is a vacuum brazed diamond blade that is suitable for cutting a wide range of materials such as wood, plastic, steel sections, sheet metal, aluminium, copper, rubber, cast iron, bricks, blocks, regular building materials and cement based fibre board.

Product Feature:
1. Fast cutting speed than sintered blade and longer life than electroplated blade;
2. It can be used for general purpose cutting such as stone, brick, concrete, fiberglass, aluminum, PVC, woods, rebar and other steel products;
3. Both dry and wet cutting are available.
Product Specification:

Diameter (inch/mm)	Steel Core Thickness (mm)	Grit(#)	Born(mm)
Φ4.5”/115	1.2	30-60#	20/22.23/25.4
Φ5”/125	1.2	30-60#	20/22.23/25.4
Φ6”/150	1.4	30-60#	20/22.23/25.4
Φ7”/180	1.6	30-60#	20/22.23/25.4
Φ9”/230	1.8	30-60#	20/22.23/25.4

Other specifications are available upon request. Vacuum Brazed Diamond Saw Blade for Wood and Marble Cutting Sheet Metal Cutting Tools 0

Contact Details

Jiangxi Linxing Diamond Tools Co., Ltd.

Contact Person: Mr. info

Tel: +8615216016969
