Diamond Core Drill Bits Crown Segment Sintered Diamond Drill M14 For Stone Drilling

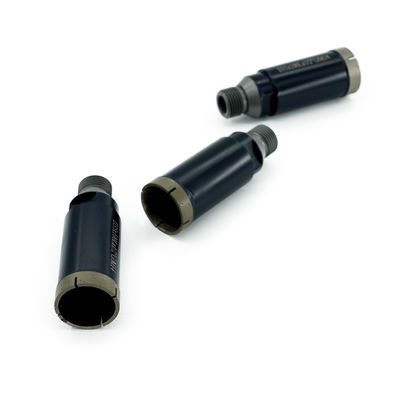

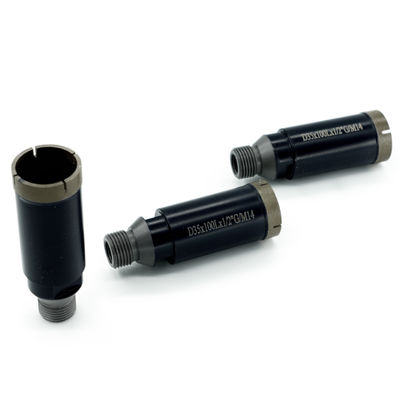

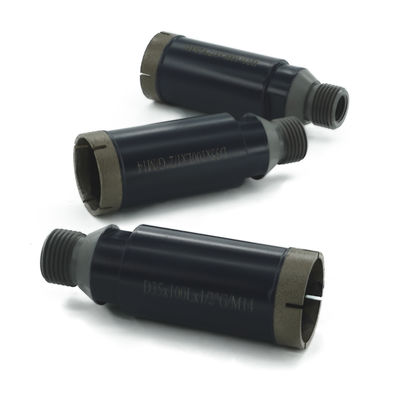

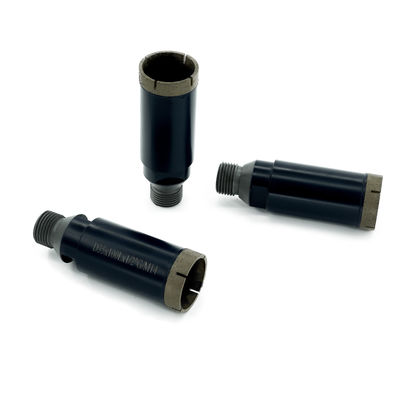

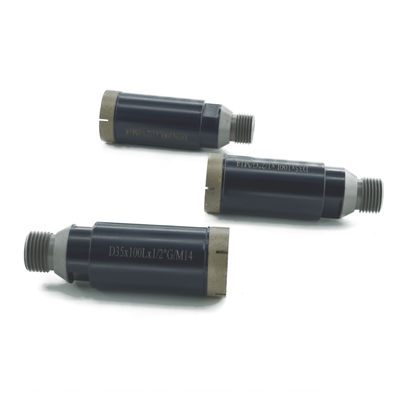

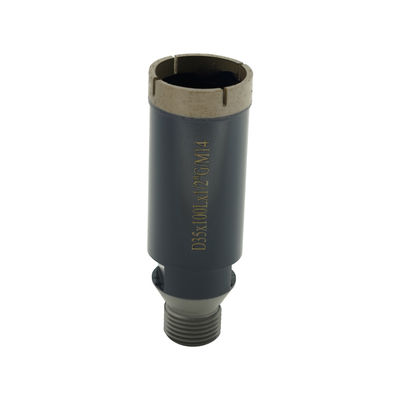

Large Image : Diamond Core Drill Bits Crown Segment Sintered Diamond Drill M14 For Stone Drilling

Product Details:

Place of Origin:	Jiangxi, China
Brand Name:	LINSING
Certification:	TUV
Model Number:	Diamond Core Drill Bit

Payment & Shipping Terms:

Minimum Order Quantity:	10 pieces
Price:	$15.00/pieces 10-99 pieces

Contact Now

Diamond Core Drill Bits Crown Segment Sintered Diamond Drill M14 For Stone Drilling

Description

Customized Support:	OEM, ODM, OBM	Type:	Core Drill Bit
Use:	For Stone Drilling	Finish:	Other
Product Name:	Diamond Core Drill Bit	Application:	For Stone Drilling
Material:	Diamond+Metal Bond	Color:	Customized Color
Process:	Sintered	Advantage:	High-efficiency
Diameter:	19-125mm	Brand:	LINSING
Feature:	High Performance Drill Cutter Tool

Diamond Core Drill Bit

Diamond core drill bits use super grade diamond, with high drilling efficiency. They are commonly used for drilling hard materials such as stone, ceramic tile, reinforced concrete and so on.

Product Features:
1. High efficiency, long life and no breaking of segments;
2. Sizes of adaptor: Dia.6, 8, 10mm shank, M14, M16, G1/2 ", 5/8 "-11;
3. Suitable for wet or dry use.

Product Specifications:

Diameter (mm)	Usable Length(mm)	Suggested R.P.M	Feed Speed (mm/min)
19-22	47	3000-3500	70-90
25	60	3000-3500	70-90
30-32	60	3000-3500	70-90
35-40	60	2000-2800	60-80
45-50	60	2000-2800	50-60
55	60	1500-2000	40-60
60	60	1500-2000	40-60
65	60	1500-2000	40-60
70	60	1500-2000	40-60
75-85	60	1500-2000	40-60
90	60	1500-2000	40-60
95-100	60	1000-1500	25-45
125	60	1000-1500	25-45

Other specifications are available upon request. Diamond Core Drill Bits Crown Segment Sintered Diamond Drill M14 For Stone Drilling 0
