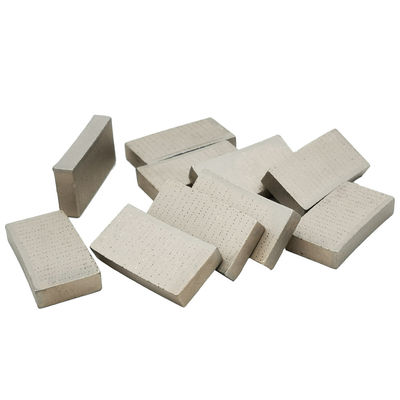

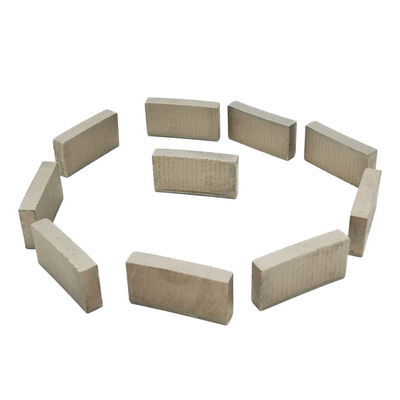

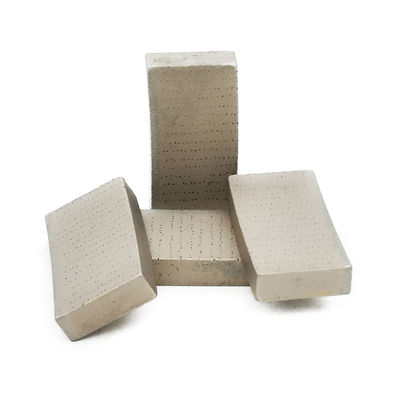

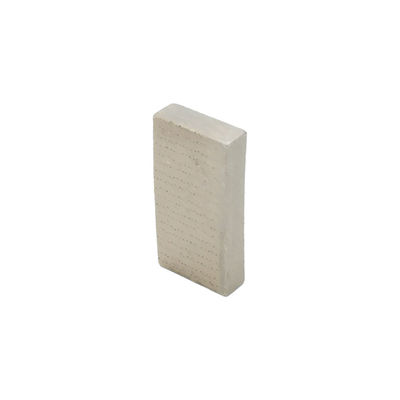

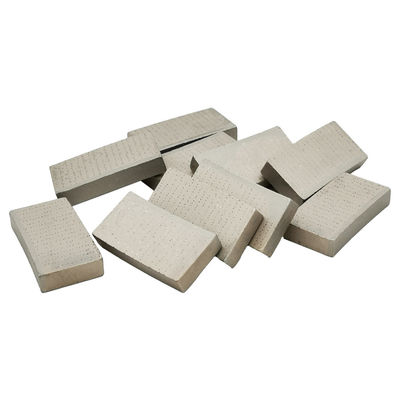

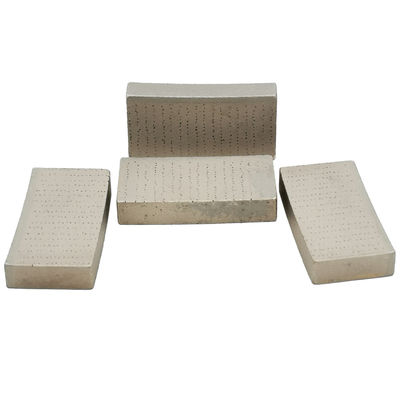

Roof Top Arix Diamond Segment and Saw Blade for Granite Slab Tile Cutting Grade A-Grade

Large Image : Roof Top Arix Diamond Segment and Saw Blade for Granite Slab Tile Cutting Grade A-Grade

Product Details:

Place of Origin:	Jiangxi, China
Brand Name:	LINSING
Certification:	TUV
Model Number:	Quarring segment

Payment & Shipping Terms:

Minimum Order Quantity:	10 pieces
Price:	$32.50/pieces 10-99 pieces
Packaging Details:	Plastic+Carton
Supply Ability:	1000 Piece/Pieces per Day

Contact Now

Roof Top Arix Diamond Segment and Saw Blade for Granite Slab Tile Cutting Grade A-Grade

Description

Warranty:	None	Customized Support:	OEM, ODM, OBM
Product Name:	Arrayed Segment	Application:	Granite Cutting
Material:	Diamond + Metal Powder	Usage:	Wet Cutting
Feature:	High Performance Cutting	Advantage:	Wear Resistant Superior
Grade:	A-Grade	Shape:	U, Fan Shape
Length:	40/43mm

Arix Diamond Circular Saw Blade

Arix saw blade(arrayed saw blade) is a high-quality sawing product with high sharpness and long service life, which is specially used for granite cutting. Its sharpness is about 30% higher than that of general saw blades. The incision is smooth, without edge collapse, with excellent stable cutting performance.

Product Feature:
1. Higher cutting efficiency and low energy consumption than normal blade;
2. Effectively reduce noise and protect the environment;
3. It can be widely used on various power machines;
4. Application: Granite cutting.
Product Specification:

Diameter(inch/mm)	Steel Core Thickness(mm)	Segment Specification(mm)	Segment No.(pcs)
Φ12”/300	2.2	43/40×3.2×12(15,20)	21
Φ14”/350	2.2	43/40×3.2×12(15,20)	24
Φ16”/400	2.6	43/40×3.6×12(15,20)	28
Φ18”/450	3.0	43/40×4.2×12(15,20)	32

Other specifications are available upon request.
